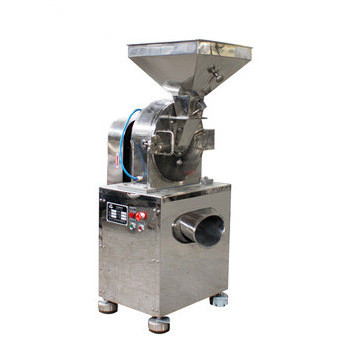

Universal food grinding machine dry fruit pulverizer vegetable grinder

Universal food grinding machine dry fruit pulverizer vegetable grinder

FOB Reference Price: Get Latest Price

≥1 Sets

US $3600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: RELA

Voltage:: 380V/Customized

Dimension(L*W*H):: 2000 * 980 *2000mm

Weight (KG):: 900 KG

Item name:: Universal food grinding machine fruit pulverizer vegetable grinder

Model:: LFJ60B food grinding machine

Material of Grinding Tool:: Stainless Steel (SS304/SS316L)

Mesh Range:: 12-120 mesh

Capacity:: 80-1200kg/h

Power(W):: 22KW

Fan powder:: 1.5KW

Control:: Electric control

Speed:: Siemens VFD

Sample:: Free test

Quick Details

Output (kg/h):: 5 - 3000 kg/h

Feeding Size (mm):: 1 - 10 mm

Output Size (mesh):: 12 - 120 mesh

Place of Origin:: Jiangsu, China

Brand Name:: RELA

Voltage:: 380V/Customized

Dimension(L*W*H):: 2000 * 980 *2000mm

Weight (KG):: 900 KG

Item name:: Universal food grinding machine fruit pulverizer vegetable grinder

Model:: LFJ60B food grinding machine

Material of Grinding Tool:: Stainless Steel (SS304/SS316L)

Mesh Range:: 12-120 mesh

Capacity:: 80-1200kg/h

Power(W):: 22KW

Fan powder:: 1.5KW

Control:: Electric control

Speed:: Siemens VFD

Sample:: Free test

Product Description

Universal food grinding machine dry fruit pulverizer vegetable grinder

This fruit vegetable food grinding machien is a multifunctional fine powder grinder . it can grind powder at 20-120 mesh . it is widely application for chemical, foodstuff industrials.

Working principle

This rice powder grinding machine are a disc with several moving tools as a rotor and serrated liners as stator. The big material being fed into the crushing chamber through a hooper, is sheared, cut, impacted into small size by the rotor and stator . The crushed product goes out automatically via a sieve and discharged from the outlet port. The super fine powder is collected by the filter pockets.

Detailed Image

Crushing chamber

Composed of stator and rotor, sheared, cut material to small size

Sieve

Stainless steel

Sieving powder

Technical Parameter

Model	LFJ- 180	LFJ- 20B	LFJ- 30B	LFJ- 40B	LFJ- 60B	LFJ- 80B	LFJ- 100B
Capacity ( kg/h)	5-30	20-150	30-300	40-800	80-1200	150-2000	300-3000
Speed ( rpm)	5500	5300	4500	3800	3000	2100	1600
Input size ( mm)	<10
Output size ( mm)	12-120
Main Power ( KW )	2.2	4	5.5	7.5	22	30	45
Fan Power ( KW )	0.37	0.55	0.55	1.1	1.5	1.5	1.5
Dimension ( mm )	L: 1000 W: 500 H :1300	L: 1100 W: 600 H :1600	L: 1300 W: 700 H :1700	L: 1400 W: 750 H :1900	L: 2000 W: 980 H :2000	L: 2200 W: 1100 H :2400	L: 2300 W: 1500 H :2600
Weight ( kg )	180	260	350	450	900	1300	1500
