Quick Details
-
Max. Welding Thickness:
-
5mm+5mm
-
Dimensions:
-
customized size
-
Use:
-
For sheet welding spot welder
-
Voltage:
-
220V/380V/415V/440V
-
Power (kW):
-
16/25/35KVA
-
Weight (KG):
-
60 KG
-
Product Name:
-
Single Phase Resistance Spot Welder Foot Operated Spot Welding Machine
-
Machine type:
-
Pedal Welding Machine
-
Application:
-
resistance spot welding machine
-
MOQ:
-
1 Set
-
Weight:
-
60~120Kg
-
Function:
-
spot welder
-
After Warranty Service:
-
Video technical support, Online support and Spare parts
-
Local Service Location:
-
Brazil, Indonesia, Pakistan, India, Thailand
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
-
Certification:
-
CCC,ISO,CE
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
XINWEI
-
Rated Duty Cycle:
-
50%
-
Max. Welding Thickness:
-
5mm+5mm
-
Dimensions:
-
customized size
-
Use:
-
For sheet welding spot welder
-
Voltage:
-
220V/380V/415V/440V
-
Power (kW):
-
16/25/35KVA
-
Weight (KG):
-
60 KG
-
Product Name:
-
Single Phase Resistance Spot Welder Foot Operated Spot Welding Machine
-
Machine type:
-
Pedal Welding Machine
-
Application:
-
resistance spot welding machine
-
MOQ:
-
1 Set
-
Weight:
-
60~120Kg
-
Function:
-
spot welder
-
After Warranty Service:
-
Video technical support, Online support and Spare parts
-
Local Service Location:
-
Brazil, Indonesia, Pakistan, India, Thailand
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training
-
Certification:
-
CCC,ISO,CE
Related Products
Product Display

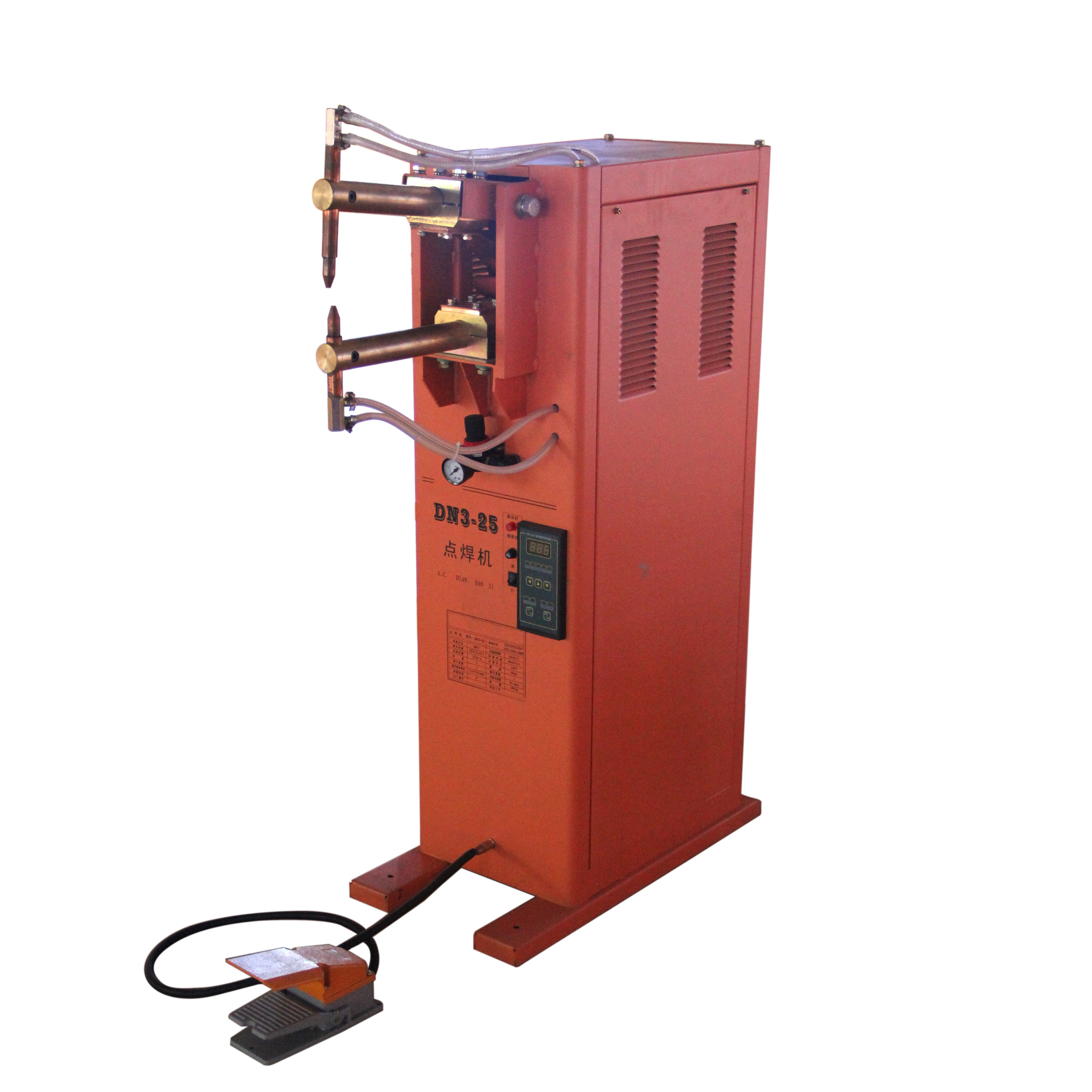

Pedal Spot
Welder
Welding Machine are used in car body producing, low carbon steel welding, Steel bar welding, Metal wire welding, Metal tube welding, also it can weld stainless steel, coated steel,security doors, cabinets. Meanwhile electrode arm can be custom-made according to your requirement.
|
Model Item
|
DN3-35
|
DN3-25
|
DN3-16
|
||
|
Rated Power
|
35KVA
|
25KVA
|
16KVA
|
||
|
Voltage
|
380V
|
380V
|
380V
|
||
|
Rated Primary Current
|
92A
|
66A
|
42.1A
|
||
|
Rated Duty Cycle
|
10%
|
10%
|
10%
|
||
|
Secondary Unload Voltage
|
4.2V
|
2.3～3.55V
|
1.98～3.01V
|
||
|
Adjustment Rated
|
1
|
4
|
4
|
||
|
Models of the controller
|
TCW-32H
|
TCW-32H
|
TCW-32H
|
||
|
Arm Length
|
400mm
|
400mm
|
400mm
|
||
|
|
280mm
|
280mm
|
280mm
|
||
|
Max. Strength at Electrodes
|
1400N
|
1400N
|
860N
|
||
|
Max. Welding Capacity
|
3.5+3.5mm
|
2.5+2.5mm
|
2+2mm
|
||
|
Cooling
|
Main Transformer: Air
Electrode: Water
|
|
|
||
pneumatic
