Quick Details
-
Model Number:
-
RMCSS-60/100
-
Product name:
-
Exhaust pipe single-wall venting flue/coaxial concentric pipe
-
Material:
-
Stainless steel 201 304
-
Diameter:
-
50-100 mm or 60/100 mm 75/100mm 80/110mm
-
Pipe Length:
-
300 mm 500 mm 1000 mm or as request
-
Surface finish:
-
Polished
-
Material thickness:
-
0.30 MM 0.5 mm
-
Relative product:
-
Venting flue kit, extension pipe, chimney elbow, adapter, check valve
-
Type choice:
-
Single layer/twin wall/coaxial
-
Usage:
-
venting flue, smoking pipe
Quick Details
-
Application:
-
Gas boiler, water heater, gas stove, Tankless water heater/ Gas boiler/Gas water heater/ Gas stove
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RM
-
Model Number:
-
RMCSS-60/100
-
Product name:
-
Exhaust pipe single-wall venting flue/coaxial concentric pipe
-
Material:
-
Stainless steel 201 304
-
Diameter:
-
50-100 mm or 60/100 mm 75/100mm 80/110mm
-
Pipe Length:
-
300 mm 500 mm 1000 mm or as request
-
Surface finish:
-
Polished
-
Material thickness:
-
0.30 MM 0.5 mm
-
Relative product:
-
Venting flue kit, extension pipe, chimney elbow, adapter, check valve
-
Type choice:
-
Single layer/twin wall/coaxial
-
Usage:
-
venting flue, smoking pipe
Product Description

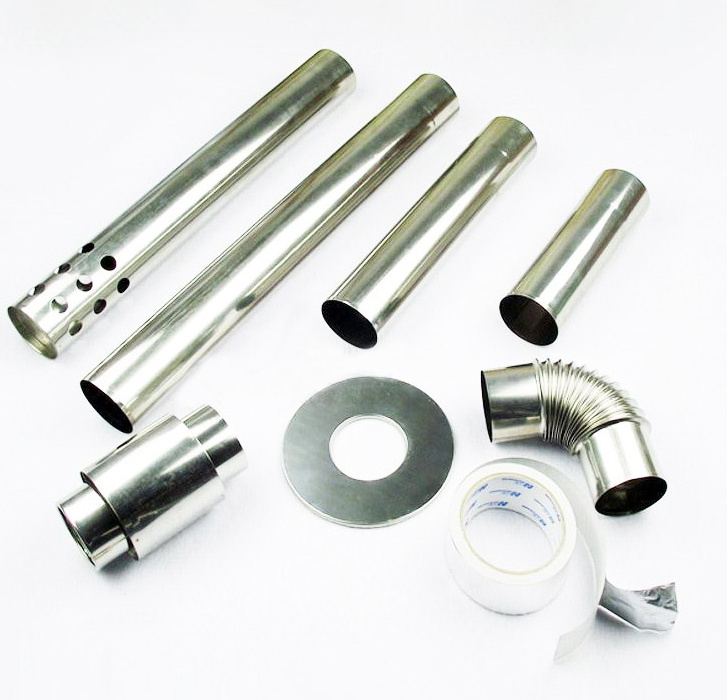

Stainless steel single-wall exhaust flue
Single-wall venting flues made of superior stainless steel 201 or SS 304. Flue Diameter have 50 mm 60 mm 70 mm 76 mm 80 mm 100 mm for choice. Flue Elbow 90 degree and 45 degree, take role of changing chimney direction as required; Extension pipe 250 mm /300 mm /325 mm /500 mm /800 mm /1000 mm. (Length can be customized) satisfy customer's demand accordingly. Except above popular items, we also supply adapter, check valve, termination pipe, terminal cap, gasket etc.
Application: Electric t
ankless water heater/gas boiler/stove
Stainless steel coaxial flue concentric and horizontal venting pipe/elbow
The “coaxial system” is made up of an internal smoke flue for venting flue gases and an external (support) flue which can be used to draw combustion air into the appliance or as a simple free coaxial ventilation section. It was widely applied on gas boiler, water heater, gas stove etc heating appliance. Length are available at 500 mm 1000 mm for popular size. 1500 mm and 2000 mm as request. Diameter:60/100 mm. 75/100 mm 80/100 mm etc.
Feature: Snap lock connection. Easy installation. Gasket for 100% sealing.
Specification
|
Application
|
Gas boiler, water heater, gas stove
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
Model Number
|
RMCSS-60/100
|
|
Product name
|
Single wall /Coaxial flues for wall-hung gas boiler/tankless water heater
|
|
Material
|
Stainless steel 201 304
|
|
Diameter
|
50 mm 60 mm 70 mm 80 mm 100 mm
60/100 mm 75/100 mm 80/110 mm
|
|
Pipe Length
|
300 mm 325 mm 500 mm 800 mm 1000 mm or as request
|
|
Application
|
Tankless water heater/ Gas boiler/Gas water heater/ Gas stove
|
|
Surface finish
|
Polished
|
|
Material thickness
|
0.30 MM 0.5 mm
|
|
Relative product
|
chimney flue kit, extension pipe, chimney elbow, adapter, check valve
|
|
Advantage
|
Factory price
|
|
Usage
|
venting flue, smoking pipe
|
Packing & Delivery
Master carton or separate carton
Lead time: in 5-7 days for sample order. Mass production around 15-20 days against the deposit.
