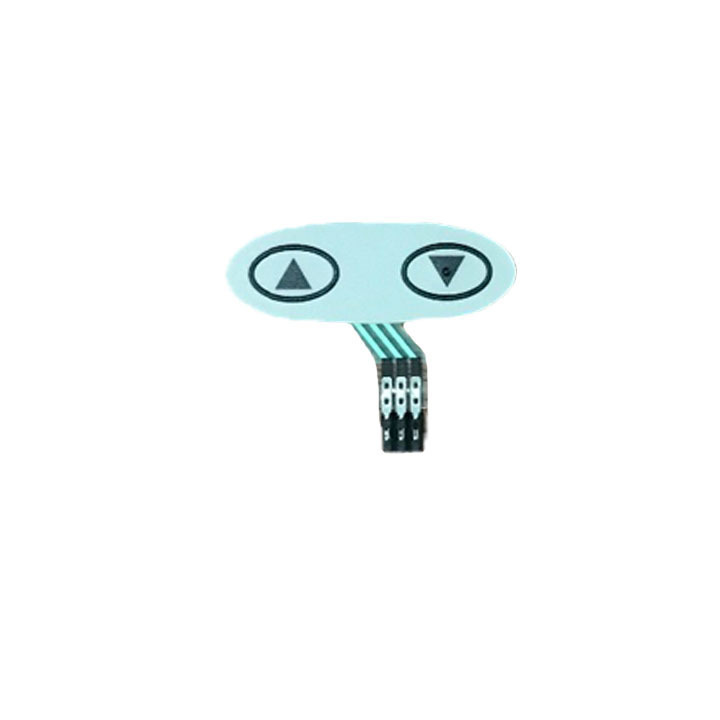

Quick Details
-
Size:
-
Customized Size
-
Tail Length:
-
60mm
-
Material:
-
PET
-
Structure:
-
overlay/reaining layer/circuit/rear adhesive
-
Overlay:
-
F150
-
Emboss height:
-
0.5mm
-
Custom Service:
-
Available
-
Rear Adhesive:
-
3m9448A
-
MOQ:
-
500pcs
-
Logo:
-
Customized Logo
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Singway
-
Model Number:
-
XWM-12930
-
Size:
-
Customized Size
-
Tail Length:
-
60mm
-
Material:
-
PET
-
Structure:
-
overlay/reaining layer/circuit/rear adhesive
-
Overlay:
-
F150
-
Emboss height:
-
0.5mm
-
Custom Service:
-
Available
-
Rear Adhesive:
-
3m9448A
-
MOQ:
-
500pcs
-
Logo:
-
Customized Logo
Dongguan SINGWAY Electronic Technology Co., Ltd was found in Sep,2011,it is the professional manufacturer and specialized in designing and producing electronic products,such as Touch Screen,Touch Panel,Membrane Switch,Rubber Matte ,Flexible Printed Board and so on.
We have much experienced in this line and have 2 factories in China ,one is in Touch Panel,Another is Membrane switch.Our highly quality products have been widely used in Home Appliances,Instruments,Medical Equipment,Industrial Control etc.At the same time,Our products are sold successfully to UK,USA,Britain,France,Germany,Sweden,India and so on.
We are looking forward to serving you and establishing a long-term, mutually-beneficial partnership with you.
Warmly welcome your kindly inquiry.
| 1.Membrane keyboard Construct | |||
| Graphic Overlay: |
PE(F150,V150,EBG,EGA,XEF,XEV...)
PC(8010,8A35,8B35,8A37,8A13,FR60,FR65,FR700,HP92S,HP60S...) |
||
| Spacer: | NIKTO,3M... | ||
| Lowwer Circuit: | PET circuit ,Single glue,FPC,PCB... | ||
| Rear Adhesive: | 3M... | ||
| Oil Ink: | GV,TOYO,SEIKO,MERLIA,, JUJO..... | ||
| Thickness: | 0.2-5.0mm | ||
| 2.Electrical Properties | |||
| Operating Voltage: | ≤ 50VDC | ||
| Working Current: | ≤ 100mA | ||
| Loop Resistance: | <200Ω | ||
| Insulation Resistance: | 50V (50MΩ) | ||
| Dielectric: | 250 Vrms (50~60Hz 1min) | ||
| Contact Bounce: | < 5ms | ||
| Expected Life (Flat) | ≥ 5million times | ||
| Expected Life (Tactile) | ≥ 1 million times | ||
| Duraswitch | ≥ 10million times | ||
| 3.Mechanica Properties | |||
| Operation Force (Flat) | 57~284g(2~10oz) | ||
| Operation Force (Tactile) | 170~450g(6~14oz) | ||
| Operation Height (Flat) | 0.1~0.5mm | ||
| Operation Height (Tactile) | 0.6~1.5mm | ||
| 4.Environment Parameter | |||
| Operation Temperature | -40~+80 Degree Centigrade | ||
| Storage Temperature | -40~+85 Degree Centigrade | ||
| Humidity | 90%~95%, 240 hours | ||
| Atmospheric pressure | 80 ~ 108kDa | ||
Packing
1) Wrap in air bubble film
2) Put into foam box
3) Packed with extra carton box, which make sure the goods safety in transportation.
4) We accepted Customized package.
Delivery
To create and submit counter-drawings + artwork for your approval:2-3 working days
To build tooling and Sample Shipping:8-10 days
Mass Production Delivery:15-30 days after the sample confirmation
Shipping Details:
1) Can be Shippded by international express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on customzers' requirement.
2) The tracking number will be informed once the package was delivered.
3) We will follow the shipment after we sent it. If you not receive goods on time, please contact us immediately, we will assist to get the goods smoothly.
We specilized in :
Singway is specialized in the production of a variety of single, double, high multi layers, the metallic substrate and FPC PCB. With laser drilling machine,, automatic machine, automatic exposure machine, large-scale lamination machine, Automatic flow production line, auto panel plating line, auto P.T.H Line, and other precision production equipments and AOI testing machine, flying probe tester machine and other advanced detection equipments.
FAQ
Q:Why choose Singway?
A:1)Enough industrail experience and involved main markets all over the world.
2)Dedicated and professional sales team will offer you 24hours online and immediate service.
3)Precise and advantage equipments.
4)High quality and sensitivity.
5)Many kinds of products with all size.
Q:How long is the warranty period?
A:Usually 1 year without damaged by people actions.It depends on different products.
