Product Paramenters
|
Type
|

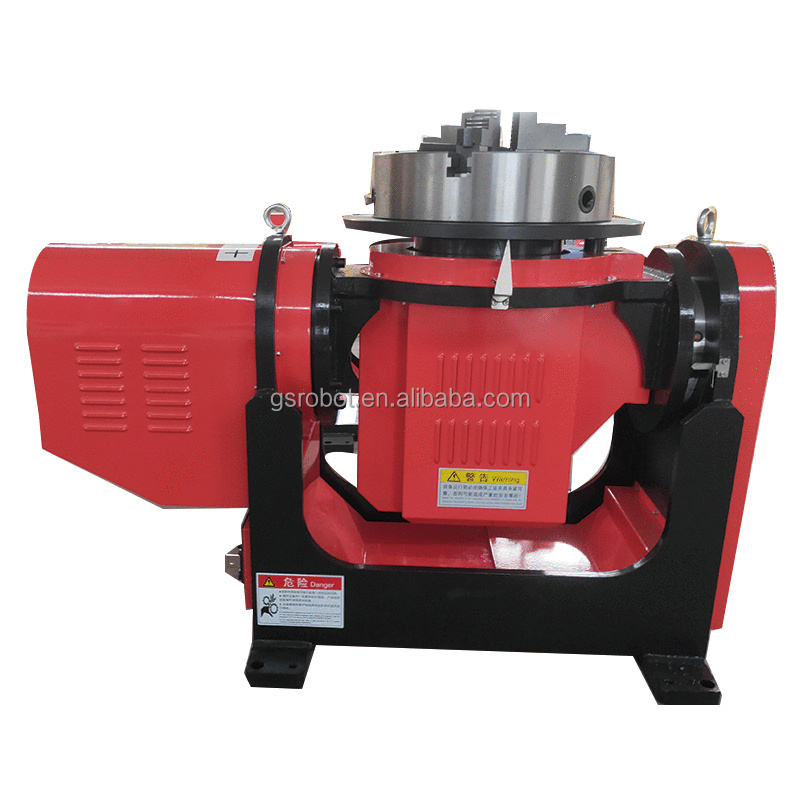

Double Axis P Type Welding Positioner
|
|
|
|
Model
|
AUT-DWP-P-200/ZK
|
AUT-DWP-P-500/ZK
|
|
|
Rated Payload
|
200kg( The 2nd shaft axis radius≤R300mm)
|
500kg(The 2nd shaft axis radius≤R300mm)
|
|
|
Standard Radius of Gyration
|
R400mm
|
R400mm
|
|
|
Maximum load eccentricity
|
≤240mm
|
≤150mm
|
|
|
The height of clamping
|
≤500mm(More than 500mm ,the bob-weight will increase with the actual load)
|
≤400mm(More than 400mm ,the bob-weight will increase with the actual load)
|
|
|
Maximum rotation angle of axis 1
|
±90°
|
±90°
|
|
|
Maximum gyration angle of axis 2
|
±360°
|
±360°
|
|
|
Rated rotation speed of axis 1
|
50°/S
|
50°/S
|
|
|
Rated gyration speed of axis 2
|
70°/S
|
50°/S
|
|
|
Repeat positioning accuracy
|
±0.08mm(At R=400mm)
|
±0.08mm(At R=400mm)
|
|
|
Positioner dimension(L*W*H)
|
1000mm*550mm*600mm
|
1200mm*600mm*750mm
|
|
|
Second axis 2 gyration disk size
|
Φ500mm(ZK's hollow internal hole diameter Φ30mm)
|
Φ600mm(ZK's hollow internal hole diameter Φ50mm)
|
|
|
Height of axis 1 gyration center
|
500mm
|
540mm
|
|
|
Equipment net weight
|
About 300kg
|
About 500kg
|
|
Product Lineup
WELDING POSITIONER
The welding positioner is an auxiliary device for industrial welding robots, which can greatly improve the work efficiency of welding robots. The positioner is suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds.
TYPE:
Single Axis Horizontal Servo Positioner
