Quick Details
-
CRI (Ra>):
-
90
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
LLX-LL-P
-
Brand Name:
-
Longlux
-
Input Voltage(V):
-
110-277V/220-240V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
100-130lm/W
-
Type:
-
Contemporary
-
Application:
-
Office
-
Item Type:
-
Pendant Lights
-
Lamp Body Material:
-
PC(Polycarbonate) led light linear
-
LED Chips:
-
Bridgelux chips for led light linear
-
Body Thickness:
-
0.7mm for led light linear
-
led light linear PF:
-
0.95
-
led light linear Power:
-
10W-60W
-
Material:
-
cover PC(Polycarbonate) or PMMA(Acrylic)
-
Number of Lights:
-
accordingly on model and requirements
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
50
-
IP Rating:
-
Class 1
-
Warranty(Year):
-
5-Year
-
CRI (Ra>):
-
90
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
LLX-LL-P
-
Brand Name:
-
Longlux
-
Input Voltage(V):
-
110-277V/220-240V
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
100-130lm/W
-
Type:
-
Contemporary
-
Application:
-
Office
-
Item Type:
-
Pendant Lights
-
Lamp Body Material:
-
PC(Polycarbonate) led light linear
-
LED Chips:
-
Bridgelux chips for led light linear
-
Body Thickness:
-
0.7mm for led light linear
-
led light linear PF:
-
0.95
-
led light linear Power:
-
10W-60W
-
Material:
-
cover PC(Polycarbonate) or PMMA(Acrylic)
-
Number of Lights:
-
accordingly on model and requirements

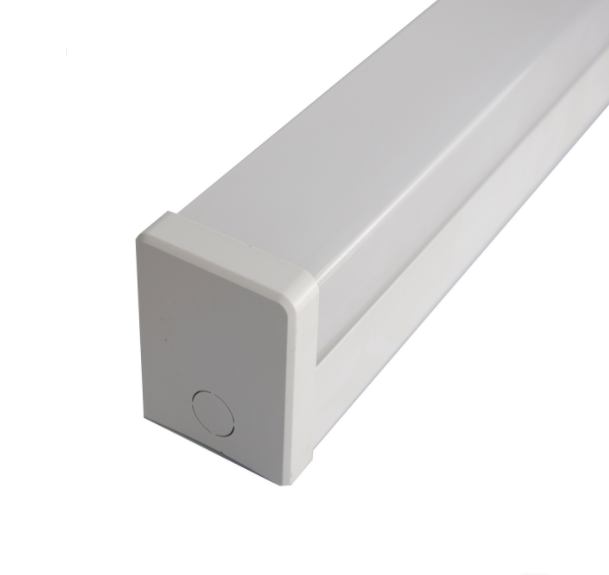

Acrylic Diffuser dc24v led batten light linear
More details for Longlux led linear light;
Longlux led linear light Features;
High Efficiency and more energy saving up to 70% than normal fluorescent lamp
SMT LEDs, easy to install, 50,000 hrs life span
Safe and healthy to eye
Environmental-friendly: Lead (Pb) free-RoHS compliant
High quality DC driver, no flickering with soft light
Size:Narrow
Housing: Coated Steel + Polycarbonate/Acrylic
Installation:Pendant or Wall Mounted
led linear light Specifications;
Housing: Coated Steel + Polycarbonate
Width: Single LED strip
| Model No. | LLX-LL-PN-600 | LLX-LL-PN-1200 | LLX-LL-PN-1500 | LLX-LL-PN-1800 |
| Voltage(V) | 110-277 | 110-277 | 110-277 | 110-277 |
| Rated current(A) | 10 | 20 | 25 | 28 |
| Wattage(W) | 0.09/0.04A | 0.18/0.08A | 0.22/0.1A | 0.26/0.11A |
| Lumen(lm) | 1200 | 2200 | 2800 | 3400 |
| P.F. | 0.95 | 0.95 | 0.95 | 0.95 |
| Ra | ≥80/90 | ≥80/90 | ≥80/90 | ≥80/90 |
| Lifetime(H) | 50000+ | 50000+ | 50000+ | 50000+ |
| Protection Class | Class 1 | Class 1 | Class 1 | Class 1 |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Body Size(MM) | 620*69*82 | 1230*69*82 | 1530*69*82 | 1795*69*82 |
Housing: Coated Steel + Polycarbonate
Width: Double LED strip
| Model No. | LLX-LL-PW-600 | LLX-LL-PW-1200 | LLX-LL-PW-1500 | LLX-LL-PW-1800 |
| Voltage(V) | 110-277 | 110-277 | 110-277 | 110-277 |
| Rated current(A) | 20 | 37 | 46 | 56 |
| Wattage(W) | 0.18/0.08A | 0.35/0.15A | 0.43/0.19A | 0.52/0.23A |
| Lumen(lm) | 2000 | 4000 | 5000 | 6000 |
| P.F. | 0.95 | 0.95 | 0.95 | 0.95 |
| Ra | ≥80/90 | ≥80/90 | ≥80/90 | ≥80/90 |
| Lifetime(H) | 50000+ | 50000+ | 50000+ | 50000+ |
| Protection Class | Class 1 | Class 1 | Class 1 | Class 1 |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Body Size(MM) | 620*109*82 | 1230*109*82 | 1530*109*82 | 1795*109*82 |
Housing: Coated Steel + Acrylic
Width: Single LED strip
| Model No. | LLX-LL-AN-600 | LLX-LL-AN-1200 | LLX-LL-AN-1500 | LLX-LL-AN-1800 |
| Voltage(V) | 110-277 | 110-277 | 110-277 | 110-277 |
| Rated current(A) | 10 | 20 | 25 | 28 |
| Wattage(W) | 0.09/0.04A | 0.18/0.08A | 0.22/0.1A | 0.26/0.11A |
| Lumen(lm) | 1200 | 2200 | 2800 | 3400 |
| P.F. | 0.95 | 0.95 | 0.95 | 0.95 |
| Ra | ≥80/90 | ≥80/90 | ≥80/90 | ≥80/90 |
| Lifetime(H) | 50000+ | 50000+ | 50000+ | 50000+ |
| Protection Class | Class 1 | Class 1 | Class 1 | Class 1 |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Body Size(MM) | 620*68*90 | 1230*68*90 | 1530*68*90 | 1795*68*90 |
Housing: Coated Steel + Acrylic
Width: Double LED strip
| Model No. | LLX-LL-AW-600 | LLX-LL-AW-1200 | LLX-LL-AW-1500 | LLX-LL-AW-1800 |
| Voltage(V) | 110-277 | 110-277 | 110-277 | 110-277 |
| Rated current(A) | 20 | 36 | 45 | 56 |
| Wattage(W) | 0.18/0.08A | 0.35/0.15A | 0.43/0.19A | 0.52/0.23A |
| Lumen(lm) | 2200 | 4400 | 5500 | 6600 |
| P.F. | 0.95 | 0.95 | 0.95 | 0.95 |
| Ra | ≥80/90 | ≥80/90 | ≥80/90 | ≥80/90 |
| Lifetime(H) | 50000+ | 50000+ | 50000+ | 50000+ |
| Protection Class | Class 1 | Class 1 | Class 1 | Class 1 |
| IP degree | IP20 | IP20 | IP20 | IP20 |
| Body Size(MM) | 620*124*90 | 1230*124*90 | 1530*124*90 | 1795*124*90 |
More datas for led linear light ;
Installation instruction for led linear light ;
led linear light Application;
Longlux much more care about the high quality and strict demands for led linear light production;
