Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SYMBANG
-
Model Number:
-
A12038M
-
Voltage:
-
115/230 V
-
Certification:
-
ce;RoHS
-
Size:
-
120x120x38mm
-
series:
-
230v AC axial Fan
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Other
-
Electric Current Type:
-
AC
-
Mounting:
-
Industrial Equipment
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
SYMBANG
-
Model Number:
-
A12038M
-
Voltage:
-
115/230 V
-
Certification:
-
ce;RoHS
-
Size:
-
120x120x38mm
-
series:
-
230v AC axial Fan
Product Description

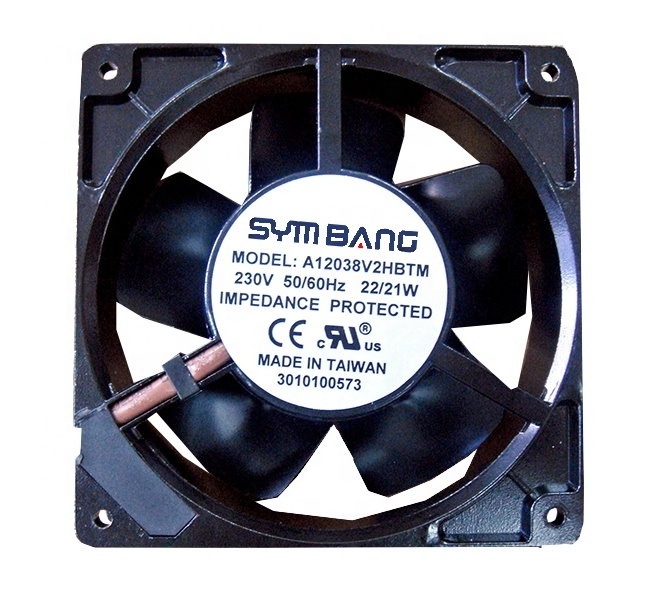

120mm 115v 230v AC industrial Axial Fan (A12038M)
| HOUSING | Aluminum Die Casting,Painted Black |
| IMPELLER | Metal |
| BEARING | Ball or Sleeve |
| MOTOR TYPE | Outer rotor ,Shaded Pole Motor |
| THERMINATION | Terminals or Lead Wire |
| OPERATING VOLTAGE | 85VAC TO 125VAC FOR 115V TYPE |
| 185VAC TO 245VAC FOR 230V TYPE | |
| DIELETRIC STRENGTH | 1500VAC FOR 1 MINUTE |
| INSULATION | Class A |
| INSULATION RESISTANCE | 10M Ohms Min. @500 VDC |
| OPERATING TEMPERATURE | -10°C to + 70°C |
| SAFETY | Impedance Protected |
| WEIGHT | 600g |
| ROHS COMPLIANCE | Yes |
Application:
1. Power Supply Units
2. Measuring Instruments
3. Electronic Switch Systems
4. Automatic Vending Machines
5. Air-conditioning & Heating Apparatus
6. Computers(CPU, Peripheral & Terminal Equipment)
7. Medical Equipment
8. Acoustic Equipment
9. Flight Instrumentation
10. Numerical Control(NC)Units
11. Data Communications Terminal Equipment
12. Office Machinery Appliances & Copying Machines
