Good quality charcoal carbonization carbonized oven carbonization kiln for heating

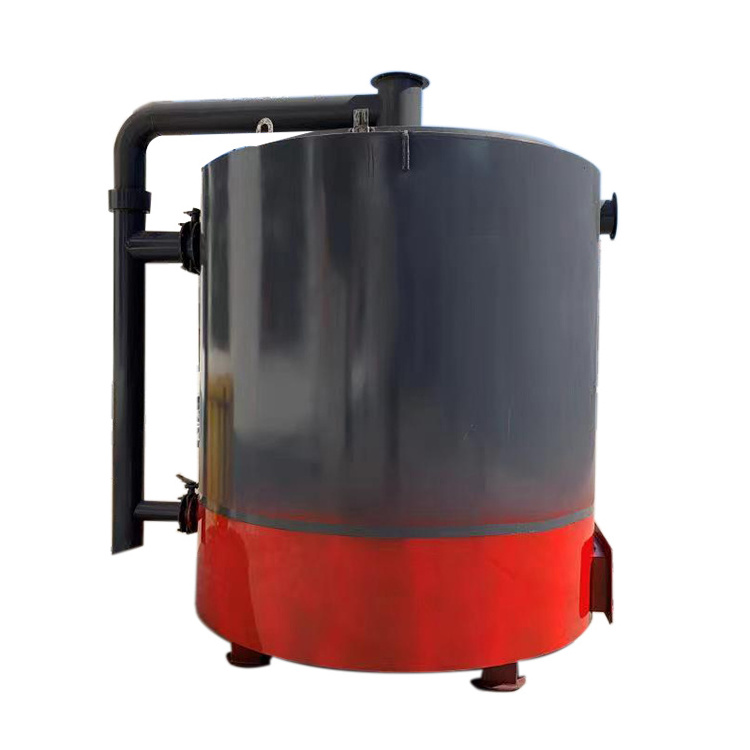

This wood carbonization stove is an efficient stove can change wood log, wood briquette, coconut shell and bamboo Palm shells etc directly into final charcoal,can working without electricity.

Wood Carbonization Stove Main Parts:
Inner stove :Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel. , and the three carbonization basket can be stack together, easy for loading and transporting ,and it will save a lot of space and transport charge.
Hoisting equipment :it include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket.
Purification tank :This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning) and filter the wood tar.

Working Principle:
1) Arrange wood briquettes in furnace, leave 25 cm distance from the briquette to the roof of furnace
2) Close the door of furnace
3) Brn 10 kg wood briquettes, and put into furnace from the top holes.
4) Turn on the air fan
5) Leave a small gap at the top hole to supply a little air, this procedure lasts 6 hours, and during this 6 hours, make the gap smaller and smaller.
6) After 6 hours, watch the smoke from the chimney, compare the color of smoke, if the smoke become transparent, close the gap completely.
7) Turn off the air fan.
8) Wait the stove become cool, this procedure lasts 6 to 8 hours
9) Open the door, and leave the stove, make sure the gas come out and then check if the carbonizing is finished
10) If after 6 hours, the smoke is still strong, keep the air fan working, and leave the gap until the smoke become transparent. Sometimes, this procedure last 8-10 hours.
11) At the end, if the carbonization is not complete, the wood briquettes don’t become charcoal totally, ignite again, and do as the above procedure
12) The better quality of charcoal needs longer time of carbonizing, best charcoal sounds like steel, and no smoke when burn.

* About accurate quote for buyer
Hi customer,
Before we give you accurate quote about charcoal machine, please tell us following details:
1 your raw materials is what ?
2 the raw materials moisture ?
3 your final product is which style charcoal ?
4 your daily capacity of the final product ? 500kg-100tons /day available .
