Custom Waterproof Immersion Water Heater Resistencia Electrica Heating Element For Boiler 230V 2500W

Custom Waterproof Immersion Water Heater Resistencia Electrica Heating Element For Boiler 230V 2500W

FOB Reference Price: Get Latest Price

≥5 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ANNAI

Dimension(L*W*H):: As per orders

Weight:: 0.2 KG

Working Temperature Range:: 100 - 650 ℃

Core Components:: Resistance wire, Mgo powder

Product Name:: Water Resistencia Electrica Heating Element For Boiler 230V 2500W

Sheath Material:: SS304, SS316, INCOLOY

Sheath Dia.:: 3-32mm (tolerance:-0.02mm-0.08mm)

Length Available:: 30-2000mm (tolerance:±1 mm)

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

operating temp:: ≤650°C

Quick Details

Type:: Cartridge Heater

Power Source:: Electric

Voltage:: 12V-415V

Place of Origin:: Guangdong, China

Brand Name:: ANNAI

Dimension(L*W*H):: As per orders

Weight:: 0.2 KG

Working Temperature Range:: 100 - 650 ℃

Core Components:: Resistance wire, Mgo powder

Product Name:: Water Resistencia Electrica Heating Element For Boiler 230V 2500W

Sheath Material:: SS304, SS316, INCOLOY

Sheath Dia.:: 3-32mm (tolerance:-0.02mm-0.08mm)

Length Available:: 30-2000mm (tolerance:±1 mm)

Wattage Tolerance:: +5%, -10%

Resistance tolerance:: +10%, -5%

operating temp:: ≤650°C

Products Description

Custom Waterproof Immersion Water Heater Resistencia Electrica Heating Element For Boiler 230V 2500W

Sheath Material	SS304, SS316, Incoloy
Sheath Dia.	3-32mm (Tolerance: -0.02mm-0.08mm)
Length	30mm-2000mm (Tolerance: ±1mm)
Voltage	12V -450V
Wattage	To be customized (Tolerance: +4%-8%)
Density	Max 40W/CM²
Temperature	Max 927℃
Electrical Property	AC1500V-AC2500V, leak currenct less than 0.5mA/Min

Application:
Applicable to 3D printer, plastic formed mold, glass hot bending machine, packing machinery, thermal pressure forming machine, cigarette making machine, coffee machine, pharmaceutical machinery, shoemaking industry, etc.

All products are manufactured as per CCC and CE Criteria.

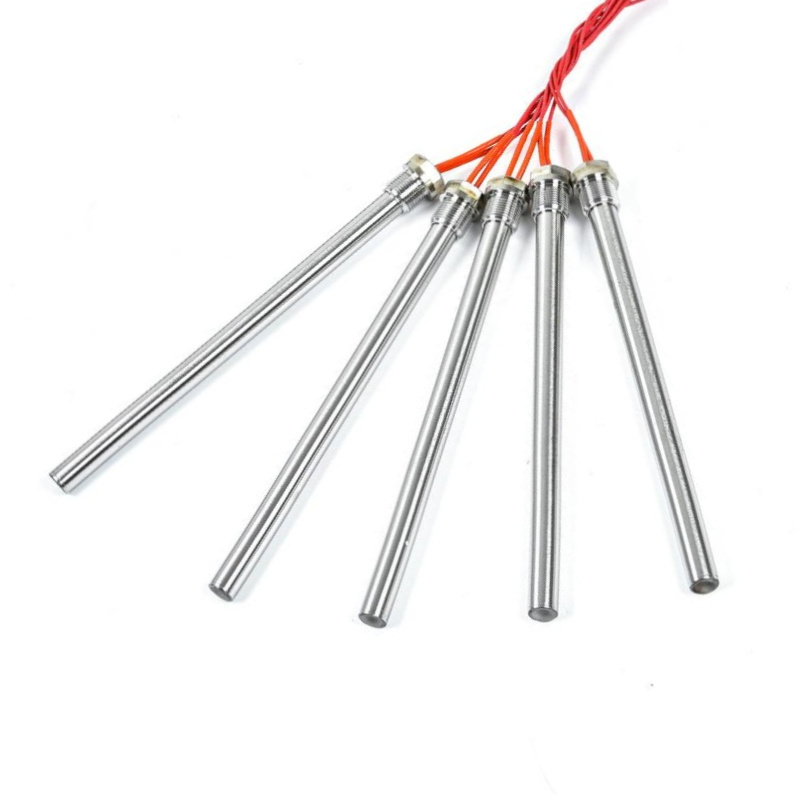

Product Show

Characteristics:

1) Long-term service life, advanced design of interior structure, highly purified magnesia rod and powder, great heat conductivity, and special abrasive equipment.
2) Adopt special qbrasive equipment, to ensure tube diameter is fit for operation equipment. High heat efficiency and quick heat elimination.

3) All kinds of fixed plates and flanges meet different installation demand.
4)Portective sleeves with various materials satisfy special requirements on electromagnetism, high temperature, wear resistance and water proofing.
