Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHNLAN
-
Model Number:
-
F10
-
Mechanical Life:
-
in 10years
-
AC outlets quantity:
-
0 outlet
-
Cable length:
-
0m
-
Item:
-
10 inch tuya central control panel
-
Feature:
-
app control music & tuya device control
-
Power of Music Amplifier:
-
2x20w
-
App:
-
Smart Life/Tuya Smart
-
Function:
-
Tuya central control/ Music play
-
Wireless Protocols:
-
2.4G wifi
-
Application scenarios:
-
Control the lights, curtains, air conditioners,othersmart home devices
-
hole of mounting:
-
dual 86x86mm
-
Blue tooths:
-
bt transmission ( can connect other bt speaker to play )
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
110V-240V AC
-
Customized support:
-
YES
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHNLAN
-
Model Number:
-
F10
-
Mechanical Life:
-
in 10years
-
AC outlets quantity:
-
0 outlet
-
Cable length:
-
0m
-
Item:
-
10 inch tuya central control panel
-
Feature:
-
app control music & tuya device control
-
Power of Music Amplifier:
-
2x20w
-
App:
-
Smart Life/Tuya Smart
-
Function:
-
Tuya central control/ Music play
-
Wireless Protocols:
-
2.4G wifi
-
Application scenarios:
-
Control the lights, curtains, air conditioners,othersmart home devices
-
hole of mounting:
-
dual 86x86mm
-
Blue tooths:
-
bt transmission ( can connect other bt speaker to play )
Product Description
Features:
*Tuya App wifi remote control the music , volume .
Android 8.1 system Built in 2x20w amplifier , can be with 2-4 speakers, or can choose 4x20w amplifier version
* Language : English , Chinese
* 6"/ 7"/8" /10" are available .
*
Tuya LOT ,can create own scene , built in zigbee gateway,can control wifi and zigbee smart device like AC switch , lightning ,plug & socket ,curtain,video doorbell and etc,
*Touch to control smart devices in the whole house ,making it easy to accurately control the equipment
*With Sound ,b
uilt in speaker 1w .
* Built in 2 local light control ,each light is <200w
*
Dual 86x86mm box for installation,more stable
*Big 10 inch Full touch screen operation display with rotary button, luxury design
* Customs linkage scenes , touch the panel to quickly switch scene modes
*Big 10 inch Full touch screen operation display with rotary button, luxury design
* Customs linkage scenes , touch the panel to quickly switch scene modes
*
Blue tooth transmit function
, can connect to other blue tooth speakers to play music
*
2 x RJ45 internet cable port
*Popular used in hotels,home, apartment, store , spa , flat and etc .
*Popular used in hotels,home, apartment, store , spa , flat and etc .
Specification

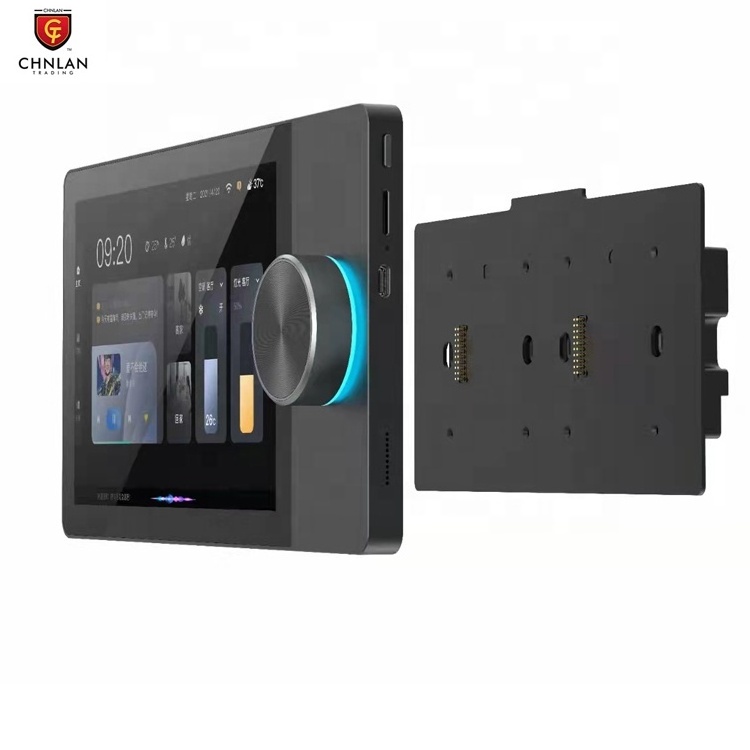

10" New Smart Home Multi-Functional Touch Screen Tuya Central control Panel Zigbee Gateway and Music Amplifier with Mobile APP Remote Control
|
Item
|
Tuya Multi-Functional Touch Screen Central control Panel
|
|
Screen
|
10-inch HD LCD with Rotary button
|
|
App
|
Tuya Smart / Smart Life
|
|
Protocols
|
Zigbee,WiFi,Blue-tooth (BT4.0)
|
|
Voltage input
|
AC110-220V ,50/60Hz
|
|
Memory
|
Built in 2GB memory ,expanded 16GB
|
|
Audio Source
|
wifi micro sd card/AUX /USB 2.0/local of amplifier
|
|
Power of amplifier
|
2x20w android 8.1
|
|
Blue tooth
|
blue tooth transmission ( connect other bt speaker )
|
|
Aux
|
Aux input x1 , aux output x1
|
|
RJ45 port
|
2x rj45 LAN port
|
|
RS485
|
supported
|
|
Working Temperature
|
0℃ ~ +40℃
|
|
Working humidity
|
5% to 90% RH (non-condensing)
|
|
Dimension
|
297x162x11.5mm
|
|
Hole of Mounting
|
Dual 86x86mm
|
|
Package includes
|
tuya control panel + user manual + screws
|
Details Images
The panel built in 2 channel light control , each light <200w
