Quick Details
-
Voltage:
-
200-600 V, 50-60 Hz
-
Weight (KG):
-
54
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
laser welders
-
Supply Voltage:
-
200-600 V, 50-60 Hz
-
Working Range:
-
703mm
-
TCP Maximum Speed:
-
7.3 m/s
-
Payload:
-
7 kg
-
Arm Load:
-
0.3 kg
-
Acceleration time 0-1m/s:
-
0.06s
-
Base Size:
-
210mm*210mm
-
Integrated Ethernet:
-
One 100/10 Base-TX Ethernet port
-
Controllers:
-
IRC5 Compact/IRC5 Single Cabinet Type
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DAG
-
Warranty:
-
1 year
-
Voltage:
-
200-600 V, 50-60 Hz
-
Weight (KG):
-
54
-
Marketing Type:
-
Hot Product 2024
-
Product name:
-
laser welders
-
Supply Voltage:
-
200-600 V, 50-60 Hz
-
Working Range:
-
703mm
-
TCP Maximum Speed:
-
7.3 m/s
-
Payload:
-
7 kg
-
Arm Load:
-
0.3 kg
-
Acceleration time 0-1m/s:
-
0.06s
-
Base Size:
-
210mm*210mm
-
Integrated Ethernet:
-
One 100/10 Base-TX Ethernet port
-
Controllers:
-
IRC5 Compact/IRC5 Single Cabinet Type

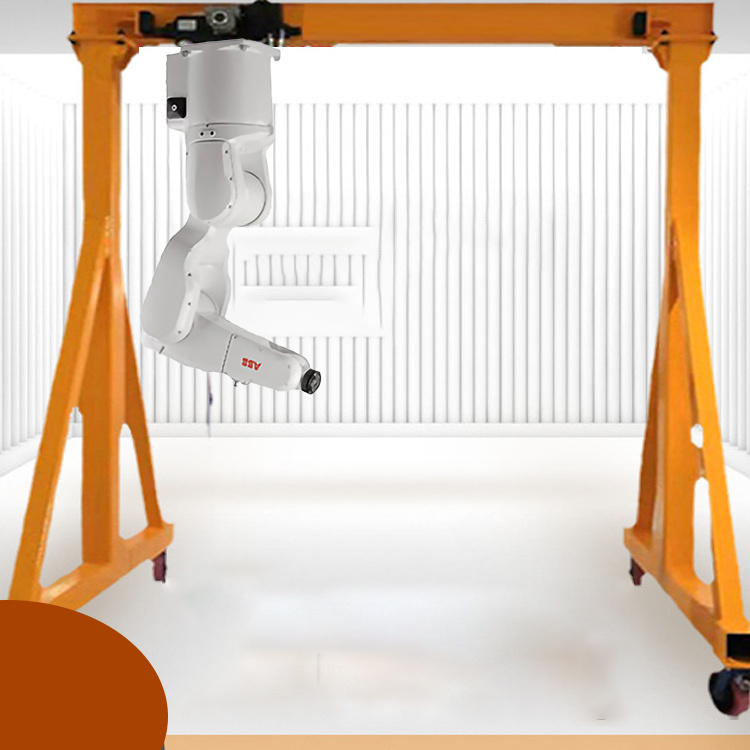

Factory Price Automatic Robot Arm Six-Axis Welding Robot Metal Aluminum Stainless Steel Mig Welding Robot
Products Descriptions
|
|
IRB 1200-7/0.7
|
IRB 1200-5/0.9
|
|
|
1 kg pickup beat
|
|
|
|
|
25 X 300 X 25mm
|
0.42S
|
0.42S
|
|
|
TCP Maximum Speed
|
7.3 m/s
|
8.9 m/s
|
|
|
TCP Maximum Acceleration
|
35 m/s*s
|
36 m/s*s
|
|
|
Acceleration time 0-1m/s
|
0.06s
|
0.06s
|
|
|
Supply Voltage
|
200-600 V, 50-60 Hz
|
|
|
|
Transformer rated power
|
4.5 KVA
|
4.5 KVA
|
|
|
power wastage
|
0.39 kW
|
0.38 kW
|
|
|
Base Size
|
210mm*210mm
|
210mm*210mm
|
|
|
Weight
|
52 KG
|
54 KG
|
|
|
Repeat positioning accuracy
|
0.02mm
|
0.025mm
|
|
|
Integrated signal source and power supply
|
10 signal circuits at the wrist
|
|
|
|
Integrated air supply
|
4 air lines at the wrist (5 Bar)
|
|
|
|
Integrated Ethernet
|
One 100/10 Base-TX Ethernet port
|
|
|
|
protection class
|
IP40/IP67/Casting Specialist Generation I/Clean Room
|
|
|
|
Controllers
|
IRC5 Compact/IRC5 Single Cabinet Type
|
|
|
|
Working Range
|
703 mm
|
901 mm
|
|
|
Payload
|
7 kg
|
5 kg
|
|
|
Arm Load
|
0.3 kg
|
0.3 kg
|
|
|
Axis motion
|
Working range
|
Maximum speed
|
||
|
IRB 1200-7/0.7
|
|
|
||
|
Axis 1 rotation
|
170°to -170°
|
288°/s
|
||
|
Axis 2 arm
|
135°to -100°
|
240°/s
|
||
|
Axis 3 arm
|
70°to -200°
|
300°/s
|
||
|
Axis 4 wrist
|
270°to -270°
|
400°/s
|
||
|
Axis 5 Bend
|
130°to -130°
|
405°/s
|
||
|
Axis 6 Flip
|
360°to -360°
|
600°/s
|
||
|
IRB 1200-5/0.9
|
|
|
||
|
Axis 1 rotation
|
170°to -170°
|
288°/s
|
||
|
Axis 2 arm
|
135°to -100°
|
240°/s
|
||
|
Axis 3 arm
|
70°to -200°
|
300°/s
|
||
|
Axis 4 wrist
|
270°to -270°
|
400°/s
|
||
|
Axis 5 Bend
|
130°to -130°
|
405°/s
|
||
|
Axis 6 Flip
|
360°to -360°
|
600°/s
|
||
