Quick Details
-
Power:
-
11KW
-
Dimension(L*W*H):
-
3500mm x 2800mm x 2580mm
-
Warranty:
-
one year
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-38m/min
-
control type:
-
PLC control
-
air duct diameter:
-
100-1600mm
-
air duct length:
-
max. 8000mm
-
thickness of raw material:
-
0.4~1.2mm for galavanized steel, 0.4-1.0mm for stainless steel
-
width of raw material:
-
137-140mm
-
working speed:
-
1~35m/min
-
mould type:
-
duct mould
-
cutting type:
-
roller shear
-
main motor power:
-
11kW
-
Pipe Material:
-
galvanized steel
Quick Details
-
Brand Name:
-
zhenhuan
-
Weight:
-
2200 kg
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
11KW
-
Dimension(L*W*H):
-
3500mm x 2800mm x 2580mm
-
Warranty:
-
one year
-
Sheet Thickness (mm):
-
0.4-1.2mm
-
Production Capacity:
-
1-38m/min
-
control type:
-
PLC control
-
air duct diameter:
-
100-1600mm
-
air duct length:
-
max. 8000mm
-
thickness of raw material:
-
0.4~1.2mm for galavanized steel, 0.4-1.0mm for stainless steel
-
width of raw material:
-
137-140mm
-
working speed:
-
1~35m/min
-
mould type:
-
duct mould
-
cutting type:
-
roller shear
-
main motor power:
-
11kW
-
Pipe Material:
-
galvanized steel
MACHINE DESCRIPTION

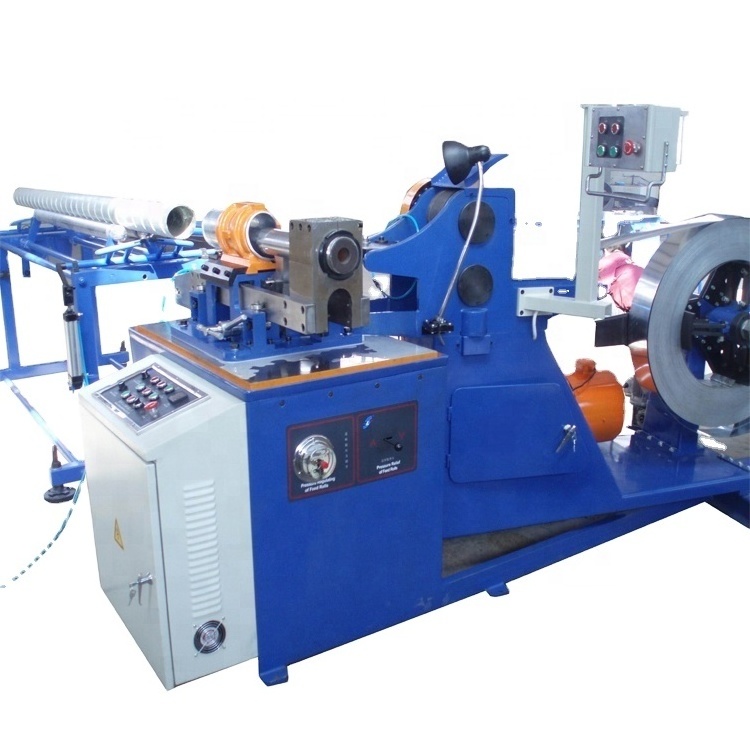

This
spiral round duct forming machine
is for producing round air duct for various uses, such as for HVAC round ducts, oval ducts, chimney flue, etc.
MAIN FEATURES
-- Large diameter range, 1500mm for special structure, and could extend to 2000mm
-- Pipe thickness up to 1.2mm for galvanized steel, could extend to 2mm and 0.8mm for stainless steel
-- PIpe length up to 12m with automatic saw cutter or slitter
- PLC control, convenient operation
-- Light and small, suitable for site work
MACHINE SPECIFICATION
|
1
|
Diameter range
|
100-1600mm (2000mm)
|
|
2
|
Wall thickness
|
0.4-1.2mm
|
|
3
|
Duct lenght
|
6-8-12meter
|
|
4
|
Strip width
|
137mm
|
|
5
|
Strip feeding speed
|
1-38m/min
|
|
6
|
Main motor power
|
11KW
|
|
7
|
Cutting motor power
|
4.0KW
|
|
8
|
Air pressure
|
0.8MPa
|
|
9
|
Dimension
|
3500x2800x2580mm
|
|
10
|
Weight
|
about 2000KG
|
