Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Dimension(L*W*H):
-
2500*1300*1700mm
-
Weight:
-
800 KG
-
Name:
-
Box package machine
-
Usage:
-
Industry
-
Machine type:
-
Muti Functions Packaging Machine
-
Suitable for:
-
Toothbrushes
-
Automaticity:
-
Fully Auto
-
Advantage:
-
Easy Operation High Efficiency
-
Capacity:
-
50-100box/min
-
Material:
-
SUS304
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
380V 50Hz
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNOC
-
Dimension(L*W*H):
-
2500*1300*1700mm
-
Weight:
-
800 KG
-
Name:
-
Box package machine
-
Usage:
-
Industry
-
Machine type:
-
Muti Functions Packaging Machine
-
Suitable for:
-
Toothbrushes
-
Automaticity:
-
Fully Auto
-
Advantage:
-
Easy Operation High Efficiency
-
Capacity:
-
50-100box/min
-
Material:
-
SUS304
-
After-sales Service Provided:
-
Online Support

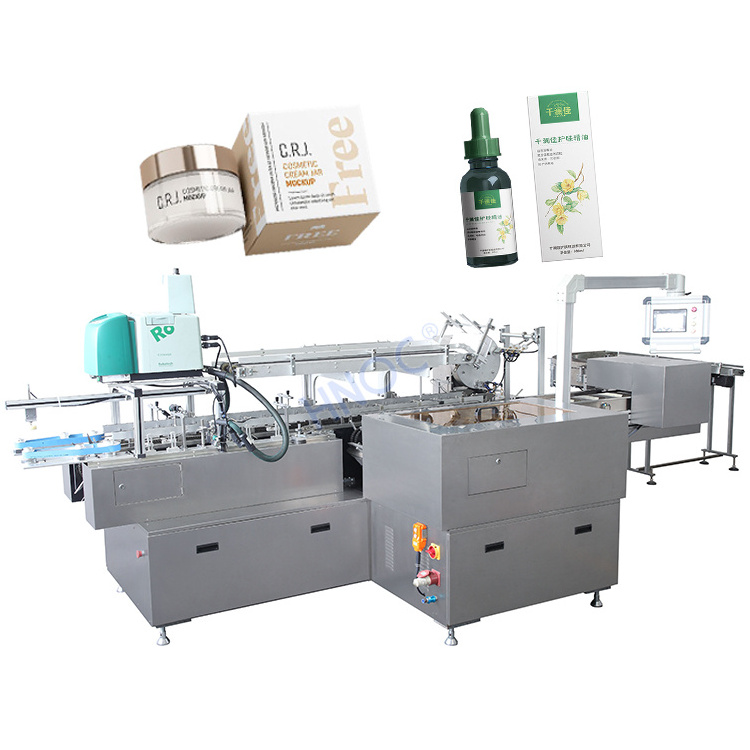

Product Description
Introduction
This machine integrates automatic unpacking, pushing, folding, folding and sealing. Suitable for carton packaging machines of many varieties and specifications. It adopts PLC microcomputer control and has automatic alarm and fault indication functions. Its sealing system has automatic unpacking, pushing, folding, folding, sealing and other functions without manual operation. All parts of the machine that come into contact with the color box are made of high-quality stainless steel and aluminum with polished surfaces. The appearance is beautiful and elegant, and does not pollute the environment.
This machine is used for:
Food: noodles, chocolate, bread, cakes, snacks, muffins, etc.
Daily necessities: soap, candles, lamps, pens, hard jewelry, etc.
Application
The machine is a new product developed by our company. It has wide application range, high efficiency, stable operation, and can be used for the packaging of aluminum foil, food and cosmetics.
Features
A.
The structure is compact and reasonable, the performance is stable and advanced, and the operation is simple and easy to understand.
B.
Intermittent motion, large packing range and easy adjustment.
C.
Using internationally renowned electrical components PLC control, which has touch-type man-machine interface, and the parameter setting is convenient and quick.
D.
The fault diagnosis prompt is clear at a glance, and the use is more user-friendly.
E.
The suction unit adopts a vacuum generator or a vacuum pump to realize the suction and put of the carton, the position is accurate, and the carton is not stuck.
F.
The transmission system is concise and clear, the work is more reliable, and the maintenance is more convenient.
G.
Each control is realized by software, which is convenient for function adjustment and technical upgrading, and can adapt to the production needs of different periods.
Parameter
Finished Product Display
|
Capacity
|
|
120 box/min
|
|
|
Box
|
Max. Box
|
250x150x80 mm (LxWxH)
|
|
|
|
Min. Box
|
150x100x30 mm (LxWxH)
|
|
|
|
Material requirements
|
250-400 g/㎡
|
|
|
|
|
|
|
|
|
|
|
|
|
Sealing style
|
|
Socket and hook bottom box
|
|
|
Power
|
|
4.5 kW
|
|
|
Voltage
|
|
380V 50HZ
|
|
|
Compressed air
|
Pressure
|
0.6-0.8 Mpa
|
|
|
|
|
|
|
|
|
Gas consumption
|
150-200 L/min
|
|
|
Size
|
|
4800x2000x1800mm
|
|
|
Weigh
|
|
2000KG
|
|
Product Details
Product Photograph
Related Products
F A Q
Q1: What's your company after- sales service?
A1:
Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1.
improper operation problem, we will solve all the usage problems by video call.
2.
machine parts problem, we will send you accessories to ensure the normal use of the machine.
3.
In addition, our engineers go abroad every year to help customers solve
problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2: Do you provide any warranty about your equipment?
A2
:
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure
that the machine is in the best condition when it arrives at your address. Some
minor problems of the machine are usually caused by incorrect operation by
novices, so we provide a full set of English instruction videos and common problem
solving videos,To help users better understand it. On the other hand, we put a set
of spare parts in the toolbox of the machine in advance. During your use, if you
need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to
arrive at your door. During use, if you have any questions, we can make a video
call at any time.
Q3: How to transport without customs clearance experience ?
A3:
We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping
service.
Q4: Does your company provide training?
A4:
Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China?
A5:
We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best
advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
