Rated power

10KW

12KW

15KW

20KW

30KW

40KW

45KW

50KW

Battery Voltage

96V/192VDC

192V/240VDC

360/384VDC

Phase

Three-phase+N+G

Nominal voltage

380VAC±1% ( Steady state load ), 380VAC±3% ( Load fluctuation )

( the voltage can be set to be 200v/220/380v/400v/415vac )

Input Frequency rage

50Hz±0.1Hz

Current peak ratio

3 : 1 MAX

Output waveform

Pure sine wave

Total harmonic distortion

Linear load < 3%; nonlinear load < 5%

Transient load voltage transients

< ±5% (from 0 to 100%)

Instant recovery time

< 10ms

Balance load voltage

< ±1% ;< ±5% ( Unbalanced load voltage )

Overload capacity

100%~110%:30s;110%~130%:10s;>130%:1s

Inverter efficiency

>89%

communication interface

RS232 ,( 485 、 snmp, Options )

Operating temperature

0 ~ 40 ℃

Relative humidity

(non condensing)

30% ~ 90%

Operating altitude

( maximum )

< 1000Meters ( every increased 1000Meters decrease power1% , highest 5000Meters )

cooling method

Forced air cooling

NoisedB

≤58dB ( Depending on load and temperature ) Distance to machine1M

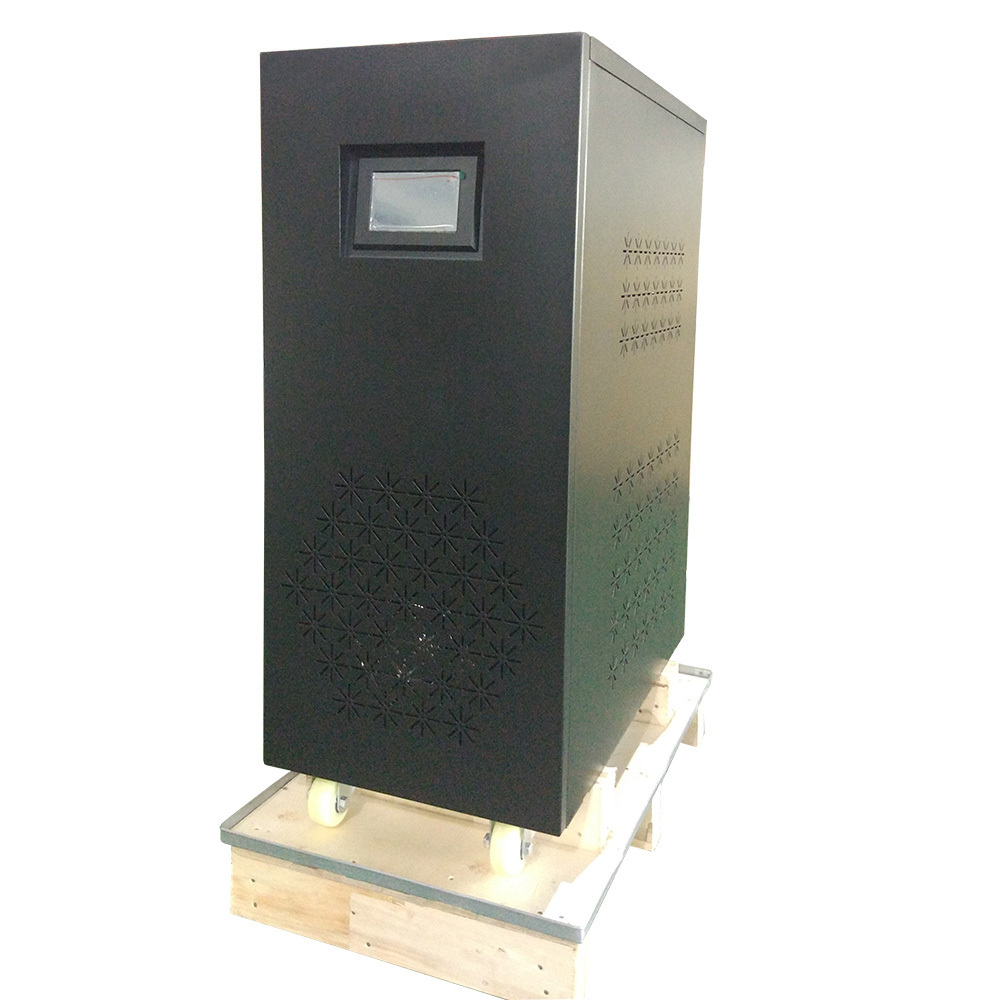

Case color

Black

Easy maintenance

The front / upper / left and right sides can be opened.

Size(L*W*H)mm

710*405*910

790*660*1550

Weight(kg)

125

135

155

175

260

290

310

360

* the above data for reference, if there is a change in kind prevail.
