Quick Details
-
Sensitivity:
-
High sensitivity
-
Charger voltage:
-
9V for AC or 10V for DC
-
Working hours:
-
40 hours continuously
-
Application:
-
Factory,School,Hospital,Prison,Court,Exhibition and so on
-
Model Number:
-
SE100100D
-
Features-1:
-
L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
-
Features-2:
-
High Resolution Color
-
Features-3:
-
LCD Accord, 17 inch (19 inch optional)
-
Features-4:
-
Edge enhancement, image strengthening
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SECUERA
-
Customize:
-
Support
-
Sensitivity:
-
High sensitivity
-
Charger voltage:
-
9V for AC or 10V for DC
-
Working hours:
-
40 hours continuously
-
Application:
-
Factory,School,Hospital,Prison,Court,Exhibition and so on
-
Model Number:
-
SE100100D
-
Features-1:
-
L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
-
Features-2:
-
High Resolution Color
-
Features-3:
-
LCD Accord, 17 inch (19 inch optional)
-
Features-4:
-
Edge enhancement, image strengthening
Used In Airport Subway Cargo Security Detector X-ray Luggage Scanner Equipment SE100100D X Ray Baggage Scanner
Specifications of SE-100100D X Ray Baggage Scanner
|
Tunnel size |
1000(W)x1000(H) mm |
|
Conveyor speed |
0.2m/s |
|
Conveyor max load |
200kg |
|
Single inspection dosage |
<1.5upGyq |
|
Wire resolution |
0.1mm metal line |
|
Steel penetration |
30mm amor plate |
|
Film safety |
For ISO 1600 |
|
Maxmum leakage |
Radiation: <0.3ugy/H |

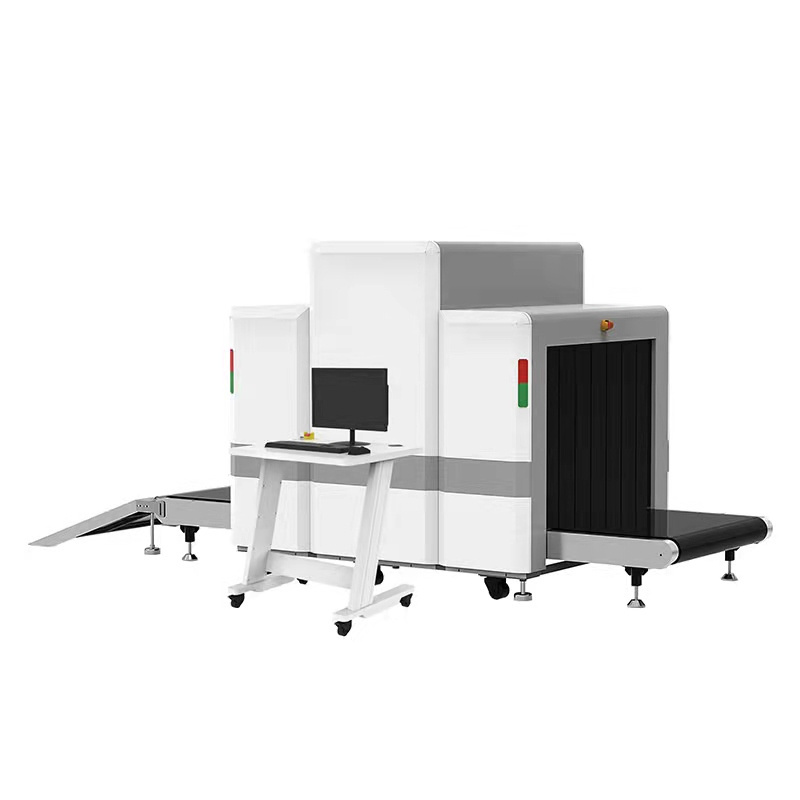

Real Photos of SE-100100D X Ray Baggage Scanner
Highlight
Image performance system
X-ray sensor: 1 Type photo-diode array detector, 12bit
Monitor: High resolution 17inch color led display
Color quality: 24 bit real colors
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetrate strength display: Increase brightness of dark area in image to diplay object which is behind high absorption mass distinctly
Low penetrate strength display: Increase brightness of image/decrease brightness of image
Image recurrence: Display previous twenty images and process any one of them
Image restoration: Restore image to initial status at the time of stopping conveyor
Image storing: Real time store any image and process it in operation status
Multi-energy function
Multi-energy color: Display organic material for orange, display inorganic material for blue, and display mixture for green
High enery/low energy: Switch to display tow energy type, high energy stands for metal etc, low energy stands for non metallic
Auxilitay function for drugs &explosives: Help to detect such dangerous material as drugs&explosives ect
Audible&visible alarm: Give sound and visible signal when confirming to condition
Main Advantages
|
Storage temperature |
-20° C to 60° C |
|
Operating temperature |
0 ° C to 45 ° C |
|
Relative humidity |
20 to 95% non-condensing |
|
System power |
220VAC (± 10%) 50± 3HZ |
|
Power wastage |
1.0KW(max) |
|
Noise |
<60DB |
Application places
Factory, airport security, stadium, entertainment, etc
General Information
Place of OriginShenzhen, China
Brand NameSunleader
Model NumberSE-100100D
CertificationISO9001: 2008
Commerce clauses
MOQ: 1 SET
Payment Terms: By T/T, Western Union, cash
Supply Ability: 3000pcs / month
Warranty time: One year
