Quick Details
-
Weight (KG):
-
200
-
Product name:
-
Metal Tube Pipe External Polishing Machine For Stainless Steel
-
Application:
-
Round pipe
-
Function:
-
Metal Surface Grinding Polishing
-
Advantage:
-
Polishing Finishing
-
Voltage:
-
380V/220V
-
Material:
-
Stainless Steel Aluminum
-
Motor power:
-
3kw/4kw
-
After Warranty Service:
-
Technical Video Support
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Rujie
-
Power (kW):
-
4
-
Weight (KG):
-
200
-
Product name:
-
Metal Tube Pipe External Polishing Machine For Stainless Steel
-
Application:
-
Round pipe
-
Function:
-
Metal Surface Grinding Polishing
-
Advantage:
-
Polishing Finishing
-
Voltage:
-
380V/220V
-
Material:
-
Stainless Steel Aluminum
-
Motor power:
-
3kw/4kw
-
After Warranty Service:
-
Technical Video Support

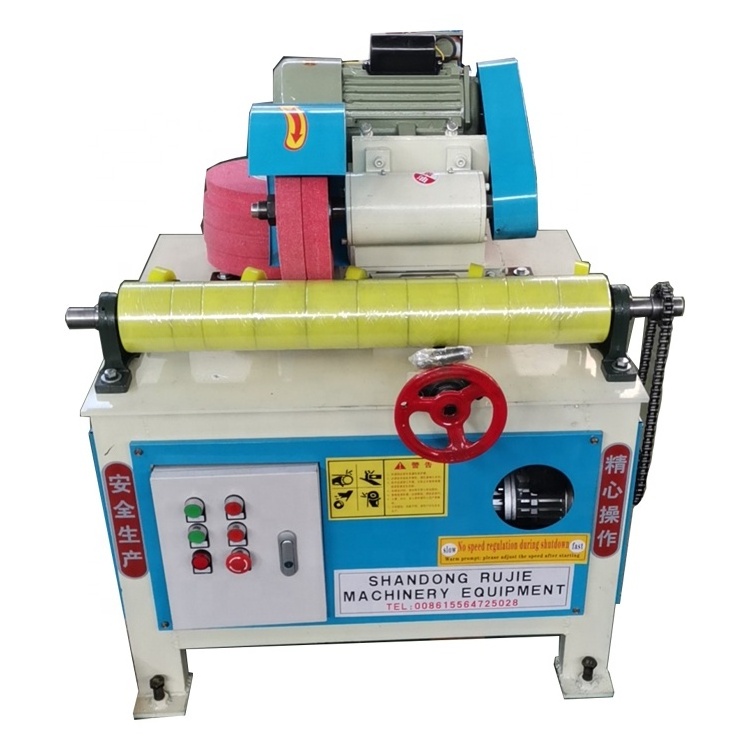

Metal Tube Pipe External Polishing Machine For Stainless Steel
This machine is mainly used in: hardware, electroplating, steel wood furniture, standard parts, automobile and motorcycle parts and hydraulic transmission and other manufacturing industries.For a variety of axial, bar, pipe fittings cylindrical surface polishing, suitable for lathe processing after the work
piece fine polishing.
1. Suitable for all kinds of pipes and axial surface polishing cleaning.
2. Recommended grinding consumables: nylon wheel, thousand impeller, lapping wheel (EXL, LD, CP) effectively combines with the principle of centerless grinding, the work
piece cylindrical grinding quality stable and reliable, and automatic feeding.
3. The operation is simple, stable performance, can waterproof, oil and dry grinding.
4. Speed control device can be configured and equipped with environmental protection function.
Technical parameter
|
Model |
RJR-80 |
RJR-120 |
RJR-150 |
RJR-200 |
|
Polishing wheel motor power |
3KW |
3KW |
4KW |
4KW |
|
0.4KW |
0.4KW |
0.8KW |
0.8KW |
|
|
Total power |
3.4KW |
3.4KW |
4.8KW |
4.8KW |
|
Light voltage |
36V |
36V |
36V |
36V |
|
32MM |
32MM |
32MM |
32MM |
|
|
230MM |
230MM |
260MM |
260MM |
|
|
The largest wheel diameter |
300MM |
300MM |
300MM |
300MM |
|
Maximum thickness of the wheel |
160MM |
160MM |
160MM |
160MM |
|
Pipe diameter range |
1-80MM |
1-120MM |
1-150MM |
20-200MM |
|
6000MM |
6000MM |
6000MM |
6000MM |
|
|
Polishing wheel spindle speed |
2800r/min |
2800r/min |
2800r/min |
2800r/min |
|
0-200r/min Adjustable |
0-200r/min Adjustable |
0-200r/min Adjustable |
0-200r/min Adjustable |
|
|
Working speed |
0-10m/min Adjustable |
0-10m/min Adjustable |
0-10m/min Adjustable |
0-10m/min Adjustable |
|
Dust environmental |
Optional |
Optional |
Optional |
Optional |
|
Wet behind function |
Optional |
Optional |
Optional |
Optional |
|
Weight |
320kg |
360kg |
420kg |
460kg |
|
Size |
900*700*1200mm |
1100*800*1200mm |
1200*800*1200mm |
