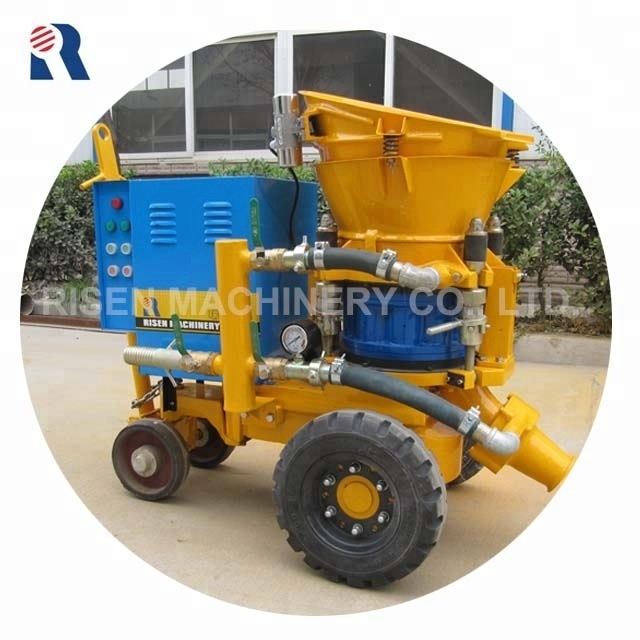

dry mix gunite machine - guniting machine 5m3/hour for dry and damp ready mix shotcreting

RISEN has engaged in the manufacturing and export of RISEN PZ-5 dry gunite machine / guniting machine since 2004. Among RISEN PZ series, the PZ-5 is a middle-size model with output 5m3/hour and is a very popular model, mainly applied for dry or damp mix shotcreting.

Based on the excellent quality, mature work principle and competitive price, RISEN PZ-5 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc.

Note: *Railway wheel or Skid Steel is optional.

• Shotcreting for tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
• Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
• Refractory spraying and repair for industrial kilns or kilns’ inner liner.

• Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
• Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
• Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
• Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
• For the most specific risks of this machine, safety and compliance with the essential health and safety requirements of the Directive 2006/42/EC

• High-accuracy Gearbox, high clean degree inside;
• High wear resistance and longer use life consumable parts;
• Military standard solid wheels for different construction site;
• IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box     strictly as the CE safety standard;
• National standard bearing, valve and screw etc.;
• All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
• The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
• Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
• Painted after sandblasting for a pretty appearance ;

CE certificate

Sea-worthy Package
