1,Since flake ice has a large surface area[thickness 1.8mm ~2.2 mm] , a target object can be cooled down quickly.
2,Particularly, it can ideally be used for solving a target object in water and then rapidly freezing it.
3,Because of a flake shape, the ice would fall down the gap and blocking the surrounding heat when directly covering the target object with it. For this reason, the ice effectively maintains its freezing temperature.
4,Since a product is instantaneously frozen at -25℃, the freshness of vegetables can be preserved in low temperature and also superior to preserve delicate fishes such as saury and sweetfish in cold temperature.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
15000kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robin
-
Dimension(L*W*H):
-
1700*1200*1200
-
Weight:
-
550 KG
-
Product name:
-
ice flake machine 2.5t flake ice making machine discount Price
-
Keyword:
-
ice flake machine 2.5t
-
Capacity:
-
50000 kg per day
-
Cooling way:
-
Air Cooling System
-
Material:
-
SUS304 stailess steel
-
Compressor:
-
Copeland
-
Refrigerant:
-
R22 or R404a
-
Ice size:
-
1.6mm-2.3mm
-
Marketing Type:
-
New Product 2020
Quick Details
-
Ice Shape:
-
Flake Ice
-
Voltage:
-
380v/50hz/3p or customization
-
Power:
-
11KW
-
Ice storage capacity:
-
15000kg
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Robin
-
Dimension(L*W*H):
-
1700*1200*1200
-
Weight:
-
550 KG
-
Product name:
-
ice flake machine 2.5t flake ice making machine discount Price
-
Keyword:
-
ice flake machine 2.5t
-
Capacity:
-
50000 kg per day
-
Cooling way:
-
Air Cooling System
-
Material:
-
SUS304 stailess steel
-
Compressor:
-
Copeland
-
Refrigerant:
-
R22 or R404a
-
Ice size:
-
1.6mm-2.3mm
-
Marketing Type:
-
New Product 2020
Product Description

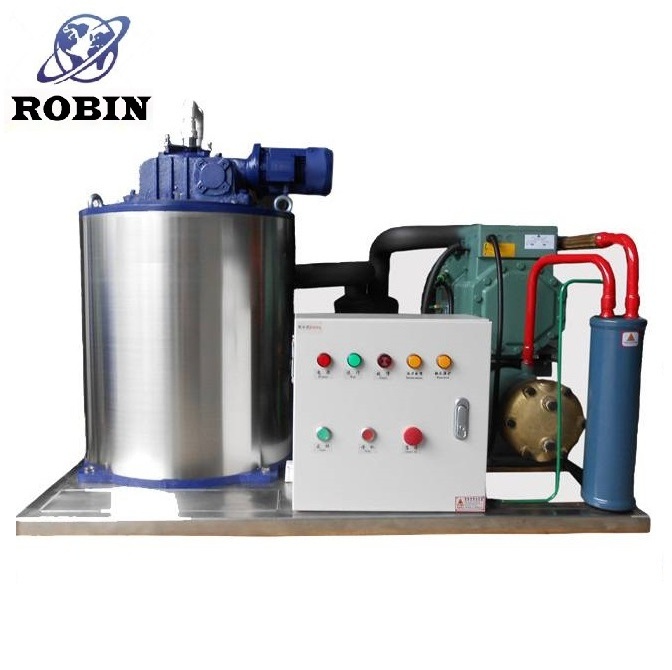

The small series of ROBIN ice flake machine always used in the supermarket or seafood restaurant for its clean ice and convenience as well as low cost to keep the food fresh.The flake ice is warmly welcomed for its cleanness, shapeliness,whiteness,glittering and translucent as well as low temperature to firstly keep the food fresh such as fish,meat and chicken,then show a good view to the visitor and customer.
Basic Product Requirement
1.Evaporator material：inner wall：Q345 high efficiency alloy steel chrome plated, exterior surface：SUS 304; middle insulation layer: polyurethane;Upper and lower base: ZL301;
2.Water cooling type: fresh water to make ice and for condenser cooling;
3. Use Copeland, Danfoss scroll compressor or Bitzer piston compressor (Type:4GE-23Y-40P)；
4.Standard power supply: 3P/220-380V/50-60HZ；R404A as refrigerant；
Ice storage room requirement: ice storage bin or ice cold room custom made;
Flake ice is a thin and dried ice at freezing temperature.
Flake Ice Application
The characteristics of thin flake ice machine, large contact area, and long-lasting cold storage effect make flake ice machine widely used in the Dye-chemistry industry, large concrete project, large crude and fresh supermarket, meat process, large fishery wholesale market, food processing company and more.
Main brands on Flake Ice Machine
Parameters of Flake Ice Machine
|
Model
|
RBF-1T
|
RBF-2T
|
RBF-3T
|
RBF-5T
|
RBF-8T
|
|||||
|
Capacity(Tons/24hours)
|
1
|
2
|
3
|
5
|
8
|
|||||
|
Refrigerant
|
E404A
|
R404A
|
R22/R404A
|
R22/R404A
|
R22/R404A
|
|||||
|
Compressor Brand
|
Danfoss
|
Maneurop/Bitzer
|
Bitzer/Copeland
/
Bock
|
Bitzer/Copeland/Bock
|
Bitzer/Copeland/Bock
|
|||||
|
Compressor Power(KW)
|
4.5
|
7.5
|
9
|
15
|
22.5
|
|||||
|
Molor Power(KW)
|
0.37
|
0.37
|
0.37
|
0.37
|
0.75
|
|||||
|
Ciculating Water Pump (KW)
|
0.15
|
0.15
|
0.15
|
0.15
|
0.4
|
|||||
|
Cooling Water Pump (KW)
|
/
|
/
|
/
|
2.2
|
4
|
|||||
|
Cooling Fan Motor (KW)
|
0.22
|
0.75
|
0.75
|
1.5
|
1.5
|
|||||
|
Length (MM)
|
1420
|
1770
|
1770
|
2100
|
2400
|
|||||
|
Width (MM)
|
840
|
1120
|
1130
|
1500
|
2200
|
|||||
|
Height (MM)
|
1080
|
1220
|
1330
|
1580
|
1850
|
|||||
|
Weight(KG)
|
750
|
980
|
1100
|
1400
|
1900
|
|||||
|
Cooling Way
|
Air Cooling
|
Air Cooling
|
Air/Water Cooling
|
Air/Water Cooling
|
Water Cooling
|
|||||
|
We also have 0.5T, 10T, 12T, 20T model for your choice, you can contact with me
|
|
|
|
|
|
|||||
