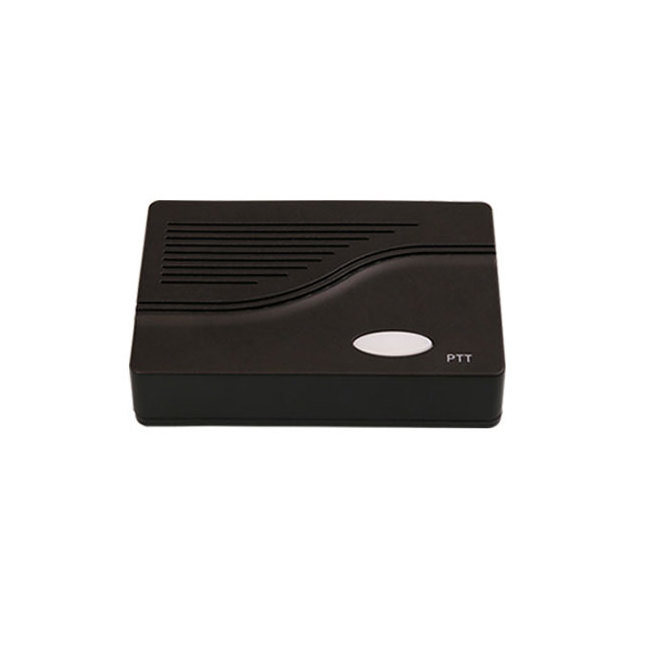

1 Radio Channel Gateway

1-PPT Port Cross-Network Gateway RoIP102 is to convert the audio and PTT signals in a radio terminal into IP packets and then transmit the data via the IP networks. Generally, the radio range is limited by the restricted transmitting power, antenna sensitivity and other environmental factors. RoIP technology is developed to solve those problems and insure that the audio is transmitted in real time and the PTT signals are transmitted immediately and reliably, making the long distance voice communication across multiple networks possible.

Key Features

• Media NAT traversal

• Support private DDNS service

• Support P2P connection without server

• Support remote control management

• InterConverting between Radio group and IP networks

• Radio communication across multiple networks without distance limit

Physical Features

• PTT Port: 1

• Power Adapter: DC 12V/500mA

• CPU: ARM9/300MHz

• RAM: 16M

• Flash: 4M

• Net Weight:0.09kg

• Size:10*6.7*2.3(cm)

• Color: Black

• Operating Temperature: 0-45℃

• Working Humidity: 40%-90% non-condensation

Soft Features

• VoIP Protocols:  SIP V2

• Supply dynamic DNS service

• Line Echo Cancellation

• NAT Transversal and Router functions

• Support IP voice stream to via a recording server

• Highly stable embedded Linux operating system

• Enhanced Features

• Voice Code: g711(alaw/ulaw), g729, g723.1

• Auto adapt jitter buffer

• Router

• Voice activity detection (VAD)

• On line firmware upgrade

• Multi-language: English and Chinese
