Quick Details
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Non-Integrated
-
Brand Name:
-
Gooxi
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

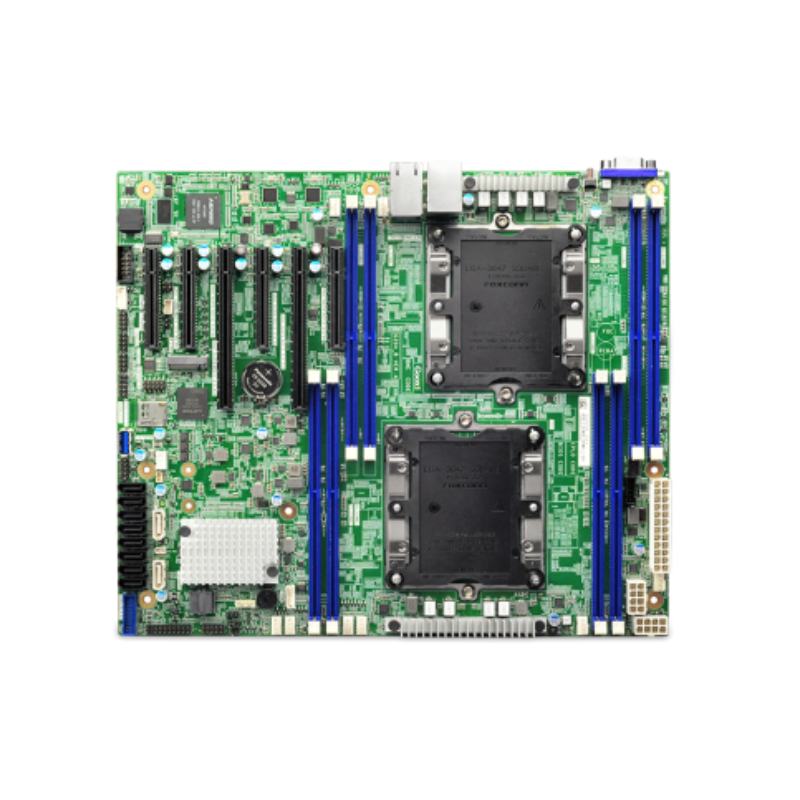

G2DA-B ATX standard motherboard
-
Keywords:
-
G2DA-B ATX motherboard
-
Model Number:
-
G2DA-B
-
Processor Type:
-
xeon 1st/2nd Gen cpu
-
Memory Support:
-
8 DDR4 2933/2666/2400MHz LRDIMM/RDIMM
-
Network:
-
2 RJ45 Gigabit
-
PCIE:
-
PCI-Express 3.0 x4
-
Warranty:
-
1 Year
-
Weight:
-
15kg
Quick Details
-
Maximum Ram Capacity:
-
128 GB
-
Application:
-
Server/Workstation
-
Form Factor:
-
ATX
-
Memory Type:
-
DDR4
-
Graphics Card Type:
-
Non-Integrated
-
Brand Name:
-
Gooxi
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
G2DA-B ATX standard motherboard
-
Keywords:
-
G2DA-B ATX motherboard
-
Model Number:
-
G2DA-B
-
Processor Type:
-
xeon 1st/2nd Gen cpu
-
Memory Support:
-
8 DDR4 2933/2666/2400MHz LRDIMM/RDIMM
-
Network:
-
2 RJ45 Gigabit
-
PCIE:
-
PCI-Express 3.0 x4
-
Warranty:
-
1 Year
-
Weight:
-
15kg
Products Description
Feature Highlights:
* Supports 1/2 1st Gen/2nd Gen Intel@ Xeon Scalable Series processors with a TDP of up to 140W
* The memory uses 8 DIMM Dual Channels, and supports up to 1TB ECC RDIMM/LRDIMM
* Motherboard supports 2 x PCI3.0 x16, 3x PCI3.0 x8 and 1 x PCI3.0 x4 (in x8 slot)
* The motherboard PCH supports up to 10 SATA 3.0 ports and supports RAID 0, 1, 5, and 10
* The motherboard has 2 Gigabit network controllers on board
* The motherboard adopts ultra-low Rds(on) resistance power MOS transistor and optimized DC-DC switching power supply design, with a power conversion rate of more than 90%. The tailor-made BIOS reduces power consumption by turning off unnecessary functions, and the BMC chip uses temperature monitoring to precisely adjust the fan speed to save energy
* The G2DA-B motherboard has a separate IPMI Gigabit management network port for remote management and control, as well as KVM functionality.
* Supports 1/2 1st Gen/2nd Gen Intel@ Xeon Scalable Series processors with a TDP of up to 140W
* The memory uses 8 DIMM Dual Channels, and supports up to 1TB ECC RDIMM/LRDIMM
* Motherboard supports 2 x PCI3.0 x16, 3x PCI3.0 x8 and 1 x PCI3.0 x4 (in x8 slot)
* The motherboard PCH supports up to 10 SATA 3.0 ports and supports RAID 0, 1, 5, and 10
* The motherboard has 2 Gigabit network controllers on board
* The motherboard adopts ultra-low Rds(on) resistance power MOS transistor and optimized DC-DC switching power supply design, with a power conversion rate of more than 90%. The tailor-made BIOS reduces power consumption by turning off unnecessary functions, and the BMC chip uses temperature monitoring to precisely adjust the fan speed to save energy
* The G2DA-B motherboard has a separate IPMI Gigabit management network port for remote management and control, as well as KVM functionality.
Specification
|
Motherboard model
|
G2DA-B Standard ATX motherboard
|
|
Plate type
|
E-ATX; (12.07”x 10.15”)
|
|
processor
|
Supports 1/2 x 1st/2nd Gen Intel ® Xeon ® Scalable Series processors with a TDP of up to 140
|
|
Chipset
|
Intel® C621
|
|
memory
|
8 DDR4 memory slots, supporting DDR4 2933/2666/2400MHz LRDIMM/RDIMM
|
|
PCle slots
|
Slot1：PCI-Express 3.0 x4（in x8 Slot) from CPU0
Slot2：PCI-Express 3.0 x8 from CPU0 Slot3：PCI-Express 3.0 x16 from CPU1 Slot4：PCI-Express 3.0 x8 from CPU0 Slot5：PCI-Express 3.0 x16 from CPU0 Slot6：PCI-Express 3.0 x8 from CPU |
|
Rear I/O interface
|
1 RJ45 management network port, 1 M.2 (SATA/PCIe 3.0 x4) port
, 8 SATA ports |
|
On-board interface
|
1 VGA, 2 USB3.0, 1 management network port, and 2 RJ45 network ports
|
|
power supply
|
Standard 24pin ATX power input, 2 x 8pin power connections
|
|
Internet
|
1 management network port and 2 RJ45 network ports
|
|
display
|
Rear LED:UID LED; In the board: PWROK LED, BMC Heartbeat LED, CPLD LED, M.2 Active LED
|
|
manage
|
1 dedicated management network port
|
|
security
|
TPM modules are supported
|
|
operating system
|
Microsoft Windows Server、Red Hat Enterprise Linux、 SUSE Linux Enterprise Server、CentOS、Ubuntu
|
|
Operating temperature
|
Temperature: 5°C~35°C/Humidity: 20%~80%RH Non-condensing
|
|
Working Temperature
|
5ºC - 35ºC (indoor) Storage temperature: 40ºC - 70ºC
|
