ATEX explosion proof ammonia gas detector for poultry farm analyzer NH3 gas leakage alarm monitor

ATEX explosion proof ammonia gas detector for poultry farm analyzer NH3 gas leakage alarm monitor

FOB Reference Price: Get Latest Price

≥1 Pieces

US $180

≥20 Pieces

US $170

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Huafan

Model Number:: HFT-NH3(LED)

Product name:: Fixed LED ammonia NH3 gas detector

Sensor type:: Eletrochemistry NH3 Sensor

Sampling method:: Natural Diffusion

Detecting Gas:: Ammonia NH3

Measure Range:: 0-200ppm support customization

Signal output:: 4-20mA(RS485 is optional)

Display:: LED Display(No display and LCD display are optional)

Working Voltage:: DC24V

Temperature:: - 20 ℃ ~ 50 ℃

Resolution:: 1ppm

Quick Details

Type:: Fixed

Warranty:: One year

Place of Origin:: Shaanxi, China

Brand Name:: Huafan

Model Number:: HFT-NH3(LED)

Product name:: Fixed LED ammonia NH3 gas detector

Sensor type:: Eletrochemistry NH3 Sensor

Sampling method:: Natural Diffusion

Detecting Gas:: Ammonia NH3

Measure Range:: 0-200ppm support customization

Signal output:: 4-20mA(RS485 is optional)

Display:: LED Display(No display and LCD display are optional)

Working Voltage:: DC24V

Temperature:: - 20 ℃ ~ 50 ℃

Resolution:: 1ppm

Products Description

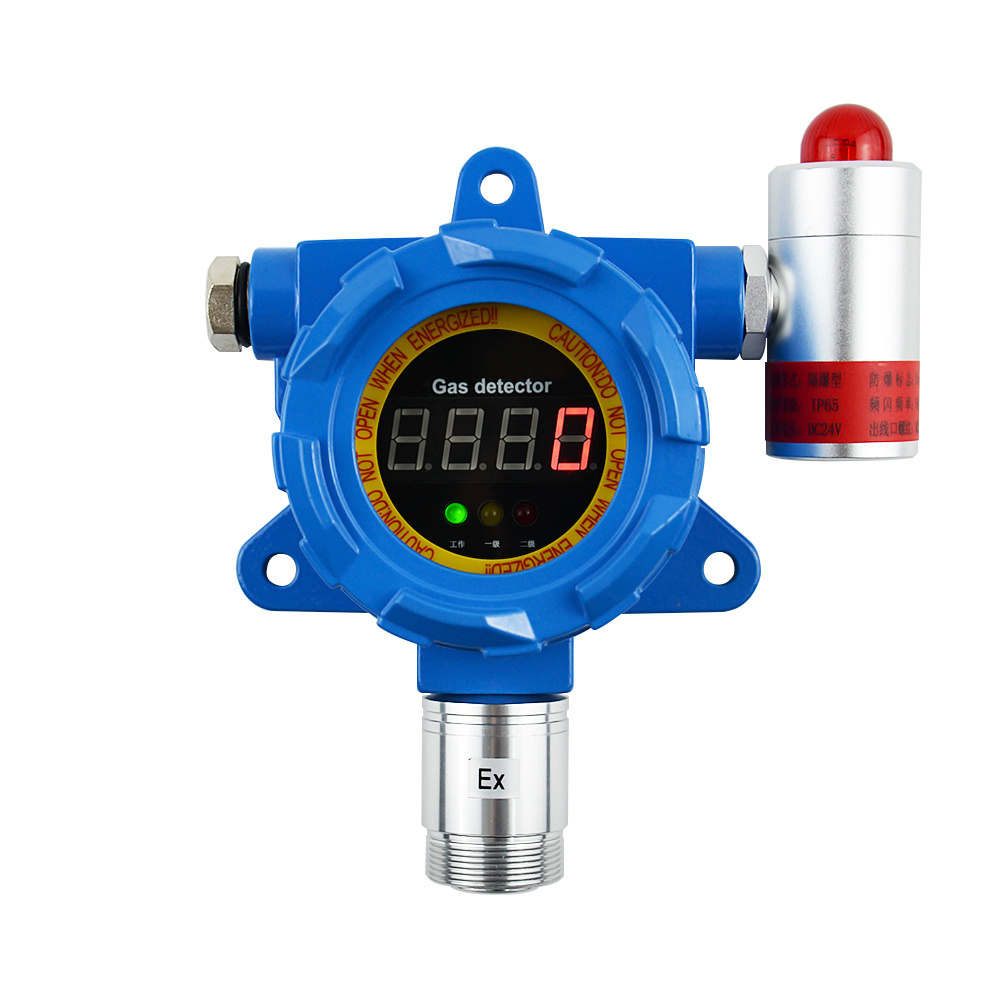

ATEX explosion proof ammonia gas detector for poultry farm analyzer NH3 gas leakage alarm monitor

Fixed LED display ammonia detector test NH3 concentration by natural diffusion.It uses imported gas sensor from UK with very high sensitivity and accuracy, 4-20mA analog signal output and RS485 digital signal output are optional.

Brief Introduction:

● UK imported sensors

● High accuracy and sensitivity

● LED digital display

● High & low alarm points

● DC24V power supply

● 4-20mA and RS485 optional
● Water and dust proof

● Relay switch signal

● Aluminum shell material

● Industrial explosion-proof
● CE ,ATEX,ISO approved
● One year warranty

Details Images

Install Instructions

This fixed NH3 gas detector usually uses together with alarm light and control panel,when the gas concentration exceed the alarm points,the light and controller will send out alarms to reminder for danger.

Product Features

1) Imported UK sensitive sensor; 2) LED and LCD display are optional; 3) Water proof,dust proof and explosion proof; 4) Low and high alarm points,can be set by user ; 5) Detect ammonia gas concentration by natural diffusion mode; 6) DC24V power supply,24hours continuous monitoring ; 7) 4-20mA output,RS485 digital output are optional ; 8) Simple menu operation, complete functions and high reliability; 9) Can output one or two on-off signals, can drive ventilator or solenoid valve ; 10) Having strong anti-jamming capability, convenient layout and simple wiring; 11) Can be connect with gas controller and alarm light,default without them; 12) Adopts aluminum shell material with high strength, heat resistance and corrosion resistance; 13) ISO9001,CE, ATEX,CNEX explosion proof certificates are approved; 14) 100% strictly inspection before package and fast delivery.

Product Paramenters

Product name	ATEX explosion proof ammonia gas detector for poultry farm analyzer NH3 gas leakage alarm monitor
Size and weight	14419091mm, 1335g
Sensor types	electrochemistry method
Destination gas	Ammonia NH3
Measure range	0-200ppm,resolution is 1ppm,support customization
Working pattern	continuous work
Working voltage	DC24V
Display	LED display(No display and LCD display are optional)
Alarms(Optional)	Interlligent sound and red light alarms need extra 18$
Output signal	4-20mA (RS485 digital signal is optianal)
Output way	three wire system can output a set of relay switch signal
Temperature range	- 20 ℃ ~ 50 ℃
Humidity	15% ~ 90% RH (No condensation)
Explosion-proof number	CE10 1084
Explosion-proof marks	Exd II CT6
Transmission cables	three-wire system adopts three core shielded cable 3 x 1.5 mm2
Transmission distance	＜ 1000 m
Certificate	CE, ATEX, CNEX, ISO9001
Standard package	Gas detector, Instruction in English, Certificate, carton package
Optional	sound and light alarm light, multi gas alarm controller

Related gas detector

Tips: Not only for NH3 gas, CO CO2 H2 LPG SO2 NOx CL2 HCL O3 PH3 O2 etc gases also can be detected,support customization,please contact us for more details.

Application & Cases

This fixed ammonia gas detector is suitable for detecting the concentration of NH3 in ambient air,
widely used in hennery, poultry farm , cesspit, chemical industry, mines, tunnels, underground pipelines and other places, to effectively prevent the occurrence of poisoning.

Why Choose Us

1. More than 16 years professional gas alarm detection factory
2. Rich experience of exporting to many countries
3. Advanced technology and develop team
4. Strictly supervision and inspection system
5. Competitive price and satisfied service
6. Fast and safe delivery
7. OEM and ODM are welcomed
8. One year warranty and free maintenance within warranty period

9. "Very satisfied" and "working well" etc appraise from our customers all over the world.

Customer Feedback

Product packaging

Certifications

Our gas detector has industrial production standards and international export standards， We focus on the production of products that meet the standards to provide the greatest guarantee for industrial safety.
