Quick Details
-
Mounting Type:
-
Non contact working mode
-
Description:
-
Metal proximity switch, Inductive Sensor
-
Model Number:
-
BL-JJ-SP131
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beelee
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Max.switching power:
-
10W
-
Max.switching voltage(DC):
-
180V
-
Max.switching voltage(AC):
-
130V
-
Max.switching current(DC):
-
250mA
-
Max.switching current(AC):
-
250mA
Quick Details
-
Usage:
-
Position Sensor
-
Series:
-
Proximxty Sensor
-
Features:
-
No standby power consumption
-
Mounting Type:
-
Non contact working mode
-
Description:
-
Metal proximity switch, Inductive Sensor
-
Model Number:
-
BL-JJ-SP131
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Beelee
-
Theory:
-
Inductance Sensor
-
Output:
-
Analog SENSOR
-
Max.switching power:
-
10W
-
Max.switching voltage(DC):
-
180V
-
Max.switching voltage(AC):
-
130V
-
Max.switching current(DC):
-
250mA
-
Max.switching current(AC):
-
250mA

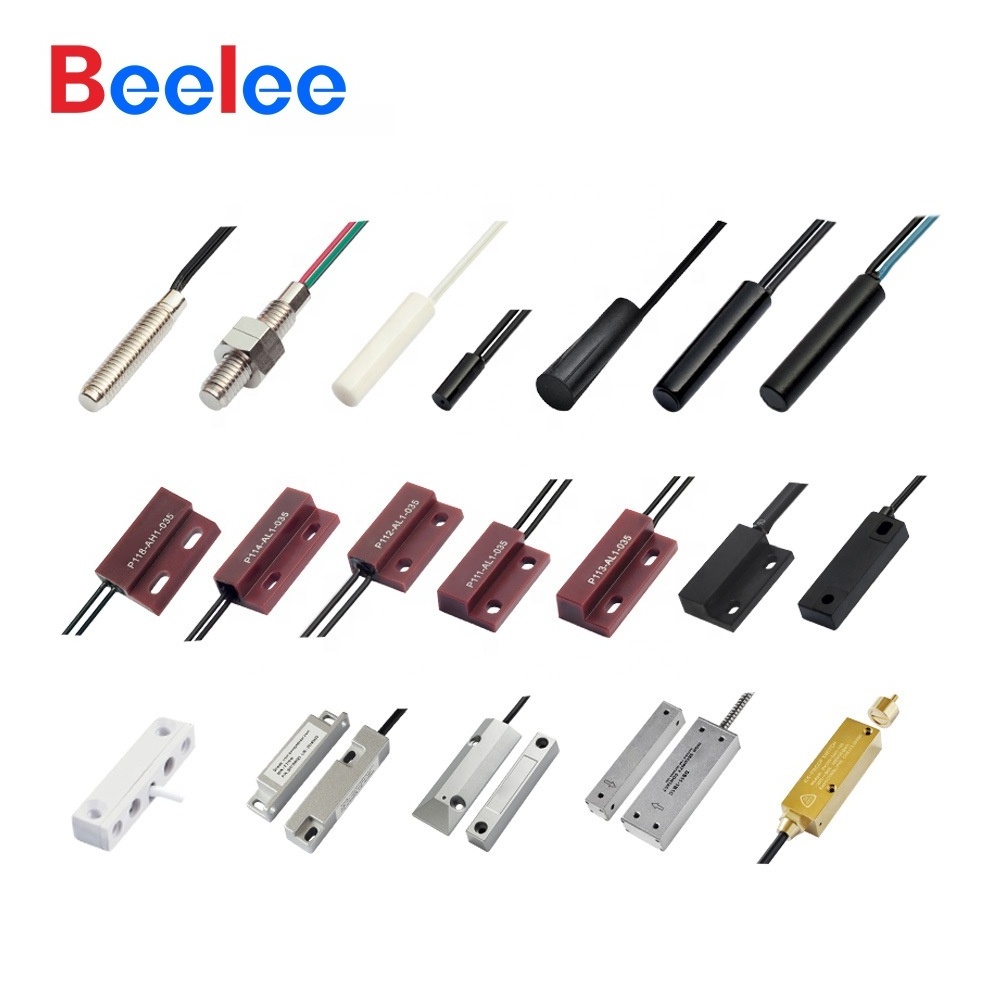

The working principle of the magnetic proximity switch is to generate a magnetic field around the sensor through the change of the position and polarity of the trigger to make the contact of the sensor act. The seal design life is at least 1 million times, and the installation is convenient. It can be adjusted according to different application environments of customers.
* Product specifications can be customized according to customer requirements.
| switch type | 1 | 2 | 3 |
| Max.switching power | 10W | 70W | 5W |
| Max.switching voltage(DC) | 180V | 200V | 175V |
| Max.switching voltage(AC) | 130V | 250V | 125V |
| Max.switching current(DC) | 250mA | 1000mA | 400mA |
| Max.switching current(AC) | 250mA | 1000mA | 280mA |
| Min.breakdown voltage | 180V DC | 450V DC | 200V DC |
| Max.load current | 1.5A | 1.75A | 0.5A |
| Max.contact impedance | 100mΩ | 90mΩ | 120mΩ |
| Min.insulation resistance | 106MΩ | 106MΩ | 106MΩ |
| Operating temperature range | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
| Note: the above parameters can be formulated according to the specific needs of customers | |||
