Quick Details
-
Brand Name:
-
Foclink or OEM
-
No. of Fiber:
-
96.
-
Use:
-
FTTX
-
Product name:
-
FTTX 96 Cores Fiber Optic Cable Cross Connect Cabinet
-
Name:
-
96 Cores Fiber Distribution Hub
-
Flassification:
-
Fiber Distribution Hub
-
Size:
-
450*840*280 mm
-
Material:
-
SMC
-
G.Weight:
-
26 kg
-
Application:
-
FTTH FTTB FTTX Network
-
Net weight:
-
24 KG
Quick Details
-
Type:
-
Racks & Enclosure
-
Model Number:
-
FTTX 96 Cores Fiber Optic Cable
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Foclink or OEM
-
No. of Fiber:
-
96.
-
Use:
-
FTTX
-
Product name:
-
FTTX 96 Cores Fiber Optic Cable Cross Connect Cabinet
-
Name:
-
96 Cores Fiber Distribution Hub
-
Flassification:
-
Fiber Distribution Hub
-
Size:
-
450*840*280 mm
-
Material:
-
SMC
-
G.Weight:
-
26 kg
-
Application:
-
FTTH FTTB FTTX Network
-
Net weight:
-
24 KG

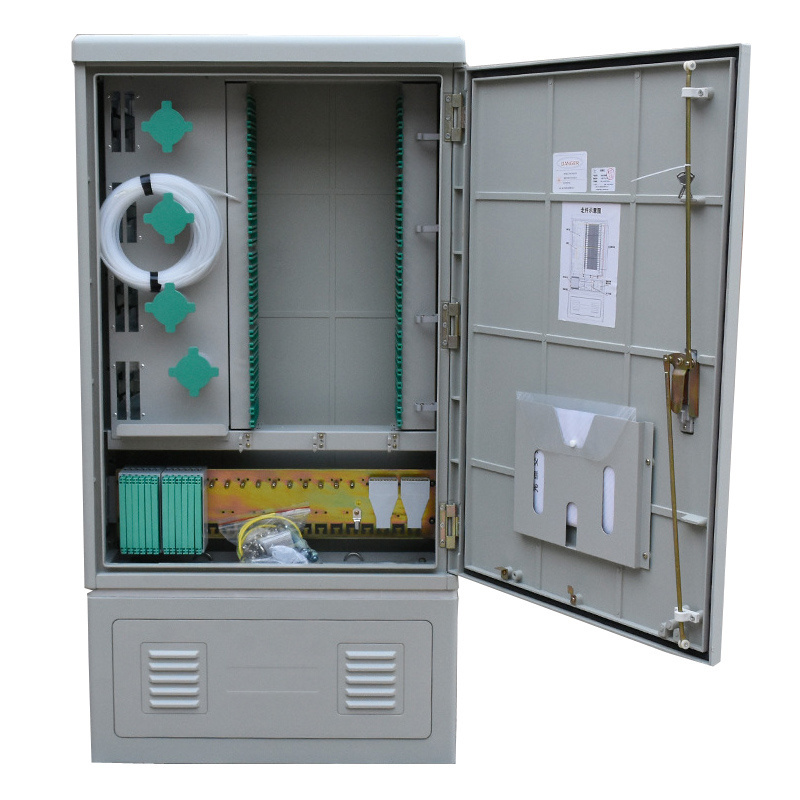

96 Cores Fiber Optic Cable Cross Connect Cabinet Fiber Distribution Hub For FTTH
96 Cores Fiber Optic Cable Cross Connect Cabinet Fiber Distribution Hub For FTTH
| Product name | 96 Cores Fiber Distribution Hub | Protection grade | IP55 |
| Operating Temperature | -40℃~60℃ | Product Size | 450*840*280 mm |
| Working environment | Outdoor | Packing quantity | 1 boxes per case |
| Function | FTTX network building | Net weight | 24 kg |
| Features | wet-proof,water-proof | Gross proudct | 26 kg |
Key Features:
1)SMC material used ensures the body strong and light.
2)Embedded the wall design for outdoor uses
3)Protection Level: IP55
4)Easy installations: Ready for wall mount – installation kits provided
5)Adapter slots used – No screws and tools needed for installing adapters
6)Ready for splitters: designed space for adding splitters
7)Space saving! Double-layer design for easier installation and maintenances
8)MAX.tray:8 pcs(96 cores)
9)Lower layer for splitters and over length fiber storage
10)Upper layer for splicing, cross-connecting and fiber distribution
11)Accommodates both cable glands as well as tie-wraps
12)Lock provided for extra security
Application :
1.Widely used in FTTH (Fiber To the Home) access network
2.Telecommunication Networks
3.CATV Networks
4.Data communications Networks
5.Local Area Networks
6.Suitable for Telekom UniFi
