Quick Details
-
Model Number:
-
GAP-G12004
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Digital Power Amplifier
-
Out power:
-
4X1200W 8Ω 4X1800W 4Ω
-
Frequency response:
-
20Hz-20KHz(+0/-1dB)
-
THD+N:
-
<0.15%
-
S/Nrate:
-
>100dB
-
Damping factor:
-
>500
-
Slew rate:
-
>10V/us
-
Input sensitivity:
-
0.775/1.0/1.4v
-
Input impedonce(bal/unbal):
-
20kΩ /10kΩ
-
Voltage gain(8ohm):
-
41.2dB
Quick Details
-
Type:
-
Professional Amplifier
-
Channels:
-
4
-
Brand Name:
-
Recordio
-
Model Number:
-
GAP-G12004
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Digital Power Amplifier
-
Out power:
-
4X1200W 8Ω 4X1800W 4Ω
-
Frequency response:
-
20Hz-20KHz(+0/-1dB)
-
THD+N:
-
<0.15%
-
S/Nrate:
-
>100dB
-
Damping factor:
-
>500
-
Slew rate:
-
>10V/us
-
Input sensitivity:
-
0.775/1.0/1.4v
-
Input impedonce(bal/unbal):
-
20kΩ /10kΩ
-
Voltage gain(8ohm):
-
41.2dB

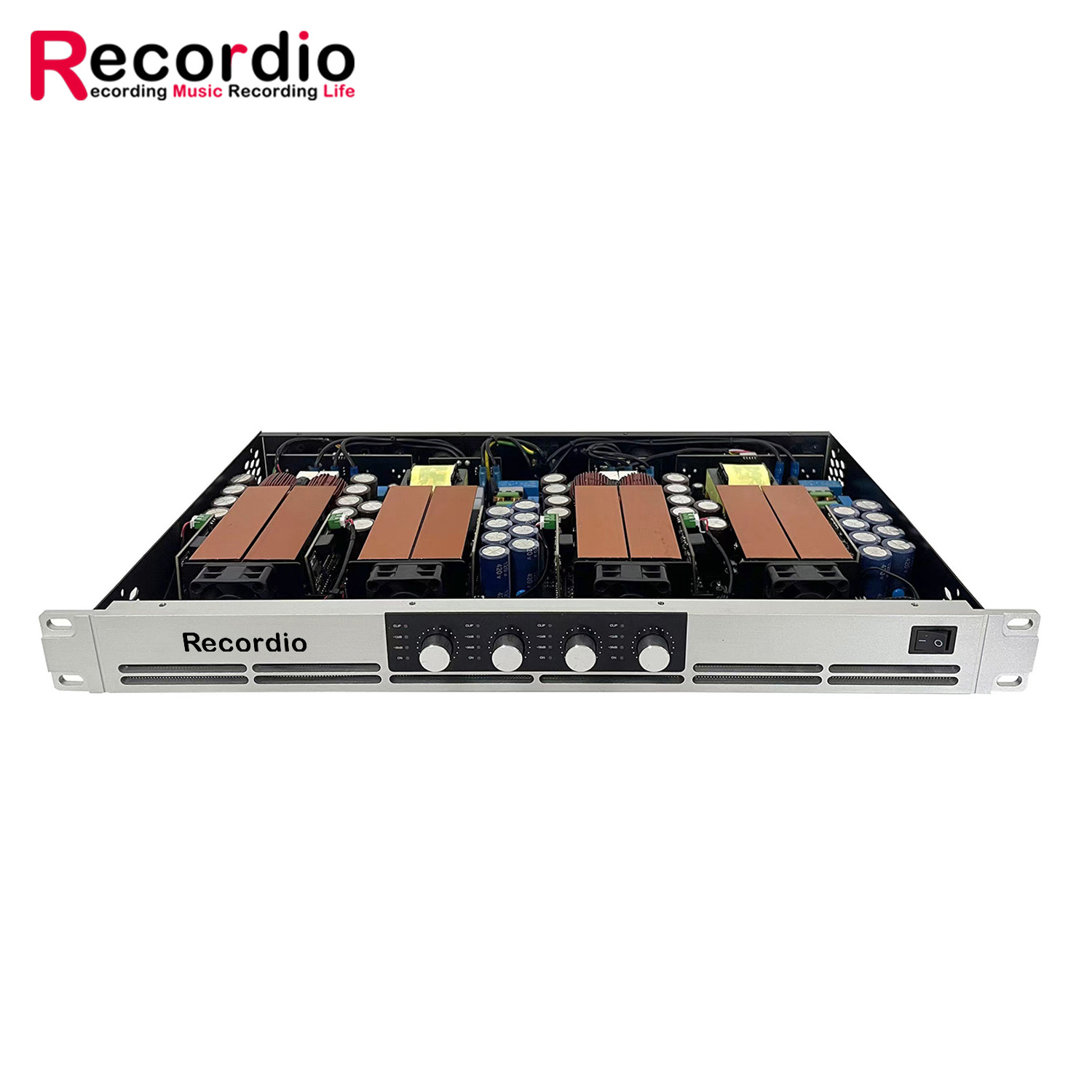

GAP-G12004 Sound Town Ultra-Lightweight 1U 4-Channel PA DJ Power Amplifier 4 x 1200W at 8 ohm Supports 2 4 8 ohm Digital Power Amplifier
Product Description
Specification
Product features:
1.This is the latest class D (Pulse-density modulation) power amplifier with ultrlowloss and superior sound quality.
2.AC power supply fluctuation purification, grounding noise bi-directional drainagepurification, signal source noise secondary purification, constant distortion-frecpower control, complex reactance phase shift control, speaker dynamic energyrecovery ,etc .
3.This product adopts dual channel cirect air dust-proofheat dissipation svstem to enhanceheat dissipation efficiency and enhance product stability and durability.
4.lthas the function oflimiting amplitude, limiting current, DC, overheating and anti impactprotection of switch machine.
5.Small size, strong power, easy to carry and install, specially designed for line array speaker instage performance.
1.This is the latest class D (Pulse-density modulation) power amplifier with ultrlowloss and superior sound quality.
2.AC power supply fluctuation purification, grounding noise bi-directional drainagepurification, signal source noise secondary purification, constant distortion-frecpower control, complex reactance phase shift control, speaker dynamic energyrecovery ,etc .
3.This product adopts dual channel cirect air dust-proofheat dissipation svstem to enhanceheat dissipation efficiency and enhance product stability and durability.
4.lthas the function oflimiting amplitude, limiting current, DC, overheating and anti impactprotection of switch machine.
5.Small size, strong power, easy to carry and install, specially designed for line array speaker instage performance.
|
Technical parameter
|
|
|
|
Out power
|
4X1200W 8Ω 4X1800W 4Ω
|
|
|
Frequency response
|
20Hz-20KHz(+0/-1dB)
|
|
|
THD+N
|
≤0.15%
|
|
|
S/Nrate
|
≥100dB
|
|
|
Damping factor
|
≥500
|
|
|
Slew rate
|
≥10V/us
|
|
|
Input sensitivity
|
0.775/1.0/1.4v
|
|
|
Inputi mpedonce(bal/unbal)
|
20kΩ /10kΩ
|
|
|
Voltage gain(8ohm)
|
41.2dB
|
|
|
Output circuitry
|
Class D
|
|
|
Cooling system
|
Airflow from front to rear
|
|
|
Protection system
|
Soft stortVHF, DC, short circuitover load cliplimit, over heat, progressive volume
|
|
