Quick Details
-
Model Number:
-
rubber hose
-
Product name:
-
Rubber Hose
-
Size:
-
Customized Size
-
Application:
-
Industrial hose pump
-
Length:
-
Customized
-
Working pressure:
-
Customized
-
Material:
-
NR/Customized
-
Color:
-
Black
Quick Details
-
Processing Service:
-
Moulding
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
gaodetec
-
Model Number:
-
rubber hose
-
Product name:
-
Rubber Hose
-
Size:
-
Customized Size
-
Application:
-
Industrial hose pump
-
Length:
-
Customized
-
Working pressure:
-
Customized
-
Material:
-
NR/Customized
-
Color:
-
Black
Products Description

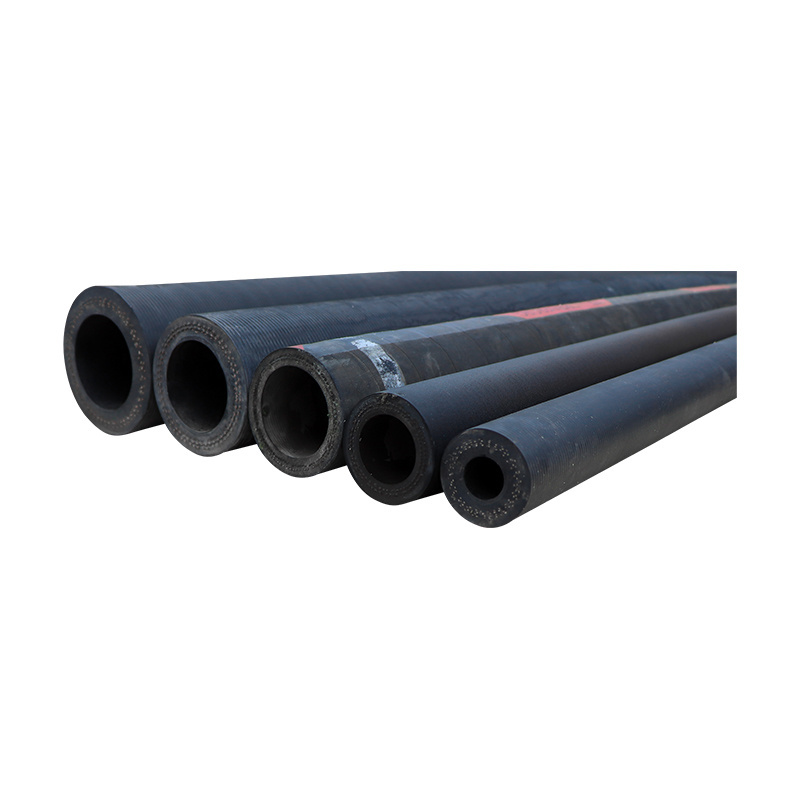

Factory direct sales of low pressure rubber hose for chemical industry size can customized
For hose pump, squeeze hose is the only wear part, hose pump could be used to pump different materials by changing different materials squeeze hose.
|
Hose Pump Model
|
Squeeze hose size (IDxOD)
|
Standard hose size
|
||
|
GH10
|
10x24
|
-
|
||
|
GH15
|
16x24
|
16x24x715mm
|
||
|
GH25
|
25x49
|
25x49x900mm
|
||
|
GH32
|
32x60
|
32x60x1030mm
|
||
|
GH38
|
38x66
|
38x66x1300mm
|
||
|
GH50
|
50x84
|
50x84x1400mm
|
||
|
GH65
|
65x100
|
65x100x2050mm
|
||
|
GH76
|
76x116
|
76x116x2300mm
|
||
|
GH100
|
100x148
|
100x148x2600mm
|
||
|
GH125
|
125x175
|
125x175x2650mm
|
||
|
Hose length could be customized according to the customers’ requirement.
|
|
|
||
Feature
Packaging&Shipping
Hoses are
put into the plywood box.
Related Product
|
Hose pump model
|
Output capacity
|
Pressure
|
Rotate Speed
|
Squeeze Hose ID
|
Motor Power
|
|||||
|
GH15-200
|
0.3m3/h
|
1.5Mpa
|
60rpm
|
15mm
|
0.75Kw
|
|||||
|
GH25-265
|
0.6m3/h
|
1.5Mpa
|
36rpm
|
25mm
|
1.5Kw
|
|||||
|
GH32-330
|
1.3m3/h
|
1.5Mpa
|
36rpm
|
32mm
|
2.2Kw
|
|||||
|
GH38-430B
|
2.2m3/h
|
1.5Mpa
|
32rpm
|
38mm
|
3Kw
|
|||||
|
GH50-445B
|
4.6m3/h
|
1.5Mpa
|
38rpm
|
50mm
|
4Kw
|
|||||
|
GH50-558B
|
6m3/h
|
1.5Mpa
|
40rpm
|
50mm
|
5.5Kw
|
|||||
|
GH50-680B
|
6.4m3/h
|
1.5Mpa
|
34rpm
|
50mm
|
7.5Kw
|
|||||
|
GH65-600B
|
8m3/h
|
1.5Mpa
|
34rpm
|
65mm
|
7.5Kw
|
|||||
|
GH65-680B
|
13m3/h
|
1.5Mpa
|
41rpm
|
65mm
|
11Kw
|
|||||
|
GH76-770B
|
18m3/h
|
1.5Mpa
|
38rpm
|
76mm
|
18.5Kw
|
|||||
|
GH100-915B
|
32m3/h
|
2.5Mpa
|
32rpm
|
100mm
|
45Kw
|
|||||
|
GH125-915B
|
55m3/h
|
0.6Mpa
|
35rpm
|
125mm
|
22Kw
|
|||||
|
GCP15H-E
|
15m3/h
|
2.5Mpa
|
37rpm
|
75mm
|
22Kw
|
|||||
|
GCP40H-E
|
45m3/h
|
2.5Mpa
|
39rpm
|
100mm
|
45Kw
|
|||||
|
We could customize the hose pump according to output capacity and working pressure of clients' requirement.
|
|
|
|
|
|
|||||
