Quick Details
-
Marketing Type:
-
New Product 2022
-
Application:
-
Factories , freight yards
-
Rated Lifting Moment:
-
According to your demand
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YunTian
-
Weight (KG):
-
30000 kg
-
Working Classes:
-
A6, A7
-
Main electrical parts:
-
Siemens or other international brands
-
Weight overload protection device:
-
Include
-
Voltage loss protection function:
-
Include
-
Emergency stop:
-
Include
-
Limit switch:
-
Include
-
Product name:
-
120 ton rubber tyred gantry crane RTG container crane
-
Polyurethane materials buffer:
-
Include
-
CE,ISO,BV ,GOST:
-
Pass
-
Crane feature:
-
Rubber Tire Hoist Lifting Crane
Quick Details
-
Rated Loading Capacity:
-
50 Ton, 40 ton, 60 Ton, Other, 30.5t/35t/40.5t
-
Max. Lifting Height:
-
Other, 30m
-
Span:
-
18m-30m
-
Marketing Type:
-
New Product 2022
-
Application:
-
Factories , freight yards
-
Rated Lifting Moment:
-
According to your demand
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YunTian
-
Weight (KG):
-
30000 kg
-
Working Classes:
-
A6, A7
-
Main electrical parts:
-
Siemens or other international brands
-
Weight overload protection device:
-
Include
-
Voltage loss protection function:
-
Include
-
Emergency stop:
-
Include
-
Limit switch:
-
Include
-
Product name:
-
120 ton rubber tyred gantry crane RTG container crane
-
Polyurethane materials buffer:
-
Include
-
CE,ISO,BV ,GOST:
-
Pass
-
Crane feature:
-
Rubber Tire Hoist Lifting Crane

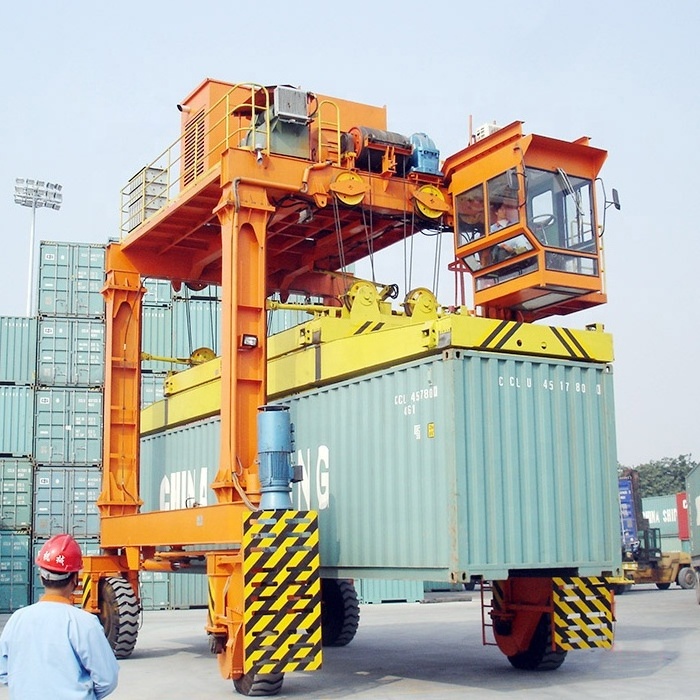

Shipping container crane 120 ton rubber tyred gantry crane RTG container crane for 20ft 40ft 45ft container
Product Description
RTG Tyre Crane is composed of gantry, lifting trolley, crane travelling mechanism, cab and electric control system. The gantry is of boxed-shape structure, the girder is bias track double girder and the leg is Type U.
Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
Hot Sale Rubber Tyre Gantry Crane, RTG Tyre Crane is suitable for loading and unloading of large span, frequently railway freight yard, port, open storage, container transfer station etc.. This machine adopts U type gantry, its legs headroom large (nearly 7 meters). It is suitable for heavy bulky cargo and container handling operations, with frequent high-level work, A5 ~ A8. The weight of 5 to 500 tons, the span of 18 to 35 meters, the girder can be designed have cantilever and no cantilever, the end of two main beam connected with end beams to meet the high level requirements.
Features:
1. Reasonable structure and favorable performance.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your reques.
2. Smooth starting and stopping.
3. Safe and reliable traveling, long life.
4. Low noise, commodious cabin with good view.
5. High quality automatic welding and NDT inspection
6. Crane drive: IP54 or IP44, level F insulation
7. Especially suitable for the container lifting.
8. Designed according to your reques.
Sketch
Specification
|
Lifting Capacity (t)
|
|
10
|
16
|
20/10
|
32/10
|
36/16
|
50/10
|
||||||
|
Span (m)
|
|
18-35
|
|
|
|
|
|
||||||
|
Lifting Height (m)
|
|
10-13
|
|
|
|
|
|
||||||
|
Duty Class
|
|
A5-A8
|
|
|
|
|
|
||||||
|
Speed
(m/min) |
Lifting
|
8.5
|
7.9
|
7.2/10.4
|
7.2/10.4
|
7.8/10.5
|
6/10.4
|
||||||
|
|
Trolley
|
43.8
|
44.5
|
44.5
|
41.9
|
41.9
|
38.13
|
||||||
|
|
Crane
|
40
|
38
|
38
|
40
|
40
|
38
|
||||||
|
Motor
|
Lifting
|
YZR180L-6/17
|
YZR225M-8/26
|
YZR225M-8/26
YZR200L-6/26 |
YZR280S-10/42
YZR200L-6/26 |
YZR280M-10/55
YZR225M-6/34 |
YZR280M-10/55
YZR200L-6/26 |
||||||
|
|
Trolley
|
YZR132M1-
6/2.5*2 |
YZR132M2-
6/4*2 |
YZR132M2-
6/4*2 |
YZR132M1-
6/4*2 |
YZR132M1-
6/6.3*2 |
YZR132M1-
6/6.3*2 |
||||||
|
|
Crane
|
YZR160L-6/13*2
|
YZR160L-6/13*2
YZR160M1- 6/6.3*4 |
YZR160L-6/13*2
YZR160M2- 6/8.5*4 |
YZR160M2-
6/8.5*4 |
YZR160L-6/13*4
YZR160M2- 6/8.5*4 |
YZR160L-6/13*4
|
||||||
|
Weight
(t) |
Trolley
|
9
|
9.5
|
12
|
16
|
18
|
24
|
||||||
|
|
Total
|
63.2-100
|
78-106
|
79-120
|
95-108
|
106-155
|
195
|
||||||
|
Wheel Pressure (KN)
|
|
225-295
|
255-373
|
208-289
|
324-334
|
314-363
|
452
|
||||||
|
Steel Track
|
|
43kg/m
|
50kg/m
|
|
|
|
|
||||||
|
Power Source
|
|
3-phase A.C 380V 50HZ (As your demand)
|
|
|
|
|
|
||||||
Details Images
Why Choose Rubber Tyre Container Gantry Crane???
1. Strong beams: One time foreminf without welding beam U frame, and carefully welding of the whole beams.This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads.
2. End carriage: Crane travelling system, motor-reducer-wheel driven system! & Soft start motor which result in very stable starting!
3. Durable performance and high efficiency!
4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!
5. Electrical equipment: Electric systems are Siemens brand or Schneider brand! What's more, we adopted Inverter, PLC and CMMS (fault monitor system)!
6. Special design spreader suitable for lifting 20feet, 40feet and 45feet! And we can design non-standard type according to customers' demands.
7.Long service life with a low-maintenance!
2. End carriage: Crane travelling system, motor-reducer-wheel driven system! & Soft start motor which result in very stable starting!
3. Durable performance and high efficiency!
4. Outstanding heat resistance with thermal-protective coating added at the bottom of the main beam!
5. Electrical equipment: Electric systems are Siemens brand or Schneider brand! What's more, we adopted Inverter, PLC and CMMS (fault monitor system)!
6. Special design spreader suitable for lifting 20feet, 40feet and 45feet! And we can design non-standard type according to customers' demands.
7.Long service life with a low-maintenance!
Packing & Delivery
Details and Application:
It's better to give below detail parameters when you send enquiry to us:
1. Lifting capacity:___?tons or what type cntainers you need to lift
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
Any time, any need, welcome you to contact us for details!
My time is your time! & We will give you the best service!
It's better to give below detail parameters when you send enquiry to us:
1. Lifting capacity:___?tons or what type cntainers you need to lift
2.Span:___meters ( Distance between two wheel centers)
3.Lifting height:__?meters
4.Work duty: __?hours you need the crane to work? what's the full load percentage?
5.Power supply: __?V __?HZ
