- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.9%
-
Packaging Type:
-
Wooden box
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
2200*2100*2200MM
-
Weight:
-
4500 KG, 500 kg
-
Name:
-
automatic gynecological gel tube filling capping machine
-
Bottle type:
-
3-10 ml
-
Filling material:
-
SS 304 or 316L
-
filling speed:
-
1000-5000 bph
-
filling station:
-
1 pcs - 4 pcs
-
filling method:
-
ceramic or peristaltic pump
-
filling volume error:
-
0.5
-
power:
-
3ph, 380V/50Hz, 2KW
-
machine size:
-
1500 * 1000 * 2250 mm
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
liquid
-
Filling Accuracy:
-
99.9%
-
Packaging Type:
-
Wooden box
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HIGEE
-
Dimension(L*W*H):
-
2200*2100*2200MM
-
Weight:
-
4500 KG, 500 kg
-
Name:
-
automatic gynecological gel tube filling capping machine
-
Bottle type:
-
3-10 ml
-
Filling material:
-
SS 304 or 316L
-
filling speed:
-
1000-5000 bph
-
filling station:
-
1 pcs - 4 pcs
-
filling method:
-
ceramic or peristaltic pump
-
filling volume error:
-
0.5
-
power:
-
3ph, 380V/50Hz, 2KW
-
machine size:
-
1500 * 1000 * 2250 mm
5ml herbal gynecological tightening vaginal gel filling machine
Application
This is automatic gel booster filling capping machine, this machine is mainly used for filling and capping of disposable syringes. such as gynecologic gels, gels,various vaccines, etc.
The whole machine adopts PLC program control, frequency converter frequency conversion speed regulation, the syringe by the mechanical hand clamping and filling and then automatically add cap. The machine runs stably and reliably, and it is the optimal model for the gel filling of the syringe.
Feature:
1. Application range :suitable for different types of PET tube,special plastic tube,vial such 3 - 10lm etc.
2. Automatic tube feeding- automatic tube loading,automa tic filling, automa ti c capping,automatic tube labeling machine and tube tray etc.
3. this prefilled gynecological needle tube gel cap filling machine is easy to operation,the product i on capacity is 1000-5000 per hour.we can according to our clients requirement to customized.
4. The whole system is controlled by PLC. The color touch screen make the operation simpler.
5. The most part of the machine is made from SS304 or 316L. For special material which is able to reach the GMP standard.
6 high-precision pump cylinder with low damping piston head, modular design, long life of pump cylinder.
Tecnical parameters:
| Application for |
3-10ml plastic tube |
| production capacity |
1000-5000pcs/hr |
| Filling station |
1-4 pcs |
| Filling method |
ceramic pump |
| Filling accuracy |
≤±0.5% |
| Stoppering qualifcation rate |
≥99.5% |
| Power supply |
380V 50Hz,1.5kw |
| Dimension |
1800*1000*2050mm |
| Weight |
500kg |

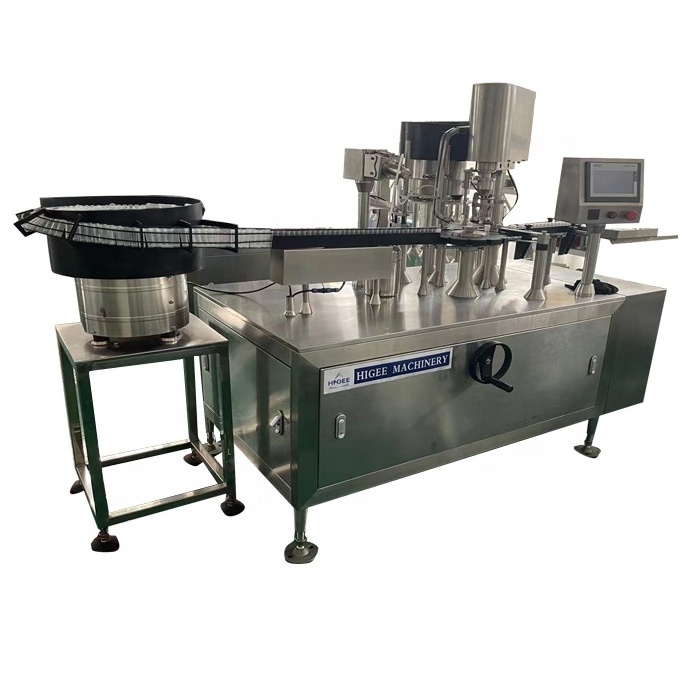

the machien pictures :
