Quick Details
-
bolt size:
-
8*60 or 10*100
-
surface:
-
zinc plated
-
nut size:
-
m8 or m10
-
Application:
-
Construction Area
-
Function:
-
Steel Structure Hanging
Quick Details
-
Material:
-
Stainless steel
-
Place of Origin:
-
Shandong, China
-
thickness:
-
1.5mm
-
bolt size:
-
8*60 or 10*100
-
surface:
-
zinc plated
-
nut size:
-
m8 or m10
-
Application:
-
Construction Area
-
Function:
-
Steel Structure Hanging

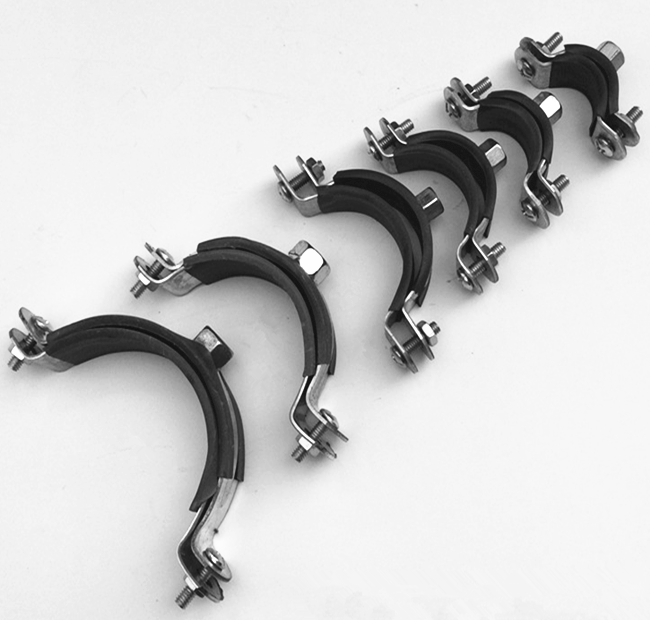

suit to pipe 1" till 6" rubber bonded pipe clamp with screw
[20 25 32 40 pipe card M6 head width 1.5 cm thickness 1.2 mm]
[20 25 32 40 pipe card M8 head width 1.9 cm thickness 1.2 mm]
[50 63 tube card M8 head width 1.9 cm thickness 1.2 mm]
Brief introduction of the product: This product is made of iron, the surface is hot-dip galvanized, the thickness is 1.2MM, the middle nut can be connected with nails, the whole screw, the expansion bolt, the hook, etc., the tube card has a rubber pad, can Protect the tube, but also anti-slip effect, practical and durable
size and specification details:
details size and package infor
| CODE | SIZE-inch | Dia of pipe | S*B | M | A- bolt | PCS | carton size-mm |
| 11A18 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8+M10 | 200 | 42*27*13 |
| 11A22 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8+M10 | 200 | 42*27*13 |
| 11A28 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8+M10 | 160 | 42*27*13 |
| 11A35 | 1" | 32-36 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*13 |
| 11A40 | 1-1/4" | 38-43 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*13 |
| 11A48 | 1-1/2" | 47-51 | 1.5*20 | M6*20 | M8+M10 | 180 | 42*27*25 |
| 11A54 | - | 53-58 | 1.5*20 | M6*20 | M8+M10 | 175 | 42*27*25 |
| 11A60 | 2" | 60-64 | 1.5*20 | M6*20 | M8+M10 | 170 | 42*27*25 |
| 11A70 | - | 68-72 | 1.5*20 | M6*20 | M8+M10 | 110 | 42*27*25 |
| 11A75 | 2-1/2" | 75-80 | 1.5*20 | M6*20 | M8+M10 | 120 | 42*27*25 |
| 11A83 | - | 81-86 | 1.5*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11A90 | 3" | 87-92 | 1.5*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11A100 | 3-1/2 | 99-105 | 2.0*20 | M6*20 | M8+M10 | 100 | 42*27*25 |
| 11A110 | - | 107-112 | 2.0*20 | M6*20 | M8+M10 | 60 | 42*27*25 |
| 11A115 | 4" | 113-118 | 2.0*20 | M6*20 | M8+M10 | 60 | 42*27*25 |
| 11A125 | - | 125-130 | 2.0*20 | M6*20 | M8+M10 | 50 | 42*27*25 |
| 11A140 | 5" | 138-142 | 2.0*20 | M6*20 | M8+M10 | 40 | 42*27*25 |
| 11A160 | 6" | 159-166 | 2.0*20 | M6*20 | M8+M10 | 30 | 42*27*25 |
| 11A200 | 200-212 | 2.0*20 | M6*20 | M8+M10 | 15 | 42*27*25 | |
| 11A220 | 8" | 215-220 | 2.0*20 | M6*20 | M8+M10 | 15 | 42*27*25 |
