Quick Details
-
Brand Name:
-
Other
-
Model Number:
-
WS-C3850-24XU-L
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Layer 2 Gigabit Network POE switch
-
Model:
-
WS-C3850-24XU-L
-
Fixed Ports:
-
24 100M/1G/2.5G/5G/10G UPoE ports
-
Uplink Ports:
-
Modularity
-
PoE Ports:
-
Supported
-
POE power budget:
-
1680W
-
Power Supply:
-
PWR-C1-1100WAC
-
Dimensions H x W x D:
-
44.5 cm x 48.8 cm x 4.45 cm
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100/1000/10000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
640 Gbps
-
Brand Name:
-
Other
-
Model Number:
-
WS-C3850-24XU-L
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Layer 2 Gigabit Network POE switch
-
Model:
-
WS-C3850-24XU-L
-
Fixed Ports:
-
24 100M/1G/2.5G/5G/10G UPoE ports
-
Uplink Ports:
-
Modularity
-
PoE Ports:
-
Supported
-
POE power budget:
-
1680W
-
Power Supply:
-
PWR-C1-1100WAC
-
Dimensions H x W x D:
-
44.5 cm x 48.8 cm x 4.45 cm
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year

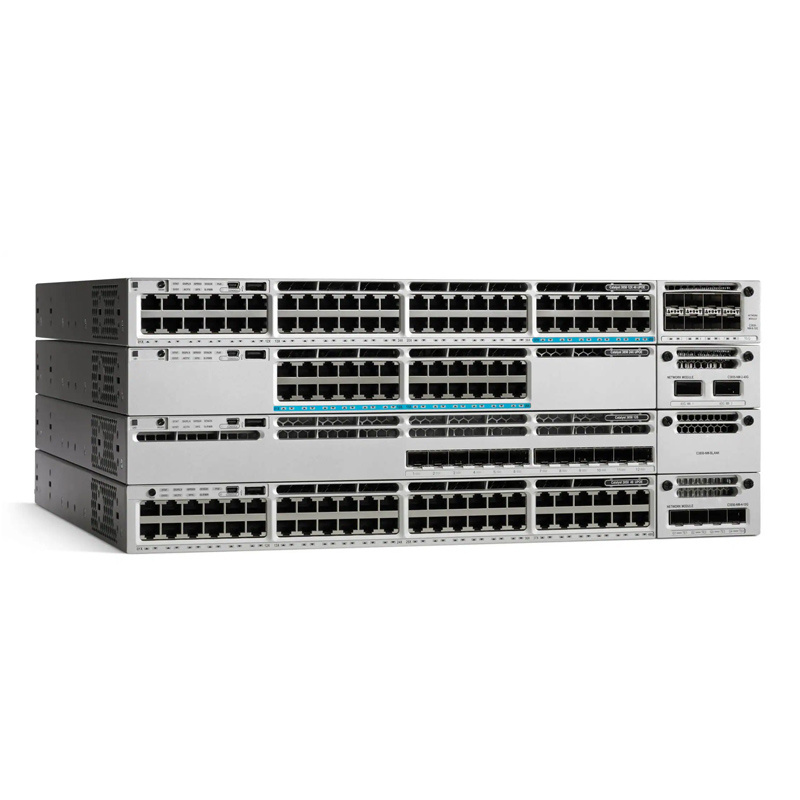

Product overview
|
C3850 Series Switches Data Sheet.
The C3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Unified Access Data Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired wireless policy enforcement, application visibility, flexibility, and application optimization.This convergence is built on the resilience of the new and improved StackWise-480 technology.The C3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Universal Power Over Ethernet (UPOE), modular and field-replaceable network modules, RJ-45 and fiber-based downlink interfaces, and redundant fans and power supplies.
|
|
|
|
|
|
|
||||||
|
Model
|
Total 10/100/1000 or SFP or SFP+ ports
|
Default AC power supply
|
Available PoE power
|
POE budget with 1100W secondary PS
|
StackWise-480
|
StackPower
|
||||||
|
WS-C3850-24T
|
24
|
PWR-C1-350WAC
|
-
|
-
|
Yes
|
Yes
|
||||||
|
WS-C3850-48T
|
48
|
|
|
|
|
|
||||||
|
WS-C3850-24P
|
24 PoE+
|
PWR-C1-715WAC
|
435W
|
1535W
|
|
|
||||||
|
WS-C3850-48P
|
48 PoE+
|
|
|
|
|
|
||||||
|
WS-C3850-48F
|
48 PoE+
|
1100WAC
|
800W
|
1900W
|
|
|
||||||
|
WS-C3850-24U
|
24 UPOE
|
1100WAC
|
800W
|
1900W
|
|
|
||||||
|
WS-C3850-48U
|
48 UPOE
|
1100WAC
|
800W
|
1900W
|
|
|
||||||
|
WS-C3850-24XU
|
24 UPOE (100Mbps/1/2.5/5/10 Gbps)
|
1100WAC
|
580W
|
1680W
|
|
|
||||||
|
WS-C3850-12X48U
|
48 UPOE (with 12 100Mbps/1/2.5/5/10 Gbps Ports)
|
1100WAC
|
630W
|
1730W
|
|
|
||||||
|
WS-C3850-12S
|
12 SFP
|
350WAC
|
-
|
-
|
|
|
||||||
|
WS-C3850-24S
|
24 SFP
|
|
|
|
|
|
||||||
|
WS-C3850-12XS
|
12 1/10G SFP+
|
350WAC
|
-
|
|
|
|
||||||
|
WS-C3850-24XS
|
24 1/10G SFP+
|
715 WAC
|
-
|
|
|
|
||||||
|
WS-C3850-48XS
|
48 1/10G SFP+
|
PWR-C3-750WAC-R
|
|
|
No
|
No
|
||||||
|
WS-C3850-48XS-F
|
48 1/10G SFP+
|
PWR-C3-750WAC-F
|
|
|
No
|
No
|
||||||
Related products
Hubei Netstar Yiyue Technology Co., Ltd
Do you have any questions about C3850 series products?
Contact us
Chat now
or
weiss@hkbarrette.com
Models configuration and ordering table
|
Product model
|
Product Description
|
|
|
Network modules for the C3850 Series switches.
|
|
|
|
C3850-NM-4-1G=
|
4 x Gigabit Ethernet network module spare
|
|
|
C3850-NM-2-10G=
|
4 x Gigabit Ethernet/2 x 10 Gigabit Ethernet network module spare
|
|
|
C3850-NM-BLANK=
|
Network module blank spare
|
|
|
C3850-NM-4-10G=
|
4 x Gigabit Ethernet/4 x 10 Gigabit Ethernet network module spare
|
|
|
C3850-NM-8-10G=
|
8 x Gigabit Ethernet/8 x 10 Gigabit Ethernet network module spare
|
|
|
C3850-NM-2-40G=
|
2 x 40 Gigabit Ethernet network module spare
|
|
|
Power supplies and fan for the C3850 Series switches.
|
|
|
|
PWR-C1-350WAC=
|
350WAC power supply spare
|
|
|
PWR-C1-715WAC=
|
715WAC power supply spare
|
|
|
PWR-C1-1100WAC=
|
1100WAC power supply spare
|
|
|
PWR-C1-440WDC=
|
440WDC power supply spare
|
|
|
PWR-C1-BLANK=
|
Power supply blank spare
|
|
|
PWR-C3-750WAC-R=
|
750WAC power supply spare front-to-back airflow for 48XS
|
|
|
PWR-C3-750WAC-F=
|
750WAC power supply spare back-to-front airflow for 48XS
|
|
|
PWR-C3-750WDC-R=
|
750WDC power supply spare front-to-back airflow for 48XS
|
|
|
PWR-C3-750WDC-F=
|
750WDC power supply spare back-to-front airflow for 48XS
|
|
|
StackWise-480 and StackPower cables for the C3850 Series
|
|
|
|
STACK-T1-50CM=
|
StackWise-480 50cm stacking cable spare
|
|
|
STACK-T1-1M=
|
StackWise-480 1m stacking cable spare
|
|
|
STACK-T1-3M=
|
StackWise-480 3m stacking cable spare
|
|
|
CAB-SPWR-30CM=
|
C3850 StackPower cable 30cm spare
|
|
|
CAB-SPWR-150CM=
|
C3850 StackPower cable 150cm spare
|
|
|
Network module compatibility matrix
|
|
|
|
Model
|
Network modules
|
|
|
WS-C3850-24T
|
C3850-NM-4-1G, C3850-NM-2-10G
|
|
|
WS-C3850-48T
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
|
|
|
WS-C3850-24P
|
C3850-NM-4-1G, C3850-NM-2-10G
|
|
|
WS-C3850-48P
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
|
|
|
WS-C3850-48F
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
|
|
|
WS-C3850-24U
|
C3850-NM-4-1G, C3850-NM-2-10G
|
|
|
WS-C3850-48U
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G
|
|
|
WS-C3850-24XU
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
|
|
|
WS-C3850-12X48U
|
C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
|
|
|
WS-C3850-12S
|
C3850-NM-4-1G, C3850-NM-2-10G
|
|
|
WS-C3850-24S
|
C3850-NM-4-1G, C3850-NM-2-10G
|
|
|
WS-C3850-12XS
|
C3850-NM-4-10G
|
|
|
WS-C3850-24XS
|
C3850-NM-4-10G, C3850-NM-8-10G, C3850-NM-2-40G
|
|
|
WS-C3850-48XS
|
None
|
|
|
C3850 Series ordering information
|
|
|
|
WS-C3850-24T-L
|
Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-48T-L
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-24P-L
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-24U-L
|
Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-48P-L
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-48F-L
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-48U-L
|
Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
WS-C3850-24T-S
|
Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48T-S
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-24P-S
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-24U-S
|
Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48P-S
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48F-S
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48U-S
|
Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-24T-E
|
Stackable 24 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48T-E
|
Stackable 48 10/100/1000 Ethernet ports, with 350WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-24P-E
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-24U-E
|
Stackable 24 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48P-E
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48F-E
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 1100WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48U-E
|
Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-12X48U-L
|
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, LAN Base feature set |
|
|
WS-C3850-12X48U-S
|
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, IP Base feature set |
|
|
WS-C3850-12X48U-E
|
Stackable 48 10/100/1000 with 12 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, IP Services feature set |
|
|
WS-C3850-24XU-L
|
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, LAN Base feature set |
|
|
WS-C3850-24XU-S
|
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, IP Base feature set |
|
|
WS-C3850-24XU-E
|
Stackable 24 100Mbps/1/2.5/5/10 Gbps UPOE Ethernet ports, with 1100W AC power supply
1RU, IP Services feature set |
|
|
WS-C3850-12S-S
|
Stackable 12 SFP Ethernet ports, with 350WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-12S-E
|
Stackable 12 SFP Ethernet ports, with 350WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-24S-S
|
Stackable 24 SFP Ethernet ports, with 350WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-24S-E
|
Stackable 24 SFP Ethernet ports, with 350WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-12XS-S
|
Stackable 12 SFP+ Ethernet ports, with 350WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-12XS-E
|
Stackable 12 SFP+ Ethernet ports, with 350WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-24XS-S
|
Stackable 24 SFP+ Ethernet ports, with 715WAC power supply
1 RU, IP Base feature set |
|
|
WS-C3850-24XS-E
|
Stackable 24 SFP+ Ethernet ports, with 715WAC power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48XS-S
|
Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48XS-E
|
Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC front-to-back power supply
1 RU, IP Services feature set |
|
|
WS-C3850-48XS-F-S
|
Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply
1 RU, IP Base feature set |
|
|
WS-C3850-48XS-F-E
|
Standalone, 48 SFP+ and 4 QSFP+ Ethernet ports, with 750WAC back-to-front power supply
1 RU, IP Services feature set |
|
Supported SFP/SFP+ modules. view more >>
C3850 Series switches support a wide range of optics. Because the list of supported optics is updated on a regular basis,So we only showed a portion of the optical module models.
|
Part number
|
Description
|
|
GLC-SX-MMD
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
|
|
GLC-SX-MMD=
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM spare
|
|
GLC-LH-SMD
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
|
|
GLC-LH-SMD=
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM spare
|
|
GLC-LX-SM-RGD=
|
1000Mbps Single Mode Rugged SFP spare
|
|
GLC-TE
|
1000BASE-T SFP transceiver module for Category 5 copper wire
|
|
GLC-TE=
|
1000BASE-T SFP transceiver module for Category 5 copper wire spare
|
|
GLC-EX-SMD=
|
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM spare
|
|
GLC-ZX-SMD=
|
1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM spare
|
|
SFP-10G-SR
|
10GBASE-SR SFP Module
|
|
SFP-10G-SR=
|
10GBASE-SR SFP Module spare
|
|
SFP-10G-SR-S
|
10GBASE-SR SFP Module, Enterprise-Class
|
|
SFP-10G-SR-S=
|
10GBASE-SR SFP Module, Enterprise-Class spare
|
|
SFP-10G-LR
|
10GBASE-LR SFP Module
|
|
SFP-10G-LR=
|
10GBASE-LR SFP Module spare
|
|
SFP-10G-LR-S
|
10GBASE-LR SFP Module, Enterprise-Class
|
|
SFP-10G-LR-S=
|
10GBASE-LR SFP Module, Enterprise-Class spare
|
|
SFP-10G-ER
|
10GBASE-ER SFP Module
|
|
SFP-10G-ER=
|
10GBASE-ER SFP Module spare
|
|
SFP-10G-ZR
|
10GBASE-ZR SFP10G Module for SMF
|
|
SFP-10G-ZR=
|
10GBASE-ZR SFP10G Module for SMF spare
|
|
SFP-25G-SR-S
|
25GBASE-SR SFP Module
|
|
SFP-25G-SR-S=
|
25GBASE-SR SFP Module spare
|
|
QSFP-40G-CSR4
|
QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M
|
|
QSFP-40G-CSR4=
|
QSFP 4x10GBASE-SR Transceiver Module, MPO, 300M spare
|
|
QSFP-40G-LR4-S
|
QSFP 40GBASE-LR4 Trnscvr Mod, LC, 10km, Enterprise-Class
|
|
QSFP-40G-LR4-S=
|
QSFP 40GBASE-LR4 Trnscvr Mod, LC, 10km, Enterprise-Class spare
|
|
QSFP-40G-SR-BD
|
QSFP40G BiDi Short-reach Transceiver
|
|
QSFP-40G-SR-BD=
|
QSFP40G BiDi Short-reach Transceiver spare
|
|
QSFP-40G-SR4
|
40GBASE-SR4 QSFP Transceiver Module with MPO Connector
|
|
QSFP-40G-SR4-S
|
40GBASE-SR4 QSFP Trnscvr Module, MPO Conn, Enterprise-Class spare
|
|
QSFP-40G-SR4-S=
|
40GBASE-SR4 QSFP Trnscvr Module, MPO Conn, Enterprise-Class
|
|
QSFP-40G-SR4=
|
40GBASE-SR4 QSFP Transceiver Module with MPO Connector spare
|
|
QSFP-100G-CWDM4-S
|
100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
|
|
QSFP-100G-CWDM4-S=
|
100GBASE CWDM4 QSFP Transceiver, LC, 2km over SMF
|
|
QSFP-100G-LR4-S
|
100GBASE LR4 QSFP Transceiver, LC, 10km over SMF
|
|
QSFP-100G-LR4-S=
|
100GBASE LR4 QSFP Transceiver, LC, 10km over SMF
|
|
QSFP-100G-PSM4-S
|
100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
|
|
QSFP-100G-PSM4-S=
|
100GBASE PSM4 QSFP Transceiver, MPO, 500m over SMF
|
|
QSFP-100G-SM-SR
|
100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
|
|
QSFP-100G-SM-SR=
|
100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
|
|
QSFP-100G-SR4-S
|
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF
|
|
QSFP-100G-SR4-S=
|
100GBASE SR4 QSFP Transceiver, MPO, 100m over OM4 MMF
|
Team Introduction
Hubei
Netstar
Yiyue Technology Co., Ltd
Team Profile
Our company's team is not only at the forefront of the industry in technology, but also leading in price and product quality. We pay more attention to expressing the products that our customers need clearly and accurately. Most of our teams have undergone professional training, and we have researched various network construction related to machinery, ICT, electronics, system integration, etc. We can easily understand the customer's ideas, so we can better express their intentions. We have our own professional pre-sales team, CCIE engineers, a comprehensive after-sales team, and a management team that updates inventory in a timely manner. We continuously innovate and improve pre-sales communication, CCIE technology docking, patient product explanation customer service, and professional after-sales operation and maintenance to continuously meet the needs of customers for digital experience services.
Hubei
Netstar
Yiyue Technology Co., Ltd
Hot Searches
