Quick Details
-
Model Number:
-
sul181h
-
Max. Current:
-
16A
-
Operating Voltage:
-
AC 110V/220/240V 50-60Hz
-
Contace Capasity:
-
AC 220V 16A
-
Inaulation Resistance:
-
≥100M
-
Full Timing Range:
-
24h
-
Dimension::
-
90*54*65mm
-
Product name:
-
Battery Powered Timer Time Switch
-
Power Consumption:
-
2.5VA
-
Contact Resistance:
-
≤50MΩ
-
Accuracy:
-
≤2S/day 25
-
Minimum Setting Unit:
-
30 Minuters/time 48 Time
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNTOPSUN/ODM
-
Model Number:
-
sul181h
-
Max. Current:
-
16A
-
Operating Voltage:
-
AC 110V/220/240V 50-60Hz
-
Contace Capasity:
-
AC 220V 16A
-
Inaulation Resistance:
-
≥100M
-
Full Timing Range:
-
24h
-
Dimension::
-
90*54*65mm
-
Product name:
-
Battery Powered Timer Time Switch
-
Power Consumption:
-
2.5VA
-
Contact Resistance:
-
≤50MΩ
-
Accuracy:
-
≤2S/day 25
-
Minimum Setting Unit:
-
30 Minuters/time 48 Time

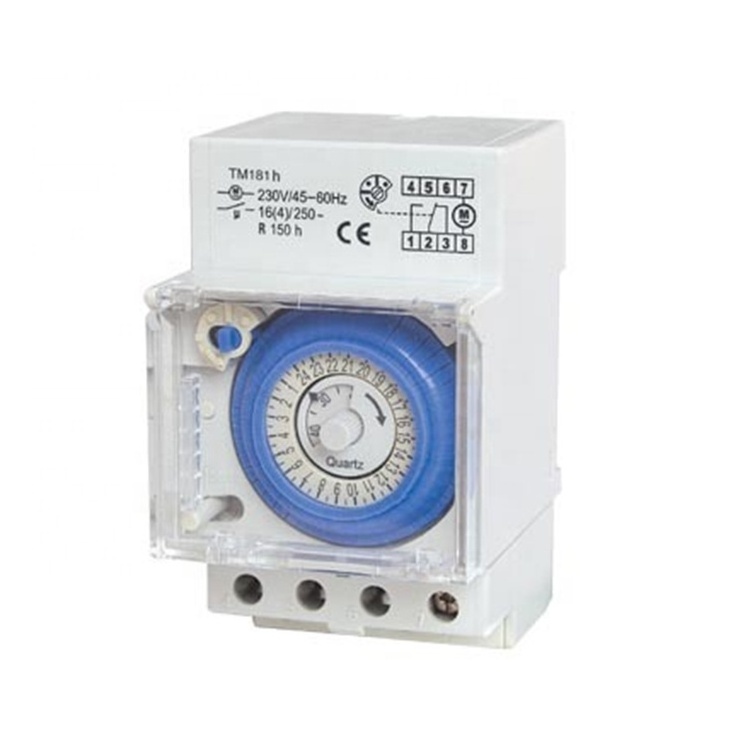

SUL181H 220VAC 16A Battery Powered Timer Time Switch
24-Hour Analog Timer
The products according to the time set by the user,automatically turn on and turn off the variety of electrical equipment.Control object can lights,light boxes,neon signs,production equipment,
agriculture, aquaculture,warehouse exhaust dehumidifier automatically preheat optioml control products,such as radio and television equipment.
Specification
| Item No. | SUL181h |
| Operating Voltage | AC 110V/220/240V 50-60Hz |
| Power Consumption | 2.5VA |
| Contace Capasity | AC 220V 16A |
| Contact Resistance | ≤50MΩ |
| Inaulation Resistance | ≥100MΩ |
| Operating Temperature | -10℃~+55℃ |
| Accuracy | ≤2S/day 25℃ |
| Contact Capacity |
Lamp Load:1000W Resistive Load:16A/250VAC(cos Φ=1 ) Inductive Load:3A/250VAC(cos Φ=0.6 ) |
| Working Reserve Time | 150 hours after recharging 24 hours |
| Full Timing Range | 24h |
| Stonage Battery | 150h |
| Minimum Setting Unit | 30 Minuters |
| Setup Times | 30 Minuters/time 48 Time |
| Dimension | 90*54*65mm |
| Weight | 152g |
| Installing Mode | DIN rail mounting |
|
