Quick Details
-
Brand Name:
-
KuWFi
-
Model Number:
-
X1006
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Poe 4 ports switch
-
Data Pin:
-
1/2+,3/6-
-
Power Supply Type:
-
Build in, 1/2+,3/6-
-
PoE Output Power:
-
15.4W/30W
-
Network Medium:
-
Cat5 (UTP) or more
-
Power Input:
-
52V DC input
-
52V DC input:
-
15.4W per port(IEEE802.af)
-
Casing:
-
metal
-
Installation:
-
Installation
-
Warranty:
-
1years
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
Larger
-
Brand Name:
-
KuWFi
-
Model Number:
-
X1006
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Poe 4 ports switch
-
Data Pin:
-
1/2+,3/6-
-
Power Supply Type:
-
Build in, 1/2+,3/6-
-
PoE Output Power:
-
15.4W/30W
-
Network Medium:
-
Cat5 (UTP) or more
-
Power Input:
-
52V DC input
-
52V DC input:
-
15.4W per port(IEEE802.af)
-
Casing:
-
metal
-
Installation:
-
Installation
-
Warranty:
-
1years
Specification
|
Power
|
|
|
|
Input
|
52V DC input
|
|
|
PoE power consumption
|
15.4W per port(IEEE802.af)
|
|
|
Overload current protection
|
Present
|
|
|
Mechanical
|
|
|
|
Casing
|
Metal
|
|
|
Installation
|
Desktop/Rack mounting
|
|
|
Interface
|
|
|
|
LED Indicators
|
System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error |
|
|
Environment specification
|
|
|
|
Operating temperature
|
-10-55℃(32-104℉)
|
|
|
Storage temperature
|
-40-70℃(14-158℉)
|
|
|
Operating humidity
|
90% maximum relative humidity, non-condensing
|
|
|
Storage humidity
|
95% maximum relative humidity, non-condensing
|
|
|
Regulatory Approval
|
|
|
|
ISO
|
Manufactured in ISO9001 facility
|
|
|
Safety
|
CE/CCC
|
|
|
Warranty
|
2 years
|
|
|
Dimensions
|
130*121*36mm(L*W*H)
|
|
|
Weight
|
1Kg
|
|
Feature:

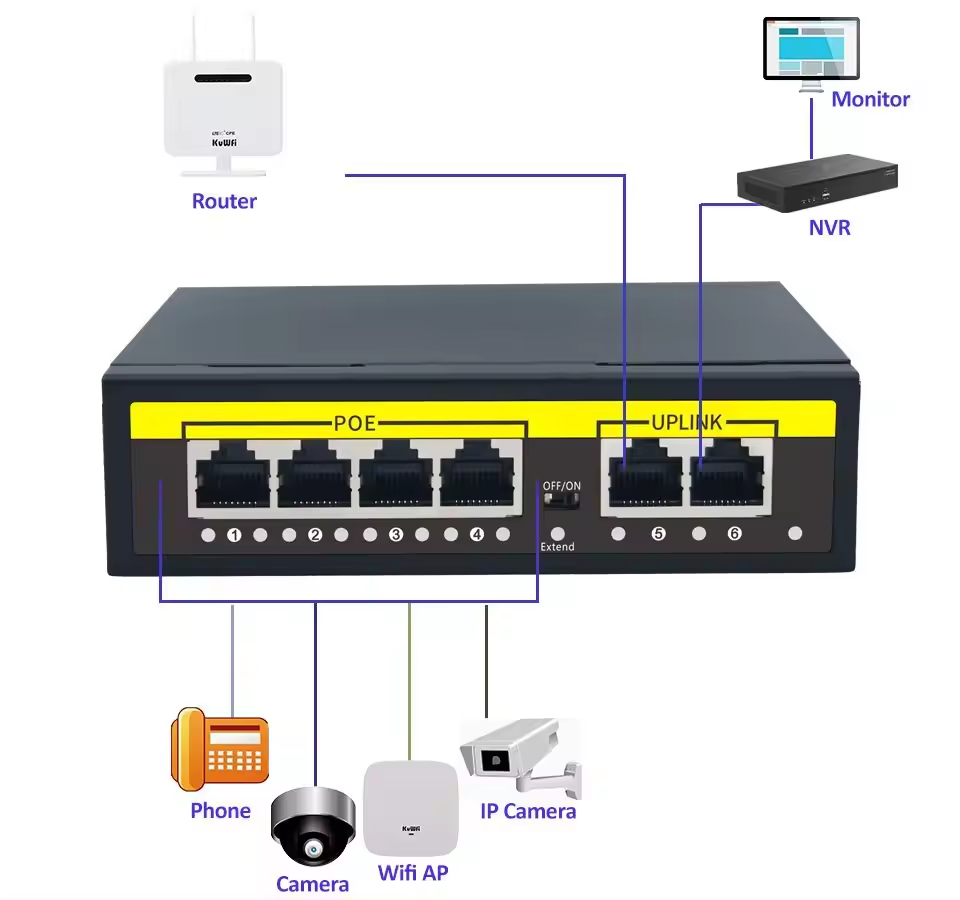

1.X1006 is 6 port poe switch :
4-Port PoE Switch:4 x 10/100 Mbps PoE ports for Security IP Camera Connection +2 x 100/100Mbps fast Ethernet Uplink ports for Router/NVR connection, Plug & Play
2.48V POE switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable.
3.RJ45 hub Switcher can be used for any 10/100Mbps link and supply industry-standard IEEE 802.3af power.
