Quick Details
-
Place of Origin:
-
Guangdong, China
-
Cover:
-
fixed/ moveable/ screw
-
Case:
-
bakelite/ceramic
-
Reset Differential:
-
10°C - 50°C
-
Amperage:
-
5A/10A/16A
-
Contact capacity:
-
100,000 times
-
product type:
-
thermal switch thermostat
-
Usage:
-
Coffee maker/Drinking machine/toaster/Microwave oven/Heating
-
Switch Type:
-
Normally Closed/Open
-
Safety Approval Certificate:
-
UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH
-
Product name:
-
Snap-action thermostat
Quick Details
-
Brand Name:
-
KH
-
Model Number:
-
KSD301
-
Type:
-
Switch Snap Action
-
Place of Origin:
-
Guangdong, China
-
Cover:
-
fixed/ moveable/ screw
-
Case:
-
bakelite/ceramic
-
Reset Differential:
-
10°C - 50°C
-
Amperage:
-
5A/10A/16A
-
Contact capacity:
-
100,000 times
-
product type:
-
thermal switch thermostat
-
Usage:
-
Coffee maker/Drinking machine/toaster/Microwave oven/Heating
-
Switch Type:
-
Normally Closed/Open
-
Safety Approval Certificate:
-
UL.TUV.DVE.CB.CQC.CQM.SGS,ROHS ,REACH
-
Product name:
-
Snap-action thermostat

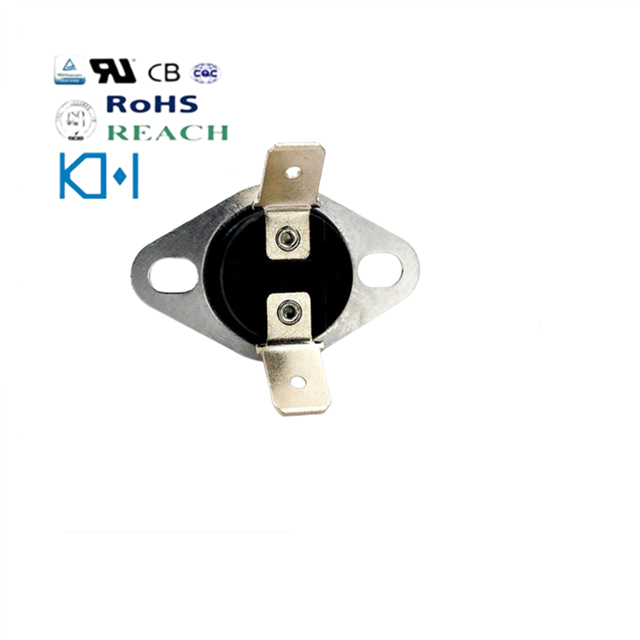

KH KSD301-R Bakelite Manual Reset Thermostat(1/2") Temperature Cut Off Switches Electric Kettle Thermal Switch
Description
Description: KSD-301 Serries of 1/2" Bi-metal temperature controls offers proven reliability in a compact,versatile,cost-effective design. the snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle . the quality, reliability, affordability. versatility and world-wide agency approvals of 301 series make it the thermostat of choice for a wide variety of temperature control applications.
This can be divided into 7 sub-series: KSD301,KSD301R,KSD301G,KSD301GR,KSD301-SG,KSD301R-M,KSD301,GR-M
FREE SAMPLE can be sent for evaluation first! Would you like to have a try?
SAFETY CERRIFICATE
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 185℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301R SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301G SERIES | 270℃ | 250VAC | 5A,10A,16A | 100,000 cycles |
| KSD301GR SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301R-M SERIES | 185℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| KSD301GR-M SERIES | 270℃ | 250VAC | 5A,10A,16A | 10,000 cycles |
| Type | Max.Operating values | Rated vlotage | Rated current | Life |
| KSD301 SERIES | 150℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-R SERIES | 150℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-G SERIES | 240℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
| KSD301-GR SERIES | 240℃ | 125VAC | 5A,10A,16A | 10,000 cycles |
| KSD301-SG SERIES | 160℃ | 125VAC | 5A,10A,16A | 100,000 cycles |
*TERMINALS AND COVERS OF BIMETAL THERMOSTAT CAN BE CUSTOMIZED UNDER YOUR REQUEST. PLEASE REFER TO OUR SPECIFICATION. WELCOME TO OUR WEBSITE TO GET MORE INFORMATION ABOUT BIMETAL THERMOSTATS.
