Quick Details
-
Place of Origin:
-
Henan, China
-
Size:
-
3000*110*1200mm
-
color:
-
customizable
-
Certification:
-
ce
Quick Details
-
Power:
-
> 800W
-
Displacement:
-
201 - 250cc
-
Brand Name:
-
Huahong
-
Place of Origin:
-
Henan, China
-
Size:
-
3000*110*1200mm
-
color:
-
customizable
-
Certification:
-
ce
Product Description
Product Application

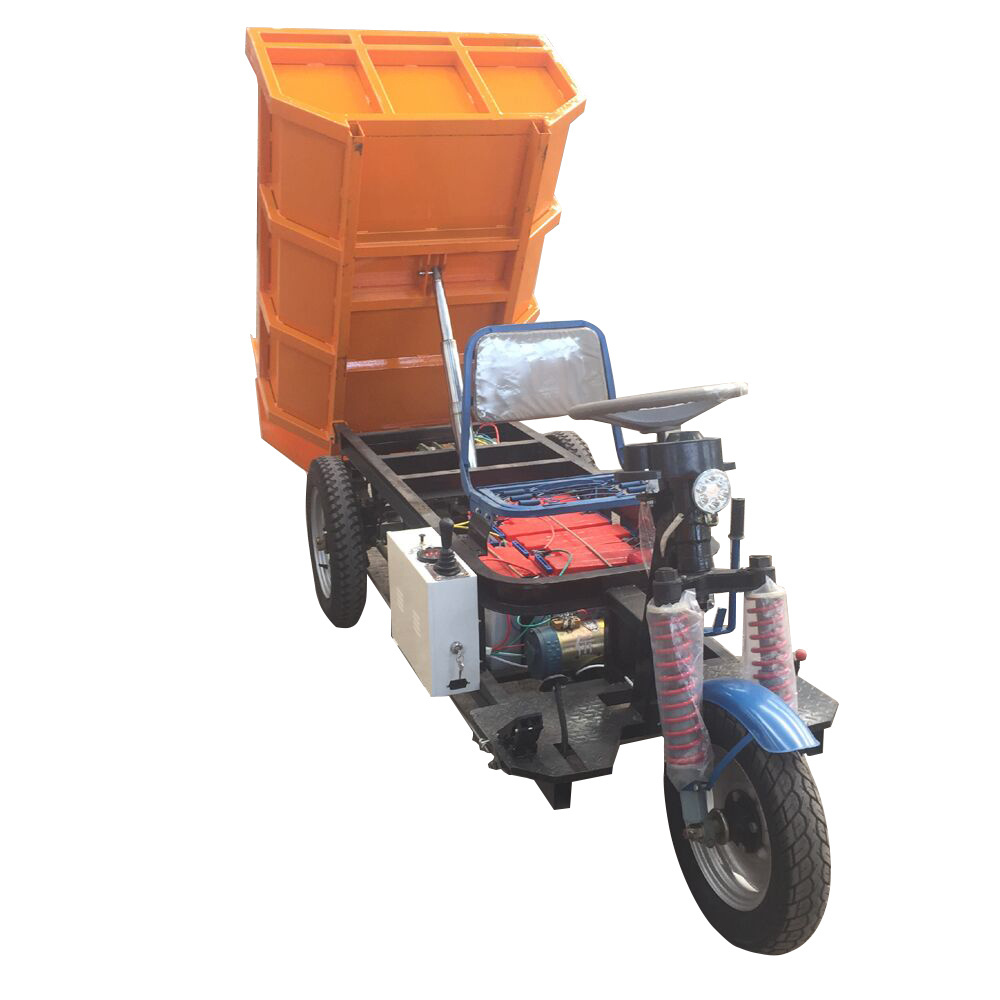

Electric tricycle for cargo is our main product,using electric as power source in mining, brickyard, sanitation and cleaning. It has been improved many times with the advantage of large power,long work hours, heavy load and suitable for any road. Our products are loved and received very well in current market.
Paramerter of electric tricycle
|
Model
|
ZY155
|
ZY165
|
ZY180
|
||
|
Loading capacity
|
1000kg
|
1500kg
|
2000kg
|
||
|
Voltage
|
48V
|
60V
|
72V
|
||
|
Battry model
|
140
|
160
|
185
|
||
|
Lifting Motor Power
|
1000W
|
1000W
|
1000W
|
||
|
Rotating Speed
|
3500r/min
|
|
|
||
|
Driving Motor Power
|
1000W
|
1500W
|
2000W
|
||
|
Overall Sizes
|
2600×900×1200mm
|
3000×1100×1200mm
|
3600×1200×1400mm
|
||
|
Cargo Box Sizes
|
1400×900×400mm
|
1700×1100×500mm
|
1800×1200×500mm
|
||
|
Work platform Height
|
600mm
|
700mm
|
720mm
|
||
|
Weight
|
520kg
|
850kg
|
1000kg
|
||
|
Operating Speed
|
15-25Km/h
|
|
|
||
|
Maximum Gradeability
|
25 degrees
|
|
|
||
|
maximum tilt angle of car bucket
|
45 degrees
|
|
|
||
|
Charging time
|
First is 12h,normal 8h
|
|
|
||
|
Operation time
|
8 to 12h on a full charge
|
|
|
||
Parameter of diesel tricycle
|
Model
|
ZY155
|
ZY165
|
ZY180
|
||
|
Diesel engine
|
190/195
|
ZS1110
|
ZS1115
|
||
|
Loading capacity
|
1000kg
|
1500kg
|
2000kg
|
||
|
Horse power
|
10/12Hp
|
15HP
|
18HP
|
||
|
Overall sizes
|
2600×900×1200mm
|
3000×1100×1200mm
|
3600×1200×1400mm
|
||
|
Cargo box size
|
1400×900×400mm
|
1700×1100×500mm
|
1800×1200×500mm
|
||
|
Weight
|
510kg
|
850kg
|
1000kg
|
||
|
Tire size(F/R)
|
400-12/450-14
|
450-14/500-14
|
500-14/650-16
|
||
|
Work platform height
|
600mm
|
700mm
|
720mm
|
||
|
Brake system
|
Oil brake
|
|
|
||
|
Operating speed
|
40-60km/h
|
|
|
||
|
Maximum gradeability
|
35degrees
|
|
|
||
|
Maximum tilt angle of car bucket
|
45degrees
|
|
|
||
