JKONGMOTOR 57mm 24V DC Brushless Intelligent Grass cutter Lawn mower Motor

JKONGMOTOR 57mm 24V DC Brushless Intelligent Grass cutter Lawn mower Motor

FOB Reference Price: Get Latest Price

≥10 Pieces

US $28.55

≥100 Pieces

US $26.25

≥500 Pieces

US $24.18

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: China

Brand Name:: jkongmotor

Model Number:: JK57BLS01

Torque:: 0.11N.m

Model Name:: JK57BLS01

Number of Phase:: 3-phase

Number of Poles:: 4-poles

Rated Voltage:: 36V /24v

Rated Speed:: 4000Rpm

Motor type:: Brushless DC Motor/ BLDC motor

Rated Power:: 46W

Rated Torque:: 0.11N.m

Peak Torque:: 0.33N.m

Driver Name:: JKBLD70

Quick Details

Speed(RPM):: 4000Rpm

Continuous Current(A):: 2A

Efficiency:: IE 4

Place of Origin:: China

Brand Name:: jkongmotor

Model Number:: JK57BLS01

Torque:: 0.11N.m

Model Name:: JK57BLS01

Number of Phase:: 3-phase

Number of Poles:: 4-poles

Rated Voltage:: 36V /24v

Rated Speed:: 4000Rpm

Motor type:: Brushless DC Motor/ BLDC motor

Rated Power:: 46W

Rated Torque:: 0.11N.m

Peak Torque:: 0.33N.m

Driver Name:: JKBLD70

Product Description

item	value
Warranty	3months-1year
Place of Origin	China
Brand Name	jkongmotor
Model Number	JK57BLS01
Usage	BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
Certification	ce, RoHS
Type	Brushless Motor
Torque	0.11N.m
Construction	Permanent Magnet
Commutation	Brushless
Protect Feature	Explosion-proof
Speed(RPM)	4000Rpm
Continuous Current(A)	2A
Efficiency	IE 4
Model Name	JK57BLS01
Number of Phase	3-phase
Number of Poles	4-poles
Rated Voltage	36V /24v
Rated Speed	4000Rpm
Motor type	Brushless DC Motor/ BLDC motor
Rated Power	46W
Rated Torque	0.11N.m
Peak Torque	0.33N.m
Driver Name	JKBLD70

Product Paramenters

Brand: Jkongmotor

Model No.: JK57BLS01

Number of Phase: 3phase

Number of Poles: 4poles

Rated Voltage: 36V /24v

Rated Speed: 4000Rpm
Rated Torque: 0.11Nm

Rated Current: 2A

Rated Power: 46W

Peak Torque: 0.33Nm

Peak Current: 6.8A

Rotor Interia: 75g.cm2

Body Length: 47mm

Senser: Honeywell

Insulation Class: B

Degree of Protection: IP30

Storage Temperature: -15~+70℃

Operation Temperature: -15~50℃

Genaral Specification:

Item

Specification

Winding type

Delta

Hall effect angle

120 degree electrical angle

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max. radial force

28N@20mm form the flange

Max. axial force

10N

Insulation class

Class B

Dielectric strength

500VDC for one minute

Insulation resistance

100MΩ Min., 500VDC

Electrical Specification:

Model No.

Unit

Model

JK57BLS005 (Round head)

JK57BLF005 (Square head)

JK57BLS01 (Round head) JK57BLF01 (Square head)

JK57BLS02 (Round head) JK57BLF02 (Square head)

JK57BLS03 (Round head) JK57BLF03 (Square head)

JK57BLS04 (Round head) JK57BLF04 (Square head)

Number of phase

Phase

Number of poles

Poles

Rated voltage

VDC

36 /24v

Rated speed

Rpm

4000

Rated torque

N.m

0.055

0.11

0.22

0.33

0.44

Rated current

Amps

1.2

3.6

5.3

6.8

Rated power

138

184

Peak torque

N.m

0.16

0.33

0.66

1.32

Peak current

Amps

3.5

6.8

11.5

15.5

20.5

Back E.M.F

V/Krpm

7.8

7.7

7.4

7.3

7.1

Torque constant

N.m/A

0.074

0.073

0.07

0.068

Rotor inertia

g.cm2

119

173

230

Body length

107

Weight

0.33

0.44

0.75

1.25

Sensor

Honeywell

Insulation class

IP30

Degree of protection

-25~ +70℃

Storage temperature

-15~ +50℃

Operating temperature

85% RH或以下（无结露）<= 85% RH

Working environment

No direct sunlight, non-corrosive gas, flammable gas, oil mist, no dust.

Altitude

1000m or below

Above only for representative products, products of special request can be made according to the customer request.

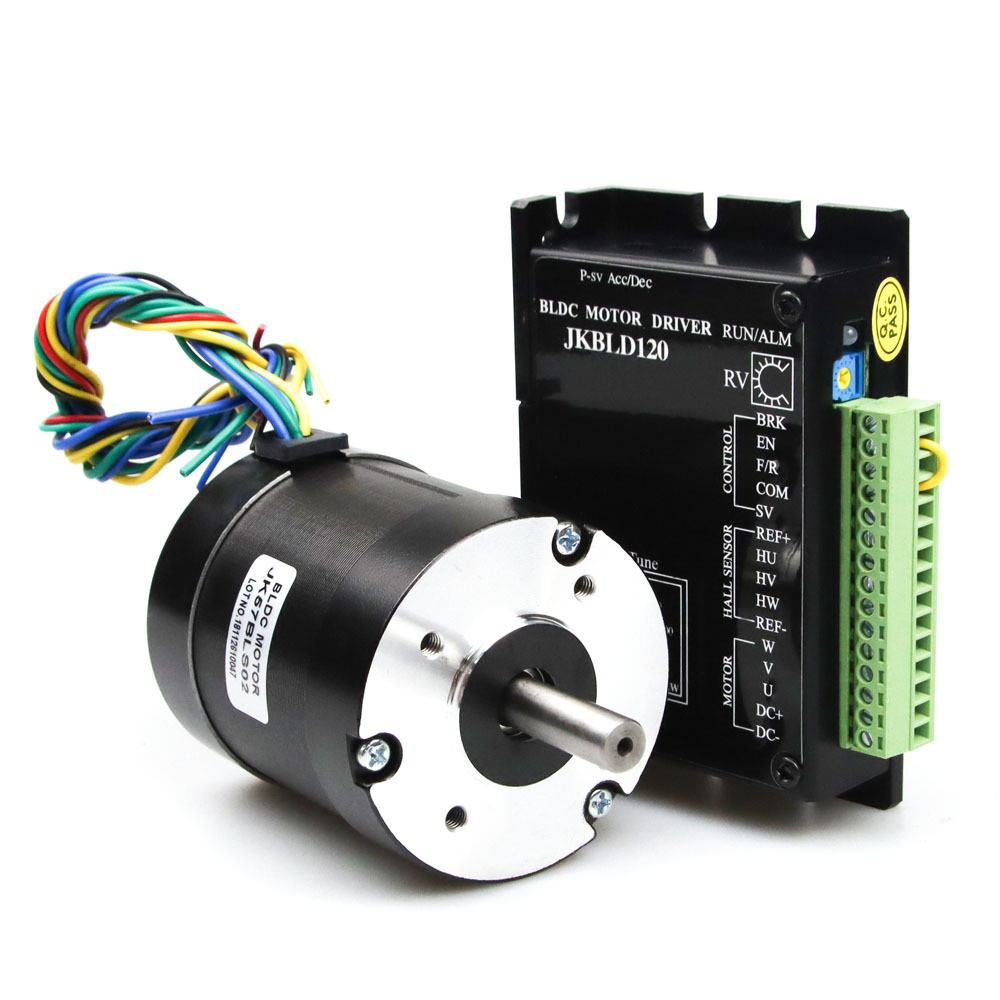

JKBLD70 JKBLD120 JKBLD300 Brushless DC Motor Driver

Item

JKBLD70

JKBLD120

JKBLD300

Environment Temperature

-10℃~ 50℃

Input Voltage

+12V~ +24V

+12V~ +30V

+18V~ +35V

Output Current

0.05A~3A

Rated speed 8A, Maximum current monent 30A(<3s)

15A~ 35A

Suitable Motor Speed

0~10000Rpm

0~20000Rpm

Hall Sensor Voltage

4.5V~ 6.5V

4.5V~ 5.5V

External Potentiometer

10KΩ

Support Motor

Brushless dc motor less of 70w

Brushless dc motor less of 120w

Brushless dc motor less of 300w

JKBLD70 is a high performance, codt-effective 3 phase BLDC motor driver which can provide power output 70W max. The design is based on advanced current control technology and feature high torque, low noise, low vibration, over current protect, over load protection.

JKBLD120 brushless dc driver is suit the following 3 phase since wavve power is 120W brushless dc motor speed regulation, can provide an external potentiometer control, external analog control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the driver have large starting torque, quick start and brake, and positive & negative switching, combination of manual and automatic control.

JKBLD300 brushless dc driver is suit the following three-phase sine wave power is 300W brushless dc motor speed regulation, can provide an external potentiometer control, external analog voltage control, PC (such as PLC, SCM) PWM speed regulation, and other functions. At the same time the drive have large starting torque, quick start and brake, and positive &negative switching, combination of manual and automatic control.
