Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Constar
-
Model Number:
-
B2440NH2B
-
Torque:
-
18.2mNm
-
Commutation Structure:
-
Inner rotor with sensor
-
Speed:
-
17000rpm
-
No. of pole pairs:
-
1
-
Function:
-
Driving
-
Applications:
-
electrical tools,industrial equipment
-
Length:
-
40mm
-
Diameter:
-
24mm
-
Motor type:
-
DC Brushless Three Phase
-
Rated Voltage:
-
24VDC
-
Shaft:
-
Hollow shaft
Quick Details
-
Speed(RPM):
-
17000rpm
-
Continuous Current(A):
-
0.15A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Constar
-
Model Number:
-
B2440NH2B
-
Torque:
-
18.2mNm
-
Commutation Structure:
-
Inner rotor with sensor
-
Speed:
-
17000rpm
-
No. of pole pairs:
-
1
-
Function:
-
Driving
-
Applications:
-
electrical tools,industrial equipment
-
Length:
-
40mm
-
Diameter:
-
24mm
-
Motor type:
-
DC Brushless Three Phase
-
Rated Voltage:
-
24VDC
-
Shaft:
-
Hollow shaft
24v hollow shaft bldc motor 24mm bldc motor with hall sensor
| CONSTAR MICROMOTOR | ||
|
|
|
| PRECISION DC CORELESS MOTOR | BRUSHLESS DC MOTOR | SERVO MOTOR |
| GEARMOTOR | STEP MOTOR | MINI CORELESS MOTOR |
1. Applications: precision drives in medical equipment, industrial automation fields
2. Operating Environment: -40~+120°C
3. Characteristics :
The following are our standard products, we also provide customized products and service.
| 1 | Voltage | V | 24 |
| 2 | Terminal resistance | Ω | 2.5 |
| 3 | No-load speed | rpm | 17000 |
| 4 | No-load current | A | 0.15 |
| 5 | Stall torque | mNm | 125.00 |
| 6 | Stall current | A | 9.60 |
| 7 | Nominal torque | mNm | 18.2 |
| 8 | Nominal speed | rpm | 14500 |
| 9 | Nominal current | A | 1.52 |
| 10 | Max. output power | W | 56 |
| 11 | Max. efficiency | % | 76 |
4. Options: Lead wires length, Shaft length, Special coils, Gearheads, Bearing type, Hall sensor, Encoder, Driver

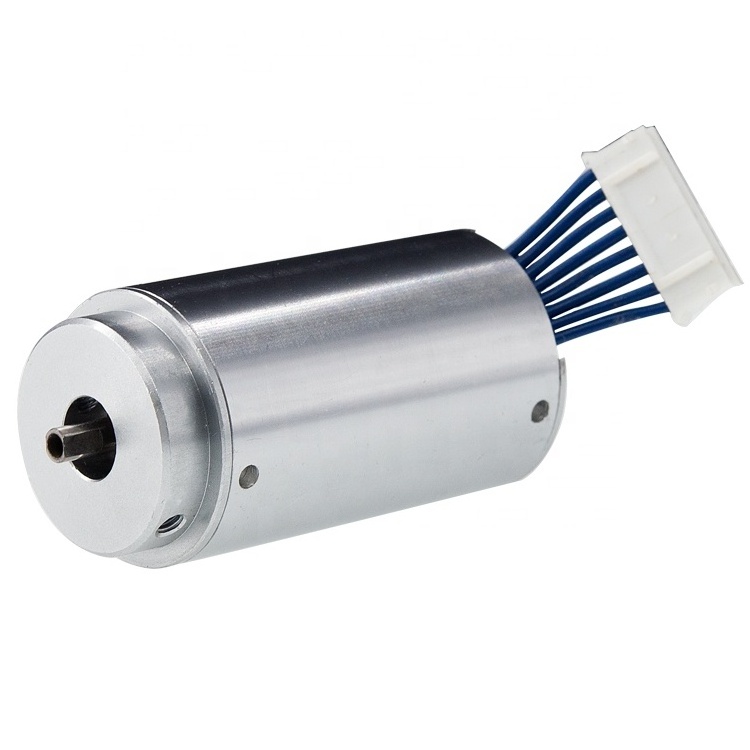

5.Photo:
6.Outline:
24v hollow shaft bldc motor 24mm bldc motor with hall sensor
| Motor No. | Dia x Length(max)in mm | Max.Power in W | |
| 1 | B1020N | 10.00 x 20.00 | 11.5 |
| 2 | B1215N2B | 12.00 x 15.00 | 4.60 |
| 3 | B1220N2B | 12.00 x 20.00 | 3.30 |
| 4 | B1230N2B | 12.00 x 30.00 | 7.80 |
| 5 | BH0831NH | 8.00 x 31.00 | 6.00 |
| 6 | BH1659NH2B | 16.00 x 58.60 | 488.00 |
| 7 | BH2245NH2B | 22.00 x 45.00 | 717.00 |
| 8 | BH2260NH2B | 22.00 x 59.70 | 1242.00 |
| 9 | B1329N2B | 13.00 x 29.00 | 4.20 |
| 10 | B1635N2B | 16.00 x 35.00 | 100.00 |
| 11 | BS1635NB2B | 16.00 x 35.00 | 4.00 |
| 12 | B2040N2B | 20.00 x 40.00 | 31.00 |
| 13 | BS2835NB2B | 28.00 x 35.00 | 88.00 |
| 14 | B1233NH2B | 12.00 x 32.80 | 10.00 |
| 15 | B1250NH2B | 12.70 x 50.00 | 9.00 |
| 16 | BS1635NBH2B | 16.00 x 35.00 | 6.00 |
| 17 | B2440NH2B | 24.00 x 40.00 | 56.00 |
| 18 | B2950NH2B | 29.00 x 50.00 | 105.00 |
| 19 | BS3240NBH2B | 31.00 x 40.00 | 6.00 |
| 20 | B3265NH2B | 32.00 x 65.00 | 215.00 |
| 21 | B4040NH2B | 40.00 x 39.10 | 52.60 |
| 22 | BO1511N2B | 14.20 x 12.00 | 29.00 |
| 23 | BO1613N2B | 16.00 x 13.30 | 12.00 |
| 24 | BO1815N2B | 18.00 x 14.50 | 49.00 |
| 25 | BO2316N2B | 22.80 x 10.20 | 79.00 |
| 26 | BO2814N2B | 27.60 x 14.30 | 84.00 |
| 27 | BO2820N2B | 27.60 x 20.10 | 263.00 |
| 28 | BO2824N2B | 27.70 x 24.00 | 198.00 |
| 29 | BO2826N2B | 27.60 x 25.80 | 254.00 |
| 30 | BO2828N2B | 27.70 x 29.40 | 395.00 |
| 31 | BO3518N2B | 35.00 x 18.50 | 103.00 |
| 32 | BO3823N2B | 37.60 x 23.00 | 318.00 |
| 33 | BF3211N2B | 32.00 x 11.20 | 8.00 |
| 34 | BO3828NB2B | 37.10 x 27.60 | 93.00 |
| 35 | BO4830N2B | 48.00 x 30.00 | 560.00 |
| 36 | BO6133N2B | 61.20 x 33.00 | 749.00 |
| 37 | BO8724N2B | 87.00 x 22.30 | 1892.00 |
| 38 | BO1410NB2B | 14.20 x 9.60 | 0.60 |
| 39 | BO1509NBH2B | 15.50 x 8.70 | 3.20 |
| 40 | BO1709NB2B | 17.00 x 9.50 | 5.20 |
| 41 | B01808NBH2B | 17.50 x 8.50 | 1.60 |
| 42 | BO2008NBH2B | 20.00 x 8.50 | 1.00 |
| 43 | BO2010NB2B | 20.00 x 23.30 | 15.00 |
| 44 | BO2015NB2B | 21.20 x 15.20 | 9.00 |
| 45 | BO2414NB2B | 24.50 x 14.00 | 7.80 |
| 46 | BO3216NB2B | 31.50 x 15.90 | 32.70 |
| 47 | BO3518NB2B | 34.50 x 18.00 | 3.30 |
| 48 | BO4316NB2B | 43.20 x 16.40 | 37.00 |
| 49 | BO2914NBH2B | 46.00 x 43.00 x 14.00 | 13.70 |
| 50 | BO4326NBH2B | 42.80 x 26.70 | 711.00 |
| 51 | BO6452N3B | 63.00 x 52.00 | 7165.00 |
| 52 | B2040NIE2B | 20.00 x 40.00 | 0.18 |
| 53 | B2135NIE2B | 21.00 x 35.00 | 2.00 |
| 54 | B7584FBHIE2B | 75.00 x 84.00 | 49.00 |
