Bodor Economical A Series Automatic chuck and rotary CNC fiber laser tube cutting machine for metal

Bodor Economical A Series Automatic chuck and rotary CNC fiber laser tube cutting machine for metal

FOB Reference Price: Get Latest Price

≥1 Sets

US $30000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Bodor

Cutting Area:: 3000*1500mm

Cutting Thickness:: 0.1-30mm

Control Software:: BodorThinker

Place of Origin:: China

Brand Name:: Bodor

Weight (KG):: 3600 KG

Core Components:: Laser Header, Laser Source, Control System

After-sales Service Provided:: Engineers available to service machinery overseas

Max cutting range:: 3000*1500mm

Cutting thickness of material:: ≤20mm

Laser Power:: 1000W,2000W,3000W,4000W

Max Cutting Speed:: 25m/min

Min line width:: 0.1nm

Driving and transmission Way:: Imported Servo Motor and Linear Guide Rail

Continuous Working Time:: 24Hours

Quick Details

Laser Type:: Fiber Laser

Cutting Speed:: 140mmin

Cooling Mode:: WATER COOLING

Control System Brand:: Bodor

Cutting Area:: 3000*1500mm

Cutting Thickness:: 0.1-30mm

Control Software:: BodorThinker

Place of Origin:: China

Brand Name:: Bodor

Weight (KG):: 3600 KG

Core Components:: Laser Header, Laser Source, Control System

After-sales Service Provided:: Engineers available to service machinery overseas

Max cutting range:: 3000*1500mm

Cutting thickness of material:: ≤20mm

Laser Power:: 1000W,2000W,3000W,4000W

Max Cutting Speed:: 25m/min

Min line width:: 0.1nm

Driving and transmission Way:: Imported Servo Motor and Linear Guide Rail

Continuous Working Time:: 24Hours

Marketing Campaign

5-year warranty offer

When purchasing a new Bodor laser
cutting machine, you can enjoy the exclusive 5-year warranty for our Bodor laser core parts (laser source BodorPower, laser head
BodorGenius, control system BodorThinker).

Safeguarding your metal cutting success

A reliable and valuable warranty gives your metal cutting process and business a promise of long-term succes. That's why we want
to help you protect your investment and ensure your productivity by extending the warranty for you.

Product Overview

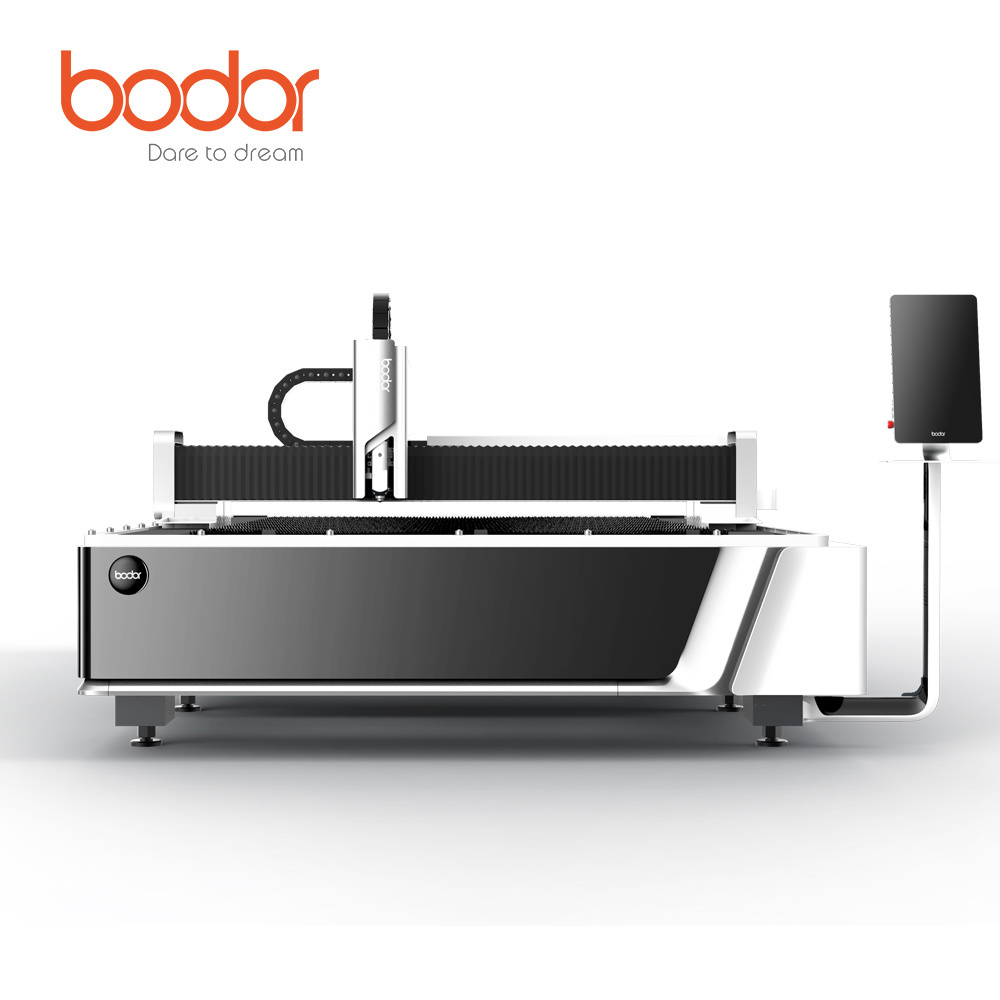

Entry-level sheet fiber laser metal cutting machine

Lower laser cutting cost and easy operation

Cast Iron Bed

Each frame of the cutting machine bed is welded after mortise-and-tenon joint to achieve perfect mechanical property and better stability and firmness.

Aircraft-grade aluminum crossbeam

Ultra-high-pressure stretching process and lightweight design;
Structural strength enhanced by 25% ;
Weight goes down by 30%;

Modular Table

The modular cutting machine table with stiffeners saves time for disassambly and improves convenience and rigidity.

Active Anti-collision Function

Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter.

No Quiver when Cutting Thin Sheet

The cutting process works even at the edge of thin sheets, and ensures no chatter marks.

Bodor Lightning

BodorGenius, combined with the lightning-quick piercing process, completes the whole piercing during it moves down on Z-axis.
Thanks to the technology, no reworking is necessary for medium and thick sheet piercing.

10kW+ cutting proecss package

The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure
stainless steel nitrogen cutting, and better-quality carbon steel air cutting.

BodorThinker

BodorThinker is a high-end intelligent control system for a CNC laser cutter, featuring reliable stability, convenient
installation and adjustment, safe production, multiple functionality, and robust performance. With BodorThinker, your laser cutting solutions can be modular, customized, automated and information-based.

Remote Control

A mango shape and convenient magnetic securing help you control with just one hand

PRODUCT SPECIFICATIONS

Model	A3	A4 Plus	A6	A8	A12	A14
Working Area	3048*1524	4000*2000	6100*1524	8050*2500	12200*2500	14000*3100
Laser output	6kW/3kW/1.5kW			12kW/6kW/3kW	22kW/12kW/6kW	60kW / 30kW / 24kW / 12kW
Positioning accuracy	±0.05mm/m						±0.03mm/m
Repositioning accuracy	±0.03mm						±0.02mm/m
Max. linkage speed	100m/min
Max. acceleration	1.5G

PRODUCT CONFIGURATION

Six-in-one laser technology full ecology

Fully self-devloped BodorThinker control system, BodorNest nesting software, BodorGenius laser head and BodorPower laser source matched with MES system and Bodordrive drive system, enabling stable operation of the machine, with premium quaility cuts and incredible working efficiency.

BodorPower

BodorGenius

BodorThinker

BodorNest

Bodor MES

BodorDriver
