Quick Details
-
Brand Name:
-
CapsulCN
-
Dimension(L*W*H):
-
1750*1200*1500
-
Weight:
-
950 KG
-
Product name:
-
Cartoning Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keywords:
-
Semi automatic cartoning machine
-
Function:
-
Box Packing
-
Machine type:
-
Vertical Automatic Packing Machine
-
Suitable for:
-
Packing Bottle Cans Jars
-
Packing material:
-
Carton Case
-
Speed:
-
20-60 cartons/min
-
Advantage:
-
Low Cost
-
Material:
-
Stianless Steel
Quick Details
-
Application:
-
Food, Chemical
-
Packaging Material:
-
Paper
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CapsulCN
-
Dimension(L*W*H):
-
1750*1200*1500
-
Weight:
-
950 KG
-
Product name:
-
Cartoning Machine
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keywords:
-
Semi automatic cartoning machine
-
Function:
-
Box Packing
-
Machine type:
-
Vertical Automatic Packing Machine
-
Suitable for:
-
Packing Bottle Cans Jars
-
Packing material:
-
Carton Case
-
Speed:
-
20-60 cartons/min
-
Advantage:
-
Low Cost
-
Material:
-
Stianless Steel
Products Description

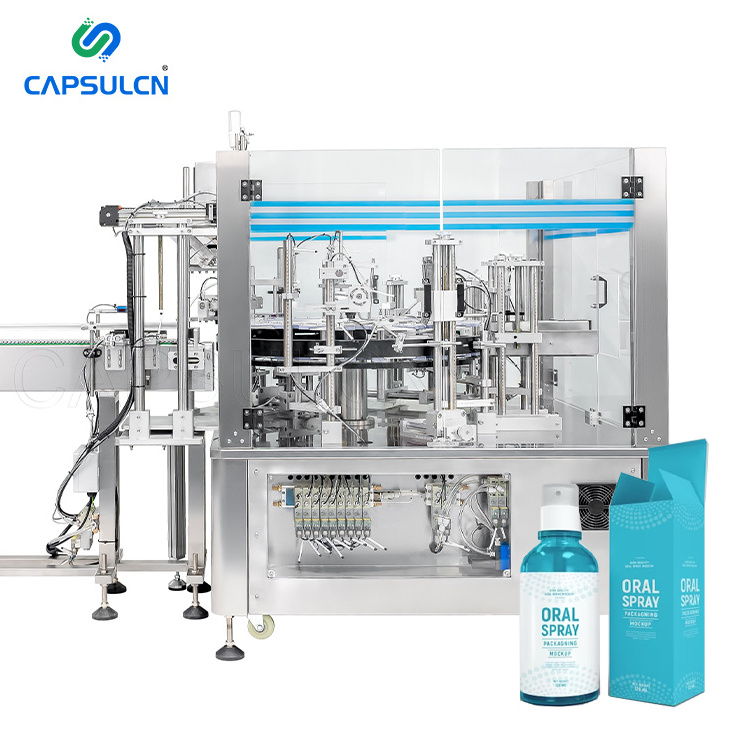

DZH-50S Vertical Semi Automatic Turntable Cartoning Machine
This machine uses vacuum suction cups to feed cartons into the star wheel. The empty cartons are rotated by the star wheel to the folding mechanism 1 to seal the bottom of the carton. After the finished product to be packed is manually placed into the carton, the star wheel rotates the carton to the folding mechanism 2 to seal the top of the carton. Finally, the completed product is transferred by the star wheel to the carton pushing-out mechanism for delivery.
Main Application
Product Paramenters
|
Model
|
DZH-50S
|
|
Carton minimum dimensions
|
60×20×20m/m
|
|
Carton Maximum dimensions
|
200×80×80m/m
|
|
Production speed
|
20-60 cartons/min
|
|
Power supply
|
220V single phase; 50/60Hz
|
|
Horsepower of motor
|
1/4HP 15:1
|
|
Air pressure consumption
|
150L/min
|
|
Machine dimensions
|
1750L×1200W×1500H
|
|
Machine weight
|
950kg
|
Details Images
Semi-automatic cartoning machine operating instructions：
Details images
Our Workshop
Why Choose Us
Pre-sale service
1.
Support product customization
, any requirements you need can be customized according to your requirements.
2. Sample test on our machine.
3. Provide business consulting and technical support, as well as a free professional packaging solution.
4. Make a machine layout for customers based on customers' factories.
After-sales service
1. Manual book.
2. Videos of installation, adjusting, setting, and maintenance, are available for you.
3. Online support, or face-to-face online communications, are available.
4.
The engineer overseas services
, are available. The tickets, visa, traffic, living, and eating, are for customers.
5. During the warranty year, without human-being broken, we will replace a new one for you.
