Quick Details
-
Brand Name:
-
NOELIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2695x1230x2090mm
-
Weight (KG):
-
3000 kg
-
Product Name:
-
diesel forklift
-
Power type:
-
Diesel Diesel Forklift
-
Loading Capacity:
-
3000kg
-
Name:
-
Foklift
-
Model:
-
FD30
-
Brand:
-
China Brand
-
Key words:
-
Small Folk Lift
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Chinese Engine
-
Marketing Type:
-
New Product 2020
Quick Details
-
Min. Lifting Height:
-
3000mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NOELIFT
-
Fork Length:
-
1070mm
-
Fork Width:
-
122mm
-
Overall Dimensions:
-
2695x1230x2090mm
-
Weight (KG):
-
3000 kg
-
Product Name:
-
diesel forklift
-
Power type:
-
Diesel Diesel Forklift
-
Loading Capacity:
-
3000kg
-
Name:
-
Foklift
-
Model:
-
FD30
-
Brand:
-
China Brand
-
Key words:
-
Small Folk Lift
-
Mast:
-
2 Stage/3 Stage
-
Engine:
-
Chinese Engine
-
Marketing Type:
-
New Product 2020
3ton diesel forklift truck FD30T
1, Seat on type opertaion.
2, Engine option: ISUZU, NISSAN, XINGCHANG,YANMAR,
3 , 3- 6M lifting height , duplex/triplex/container mast.
4, Different lengths forks and solid tyres is optional
5 , Wide vision mast, soft and comfortable design.
Character:
1. Strong Power System
2. Wide-view Mast
3. Unique Overhead Guard
4. Low Non-slip Pedal
5. Adjustable Safety Seat
6. Solid-state LCD Digital Meter
7. Eco-friendly Design
8. Adjustable Steering Wheel

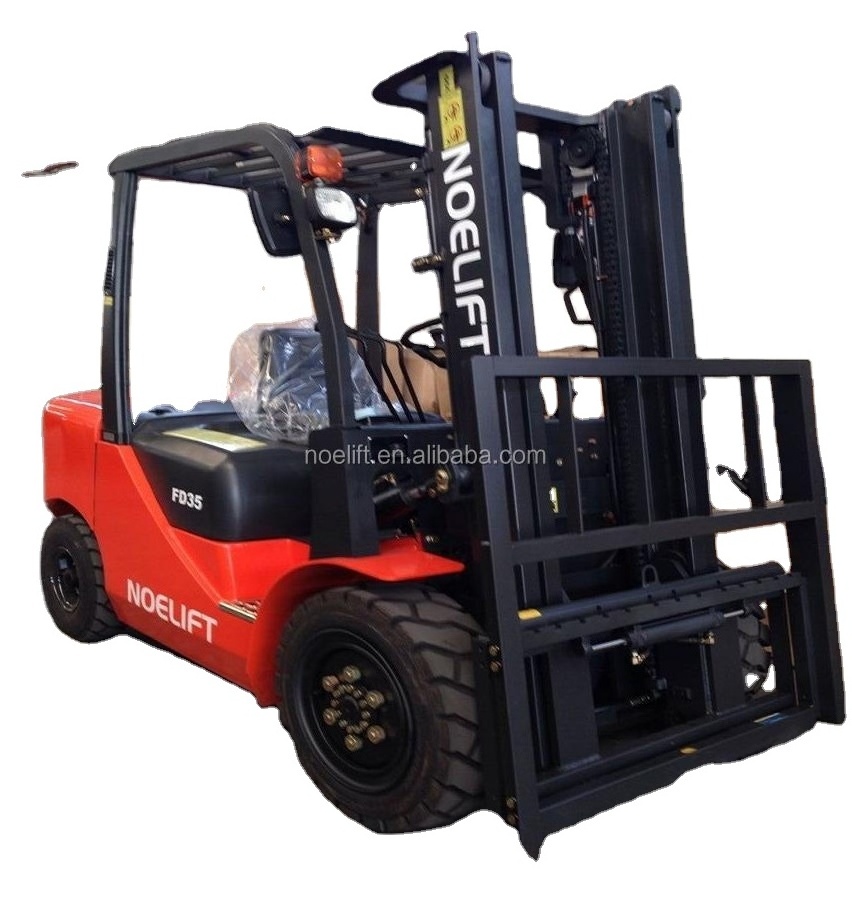

Product Picture
NOELIFT 3TON DIESEL FORKLIFT TRUCK--FD30T
FD30T
| Model | FD20T | FD25T | FD30T | FD35T | |||||||
| Power type | Diesel | ||||||||||
| Rated capacity | kg | 2000 | 2500 | 3000 | 3500 | ||||||
| Load center | mm | 500 | |||||||||
| Operator type | Seated | ||||||||||
| Tyre type | Front/Rear | pneumatic | |||||||||
| Number of wheels(X=driven)) | Front/Rear | 2×/2 | |||||||||
| Lifting height | mm | 3000 | |||||||||
| Free lift height | mm | 140 | 145 | 150 | |||||||
| Fork size | LxWxT | mm | 920×122×40 | 1070×122×40 | 1070×125×45 | 1070×130×45 | |||||
| Mast tilt range | F/R | 6/12 | |||||||||
| Overall Length(Without fork) | mm | 2513 | 2583 | 2698 | 2725 | ||||||
| Overall width | mm | 1150 | 1225 | 1225 | |||||||
| Mast lowered height | mm | 1995 | 2070 | 2160 | |||||||
| Mast extended height | mm | 4030 | 4250 | 3290 | |||||||
| Overhead guard height | mm | 2070 | 2090 | ||||||||
| Turning radius(Outside) | mm | 2170 | 2240 | 2400 | 2450 | ||||||
| Wheelbase | mm | 1600 | 1700 | ||||||||
| Tread | Front | mm | 970 | 1000 | |||||||
| Rear | mm | 970 | |||||||||
| Ground clearance | Lowest | mm | 110 | 135 | 145 | ||||||
| Wheel base center | mm | 115 | 140 | 140 | |||||||
| Self weight | kg | 3320 | 3680 | 4280 | 4750 | ||||||
| Tyres | Spec | Front | 7.00-12-12PR | 28*9-15-12PR | |||||||
| Rear | 6.00-9-10PR | 6.50-10-10PR | |||||||||
| Engine | Model | XINCHAI 490BPG | XINCHAI 498BPG | ||||||||
| Rated output/r.p.m | Kw/rpm | 37/2650 | 45/2550 | ||||||||
| Rated torque/r.p.m | N.m/rpm | 148/1800 | 195/1600 | ||||||||
| No.of cylinder | 4 | ||||||||||
