Quick Details
-
Brand Name:
-
Runtx
-
Fork Length:
-
1800MM
-
Fork Width:
-
180MM
-
Overall Dimensions:
-
1800*180MM
-
Weight (KG):
-
25000 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency, Low Noise
-
Mast tilt angle (front / rear):
-
6°/ 12°
-
Load center:
-
900 mm
-
Tire:
-
pneumatic or solid
-
Mast:
-
2 stage standard, 2 stage full free lift and 3 stage full free lift
-
Optional:
-
with sideshift, fork positioner, container mast, etc.
-
Type:
-
Forklift
-
After Warranty Service:
-
Spare parts
-
Certification:
-
CQC, CE, SIQ, COC, TUV
Quick Details
-
Min. Lifting Height:
-
3500MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Runtx
-
Fork Length:
-
1800MM
-
Fork Width:
-
180MM
-
Overall Dimensions:
-
1800*180MM
-
Weight (KG):
-
25000 kg
-
After-sales Service Provided:
-
Overseas third-party support available
-
Feature:
-
Hydraulic Systems, Low Fuel Consumption, High Efficiency, Low Noise
-
Mast tilt angle (front / rear):
-
6°/ 12°
-
Load center:
-
900 mm
-
Tire:
-
pneumatic or solid
-
Mast:
-
2 stage standard, 2 stage full free lift and 3 stage full free lift
-
Optional:
-
with sideshift, fork positioner, container mast, etc.
-
Type:
-
Forklift
-
After Warranty Service:
-
Spare parts
-
Certification:
-
CQC, CE, SIQ, COC, TUV
Products Description
|
Item
|
Description
|
Unit
|
CPCD160
|
CPCD180
|
|
Features
|
Rated load
|
kg
|
16000
|
18000
|
|
|
Load centre
|
mm
|
900
|
900
|
|
|
Wheelbase
|
mm
|
3600
|
3800
|
|
Weight
|
Weight
|
kg
|
21000
|
25000
|
|
Chassis
|
Tire Speas:Front
|
|
12.00-24-20PR
|
12.00-24
|
|
|
Tire Speas:Rear
|
|
12.00-20-18PR
|
12.00-24
|
|
|
Tire Qty,front/rear
(X-drive wheels)
|
|
4/2
|
4/2
|
|
|
Wheel tread:front
|
mm
|
1850
|
2050
|
|
|
Wheel tread:raed
|
mm
|
2130
|
2130
|
|
Dimensions
|
Mast/carriage tilt angle
(front/rear)
|
Deg
|
6/12
|
6/12
|
|
|
Mast height
(fork lowering)
|
mm
|
3460
|
3500
|
|
|
Mast lifting height
|
mm
|
3500
|
3500
|
|
|
Max.height
|
mm
|
5180
|
3500
|
|
|
height to head guard(height to cab)
|
mm
|
3365
|
5220
|
|
|
Overall height
（with forks)
|
mm
|
7200
|
7400
|
|
|
Fork front verticaal sueface to the rear end of the vehicle
|
mm
|
5180
|
5600
|
|
|
Overall width
|
mm
|
2550
|
2750
|
|
|
Fork dimension
|
mm
|
1800*200*90
|
1800*240*90
|
|
|
Fork carriage width
|
mm
|
2500
|
2500
|
|
|
Mast min ground
(with load)
|
mm
|
270
|
270
|
|
|
Wheelbase center min ground(with load)
|
mm
|
310
|
310
|
|
|
Min.turning Radius
|
mm
|
5050
|
5300
|
|
|
Travel speed(with load/without load)
|
km/h
|
22/30
|
22/30
|
|
Performanc
|
Max.lifting speed(with load/without load)
|
mm/s
|
240/300
|
240/300
|
|
|
tractionn
|
kn
|
130
|
130
|
|
|
gradeability(with load/without load)
|
|
20/22
|
20/22
|
|
|
Driving brake
|
%
|
Hydraulic clamp disc
|
Hydraulic clamp disc
|
|
Engine
|
Engine brand/model
|
emission 111
|
Yuchai Engine
|
Yuchai Engine
|
|
|
|
|
YJ6J175-T302
|
YJ6J175-T302
|
|
|
|
emission 11
|
Dongfeng cummins
|
Dongfeng cummins
|
|
|
|
|
6BTAA5.9-C190
|
6BTAA5.9-C190
|
|
|
|
emission 111
|
Dongfeng cummins
|
Dongfeng cummins
|
|
|
|
|
QSC6.7-C190
|
QSC6.7-C190
|
|
|
Cylinder No.
|
|
6
|
6
|
|
Others
|
Transmission gears(Front/rear)
|
|
2/1
|
2/1
|
Details
1. Reliable structure design, through finite element analysis, kinematics, dynamics simulation calculation and harsh fatigue, vibration and other tests, to ensure that the structure of the whole forklift is reliable and durable
2. Reliable power system, using Yuchai, Weichai, Cummins, VOLVO and other well-known brands of engines, reliable quality, strong power, combined with advanced power matching and control technology, power performance has been greatly optimized
3. Quick-couple technology of attachments to realize efficient operation under different working conditions
4. Comfortable operating environment, wide field of vision, and all operator-centered human-computer interaction environments can effectively relieve fatigue
5. The pilot valve is used to control the distribution valve and the oil circuit of the working device, and the operation is light and flexible
6. Standard cast iron counterbalanced weight
Special Customized Service

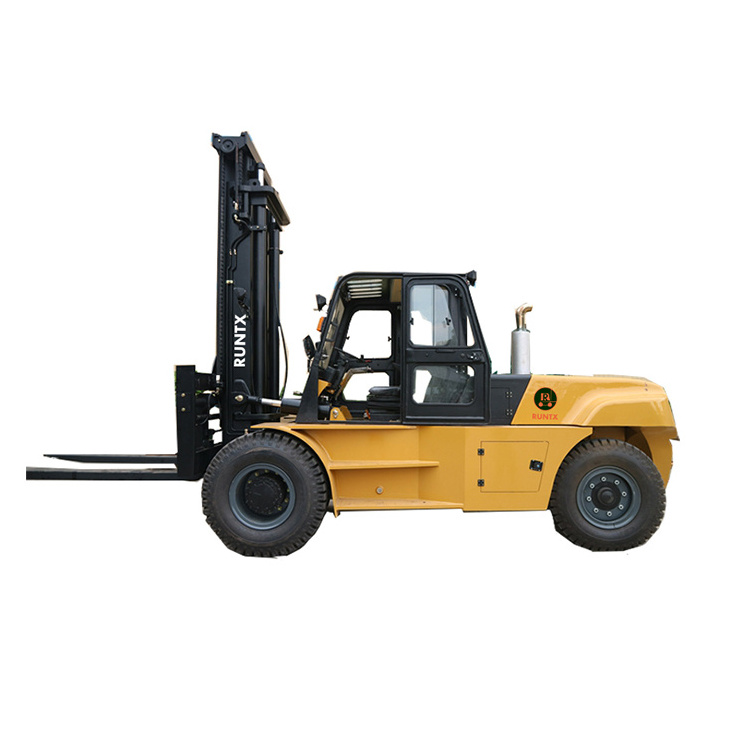

The counterbalanced forklift independently developed by RUNTX is stable, reliable, safe and efficient. It has developed a series of products with different load capacity from 10 tons to 35 tons, and provides a variety of attachments and various mast frames. Customers are free to choose and strive to meet customer needs.
We provide the following products, which can be freely matched, and can also be customized for customers
Mast
Duplex stage full free mast
Duplex stage full free mast
Triplex stage full free mast
Attachment
Container handler attachment
Container handler attachment
Roll prong attachment
Grab clamp attachment
Bucket
