Quick Details
-
Place of Origin:
-
Shandong, China
-
Type:
-
Site Dumper, 4x4WD
-
Dimension(Long * Breadth * High):
-
4400x2100x2700MM
-
Machine Weight:
-
3250 kg
-
Bucket capacity:
-
2.0CBM
-
Model:
-
FCY50
-
Product name:
-
site dumper
-
Application:
-
Building Bridge
-
Usage:
-
High Pressure Portable
-
Certification:
-
CE ISO
-
Operate Weight:
-
5000kg
-
Tire:
-
20.5/70-16
-
color:
-
green,yellow,etc
Quick Details
-
Engine Brand:
-
HUAFENG
-
Power:
-
47KW, 47kw
-
Brand Name:
-
MAP
-
Place of Origin:
-
Shandong, China
-
Type:
-
Site Dumper, 4x4WD
-
Dimension(Long * Breadth * High):
-
4400x2100x2700MM
-
Machine Weight:
-
3250 kg
-
Bucket capacity:
-
2.0CBM
-
Model:
-
FCY50
-
Product name:
-
site dumper
-
Application:
-
Building Bridge
-
Usage:
-
High Pressure Portable
-
Certification:
-
CE ISO
-
Operate Weight:
-
5000kg
-
Tire:
-
20.5/70-16
-
color:
-
green,yellow,etc
Self-loading bucket and rotary hydraulic system can also be selected according to customer needs
|

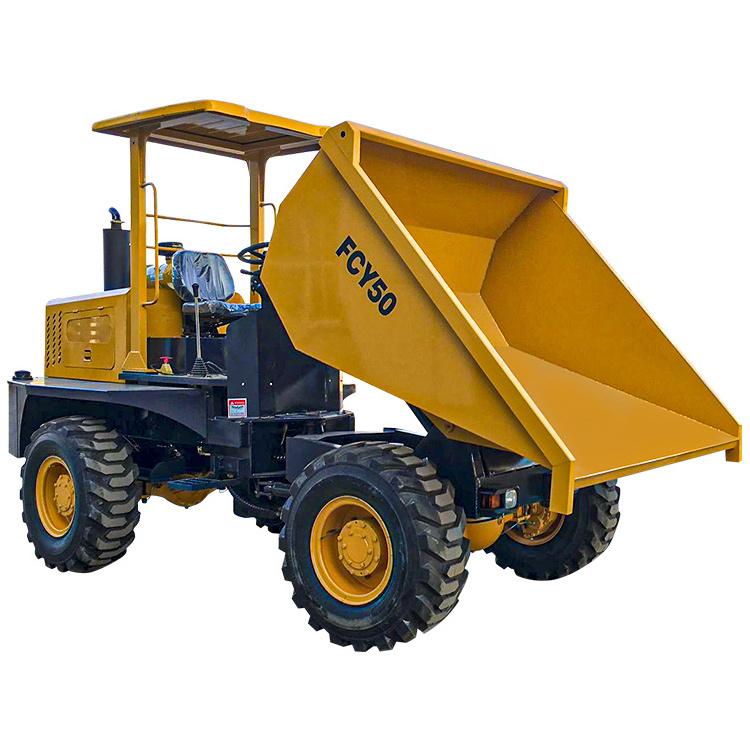

Specifications of FCY50/FCY50R/FCY50S
|
|
|
||
|
1
|
Payload
|
5000kg
|
||
|
2
|
Operating weight
|
3450kg/FCY50S is 3750s
|
||
|
3
|
Hopper capacity
|
2.0m³
|
||
|
4
|
Maximum speed
|
25.2 km/h
|
||
|
5
|
Handbrake available on grade
|
18%
|
||
|
6
|
Max grade ability
|
25%
|
||
|
7
|
Distance of road after brake
|
≤2.5m with load and speed 10km/h
|
||
|
8
|
Minimum turn radius
|
4 m
|
||
|
9
|
Ground clearance
|
248 mm
|
||
|
10
|
Noise level
|
≤108 db(A)
|
||
|
11
|
Loading discharge angle
|
48.4
|
||
|
12
|
Time of discharge
|
6s
|
||
|
13
|
Hydraulic pressure
|
16 Mpa
|
||
|
14
|
Wheel base
|
2200 mm
|
||
|
15
|
Wheel tread
|
1580 mm
|
||
|
16
|
Engine power
|
47KW
|
||
|
17
|
Dimensions (LxWxH)
|
4400x2100x2700 mm
|
||
|
Engine
|
Model/Maker
|
4102
|
||
|
|
Type
|
Diesel 4 stroke engine, 4-cylinder incline, direct fuel injection, water cooled
|
||
|
|
Bore x stroke piston
|
100 x 102 mm
|
||
|
|
Power
|
47KW
|
||
|
|
Speed
|
2400 R/Min
|
||
|
|
Max t
|
120@2100v/p
|
||
|
|
Weight
|
350 kg
|
||
|
Transmission system
|
|
|
||
|
Hydraulic Torque Converter
|
|
2 Forward and 2 reverse gears
|
||
|
Type
|
|
power shift, spur gear constantly in mesh
|
||
|
Model
|
|
265
|
||
|
Torque ratio
|
|
3.06
|
||
|
System pressure
|
|
160(kgf/c㎡)
|
||
|
Type
|
|
3-elements.single stage
|
||
