Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite
Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite

Hot Sale 1390 1610 Marble Tombstone Headstone Portrait Photo Laser Engraving Machine For Stone Marble Granite

FOB Reference Price: Get Latest Price
≥1 Sets
US $2898
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, JPEG
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Dimension(L*W*H):
2500*1780*800mm
Weight (KG):
410 KG
Core Components:
Reci laser tube
Working Voltage:
AC 220V 50HZ / AC 110V 60HZ
Laser power:
90W
Cutting Speed:
0-4000mm/s
Cutting thickness:
0-30mm
Control Software:
RDWorks
Laser source:
Reci CO2 laser tube
Laser tube type:
CO2 Sealed Laser Glass Tube
Marble laser engraver working area:
1300*900mm
Electric up down distance:
400mm
Control system:
Ruida 6445 Control System

Quick Details

Engraving Area:
1300mm*900mm
Laser Type:
CO2
Engraving Speed:
0~4000mm/s
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, JPEG
Cooling Mode:
WATER COOLING
Place of Origin:
Shandong, China
Brand Name:
Transon
Dimension(L*W*H):
2500*1780*800mm
Weight (KG):
410 KG
Core Components:
Reci laser tube
Working Voltage:
AC 220V 50HZ / AC 110V 60HZ
Laser power:
90W
Cutting Speed:
0-4000mm/s
Cutting thickness:
0-30mm
Control Software:
RDWorks
Laser source:
Reci CO2 laser tube
Laser tube type:
CO2 Sealed Laser Glass Tube
Marble laser engraver working area:
1300*900mm
Electric up down distance:
400mm
Control system:
Ruida 6445 Control System
Product Description

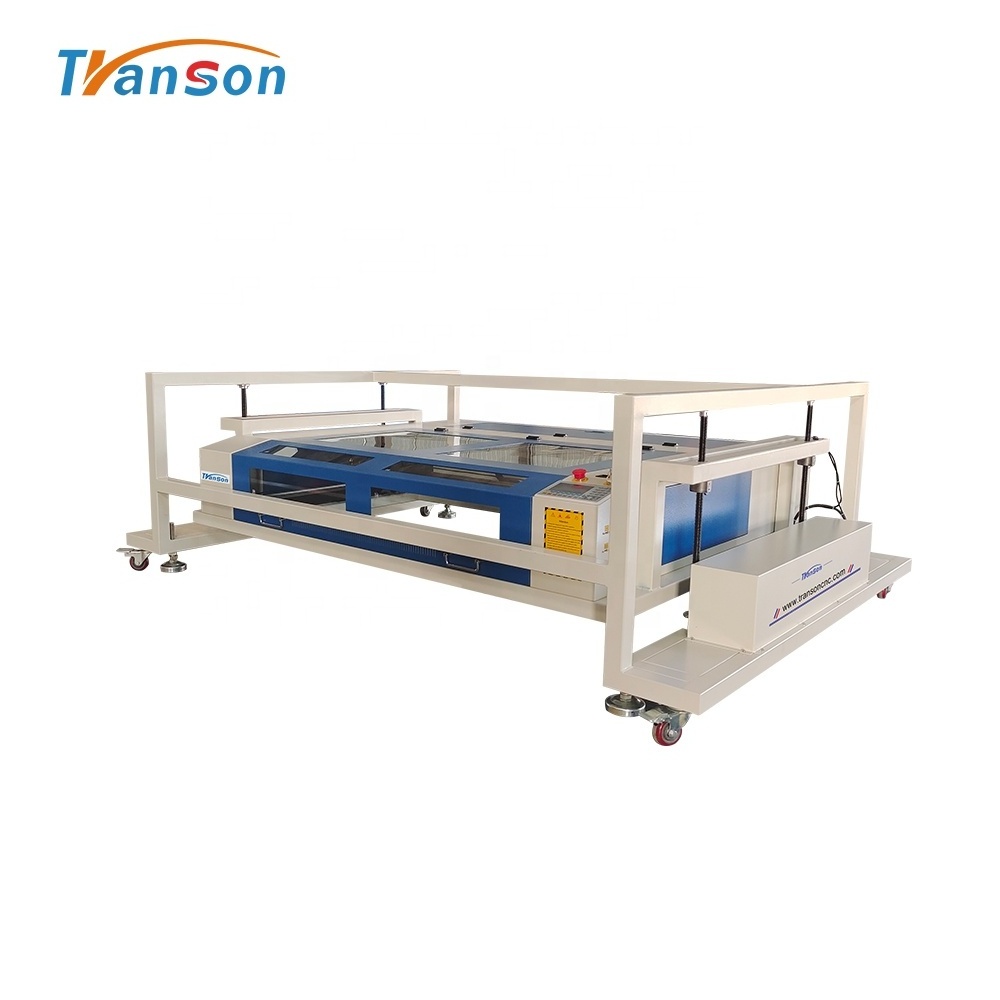

Marble Portrait Laser Engraving Machine
Transon this stone marble granite portrait photo laser engraving machine is mainly design for huge marble laser engraving of portrait. The machine with universal wheels can easy move around to work on any huge marble stone. Laser head with 400mm electric up down distance, suit different thickness marbles stones engrave, include tombstones.

This stone laser engraving machine with 3 working area for choice 1000x600mm, 1300x900mm, 1600x1000mm, Price in this page is for TSD1390 1300x900mm model, the working area and up down distance can also customize according requirements.

Though this laser engraving machine special suit for marble engraving work, it can also use to engrave cut other nonmetal material like wood, MDF, acrylic,etc. Thus have a widely usage for almost all industry.
Specification
Marble Engrave Machine Model
TSD1060/ TSD1390/TSD1610
Working area
1000mm*600mm/39.37in*23.62in,
1300mm*900mm/51.18in*35.43in,
1600mm*1000mm/63in*39.37in, can customize
Laser power
standard 90W, optional 60W/80W/100W
Laser type
CO2 sealed laser tube, water-cooled
Worktable
No worktable, can move above huge marble to mark directly
Engraving speed
0-70000mm/min
Cutting speed
0-40000mm/min
Highest scanning precision
2500DPI
Power supply
220v/50Hz , 110v/60Hz
Min. shaping character
English 1.0 x 1.0mm, Chinese 1.5 x 1.5mm
Graphic.format.supported
BMP, PLT, DST, DXF, AI, etc.
Software supported
CorelDraw, PhotoShop, AutoCAD,TAJIMA
Control system
High speed Ruida RDC6445G control system
Machine work software
RDWorks V8 (Ruida) support 15 languages
Laser output control
1-100% by setting in the software
Interface
USB 2.0
Color separation
Yes
Optional part
Red dot pointer / Auto focus
Rotary attachment with roller / Rotary attachment with clip
Spare parts suggest for future use
Extra laser tube
Extra 1 lens and 3 mirrors
Product details
Strong Machine Body
Machine with strong metal plate, environment protect painting, universal wheels enable machine easy move around.
RDWorksV8 Software
Easy operate, compatible with Photoshop, AutoCAD, etc. users can use other software to make design then import files to RDWorks to work. Files format support: AI, DXF, PLT, DST, BMP, DSB, EPS, DAT, NC, RDB, GIF, JPG, JPEG, JPE, JFIF, PNG, MNG, ICO, CUR,TIF,TIFF,etc.RDworks V8 software Support 15 different language:
English, Japanese, French, German, Portuguese, Polish, Spanish, Russian, Korean,Vietnamese, Indonesian, Italian, Turkrish, Arabic.
Ruida RDC6445 Control System
1, 5 inch big LCD display.
2, With Z+/Z- buttons, one button control up down of worktable.
3, With "Focus" button, one button control auto focus the worktable suit for different thick material.
4, With 0-9 numbers, easy set parameters for files.

Above the control panel with emergency stop, key switch, Ammeter.
Electric UP Down
The whole machine with electric up down function, up down distance is 400 mm, suit different thickness material engrave cut work
Laser Head With Red Dot Pointer And Auto Focus
This marble engraving machine laser head is longer than normal co2 laser engraving machine, so laser head can work on marble put on ground. The optional auto focus function is for easy find focus length, no need use ruler to find focus lens according different material.
China Top Reci CO2 Laser Tube
Machine standard with Reci W2 90W-100W water cool CO2 laser tube, it is with > 15000 hours life span and 540 days worldwide warranty. If tube damage within warranty in normal use, we will send new tube free by DHL to your door.
Optional tube EFR 60W, Reci W4 100W-120W, Reci W6 130w-150W.
China Famous S&A Brand Water Chiller
Standard CW3000 water chiller for cycle water, with water temperature display and water circle unsuccessful alarm function. With signal line connect to machine water flow signal port, if machine detect water flow unsuccessful, the laser machine will stop work to protect laser tube.

Optional: CW5200, CW6000 with refrigerants.

Optional Rotary Device With Chuck

For engrave on cylinder object like wood, bamboo, bottle, etc.

Optional Rotary Device With Wheels

For engrave on glass cup, bottle, mugs, etc. Can also engrave some cylinder items size irregular.
Application
Applicable materials:
Marble, stone, tombstone, wood, bamboo, organic glass, plastic, garments, paper, leather, rubber, ceramic, glass and other
nonmetal materials.

Applicable industries:
This marble engraving machine mainly design for tombstone portrait text engraving work. But it can also use to other industry like advertisement, gift, shoes, toys, computers, garments, model cutting,building, packaging, etc.
Packing & Delivery
Standard Plywood For Marble Laser Engraver
Waterproof film wrap whole machine, then protect foam, outside strong plywood box.
Outside plywood box with metal belt.
Under the plywood box with 6-8 strong steel tubes, forklift can easily and safely fork up down machine during ship to buyer.
TSD1390 1300*900mm working area machine plywood box size 287x195x98cm, Gross weight:530kgs
