Quick Details
-
Place of Origin:
-
Busan, South Korea
-
Brand Name:
-
SAMSUNG
-
Model Number:
-
CP40
-
Product name:
-

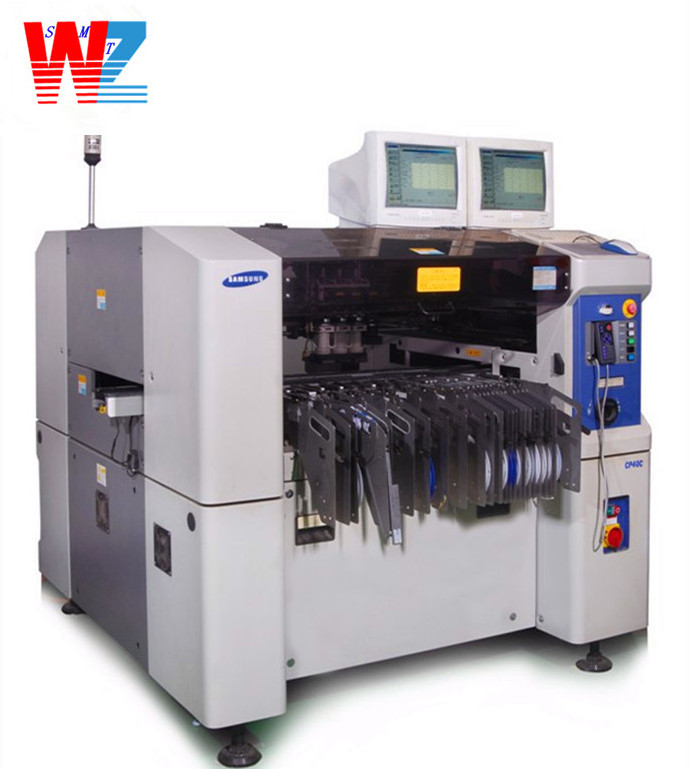

SAMSUNG CP40 /sm320/sm321/sm421/ sm481 pick and place machine
-
Model number:
-
cp40/sm320/sm321/sm421/ sm481
-
Quality:
-
Top
-
package:
-
wooden case
-
Condition:
-
new
-
Type:
-
SMT machine related products
-
Brand:
-
samsung
-
specification:
-
smt machine
-
Delivery:
-
ups,dhl,fedex,as your order
Quick Details
-
Weight (KG):
-
1800
-
Marketing Type:
-
New Product
-
Core Components:
-
pick and place machine
-
Place of Origin:
-
Busan, South Korea
-
Brand Name:
-
SAMSUNG
-
Model Number:
-
CP40
-
Product name:
-
SAMSUNG CP40 /sm320/sm321/sm421/ sm481 pick and place machine
-
Model number:
-
cp40/sm320/sm321/sm421/ sm481
-
Quality:
-
Top
-
package:
-
wooden case
-
Condition:
-
new
-
Type:
-
SMT machine related products
-
Brand:
-
samsung
-
specification:
-
smt machine
-
Delivery:
-
ups,dhl,fedex,as your order
SAMSUNG HANWHA CP40/sm320/sm321/sm421/ sm481 sm481plus / s1 /s2 smt pick and place machine
Name:SAMSUNG Pick And Place Machine
Brand:SAMSUNG
Model:SAMSUNG CP40 Pick And Place Machine
Specification:SAMSUNG CP40 Pick And Place Machine
Condition:original/copy
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required
Package:carton box with foam protect
Feature :
1.Applies two gantries equipped with 10 spindles per head as well as new flying vision.
2.The highest speed among the same class component placers,placement accuracy correction system(head offset,C/V offset etc.).
3.It is applicable to 0402-14mm(H=12mm)ICs.
4.Reinforced its applicability to odd shaped parts by applying a ß-staged light system.
5.Dual Lane System:PCB Loading Time of "ZERO" Maximiaes actual productivity by minimizing the PCB transfer time by adopting a first-in-first-out type shuttle inlet conveyor.
6.It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders.
7.It is designed to be compatible with SM series pneumatic feeders.
it maximizes the customer's operational convenience.
8.Parameter:Can accommodate120pcs 8mm Feeder( Docking Cart)
Main Features of Hanwha SMT Pick and Place Machine
1,Realizes a Super-high Speed Placement Speed of 40,000 CPH
Realizes the Highest Placement Speed Among Chip Shooters of the Same Class by Adopting a New Flying Head Mechanism Equipped With 10 Spindles.
2,Electrically Driven High Speed and High Precision Feeder
Electrically Driven SM Feeder
Allows integrated use of 0603/2P/4P Equipped with a function to automatically align the pickup position between feeders to improve the simultaneous pickup rate. Able to set various part supply speeds to improve the stability of part supply.
40,000 CPH(Optimum)
1 Gantry x 10 Spindles/Head
Applicable Parts : 0402 ~ 14mm(H 12mm)
Applicable PCB : Max. 460(L) x400(W)(Standard)
Max.510(L) x 460(W)(Option)
Electrically Driven High Speed and High Precision Feeder
Allows mixed use with an SM pneumatically driven feeder
SMART Feeder
|
Specifications
|
Hanwha SMT pick and place machine
|
|
|
||
|
Model Name
|
SM471plus
|
SM481plus
|
SM482plus
|
||
|
Alignment
|
Flying Vision
|
Flying Vision+stage vision
|
Flying Vision+stage vision
|
||
|
Spindles
|
10 Spindles × 2 Gantries
|
10 Spindles × 1 Gantry
|
6 Spindles × 1 Gantry
|
||
|
Placement Speed
|
78,000CPH(Optimum)
|
40,000CPH(Optimum)
|
30,000CPH(Optimum)
|
||
|
Placement Accuracy
|
±40μm@μ±3σ
|
±40μm@μ±3σ
|
±40μm@μ±3σ
|
||
|
Applicable Parts
|
0402 ~ 14mm(H 12mm)
|
0402 ~ 42mm(H 15mm)
|
0402 ~ 55mm(H 15mm)
|
||
|
Applicable PCB(L × W)
|
Max. 510 × 460(Standard)
|
Max. 460 × 400(Standard)
|
Max. 460 × 400(Standard)
|
||
|
|
Max. 610 × 460(Option)
|
Max. 1500 × 460(Option)
|
Max. 1200 × 510(Option)
|
||
|
Dimension(L.D.H)
|
1650×1690×1458
|
1650×1680×1530
|
1650×1680×1458
|
||
|
Mass(Kg)
|
Approx. 1820
|
Approx. 1655
|
Approx. 1600
|
||
