Quick Details
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLMA
-
Year:
-
2023
-
Power (kW):
-
22
-
Weight (KG):
-
8000
-
Product name:
-
Mandrel Pipe Bender
-
Keyword:
-
China Pipe Bending Machine
-
Usage:
-
Pipe Tube Bending
-
Model:
-
DW-130NC
-
Function:
-
Pipe Tube Mandrel Bending
-
Control:
-
PLC---Mitsubishi
-
Processing Types:
-
Cold Forming
-
Color:
-
Customer's Request
-
Material:
-
Pipe Tube
Quick Details
-
Machine Type:
-
NC
-
Bending Radius (mm):
-
10 - 520
-
Max. Bending Angle (Deg):
-
190
-
Bending Precision (Deg):
-
0.1
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
BLMA
-
Year:
-
2023
-
Power (kW):
-
22
-
Weight (KG):
-
8000
-
Product name:
-
Mandrel Pipe Bender
-
Keyword:
-
China Pipe Bending Machine
-
Usage:
-
Pipe Tube Bending
-
Model:
-
DW-130NC
-
Function:
-
Pipe Tube Mandrel Bending
-
Control:
-
PLC---Mitsubishi
-
Processing Types:
-
Cold Forming
-
Color:
-
Customer's Request
-
Material:
-
Pipe Tube

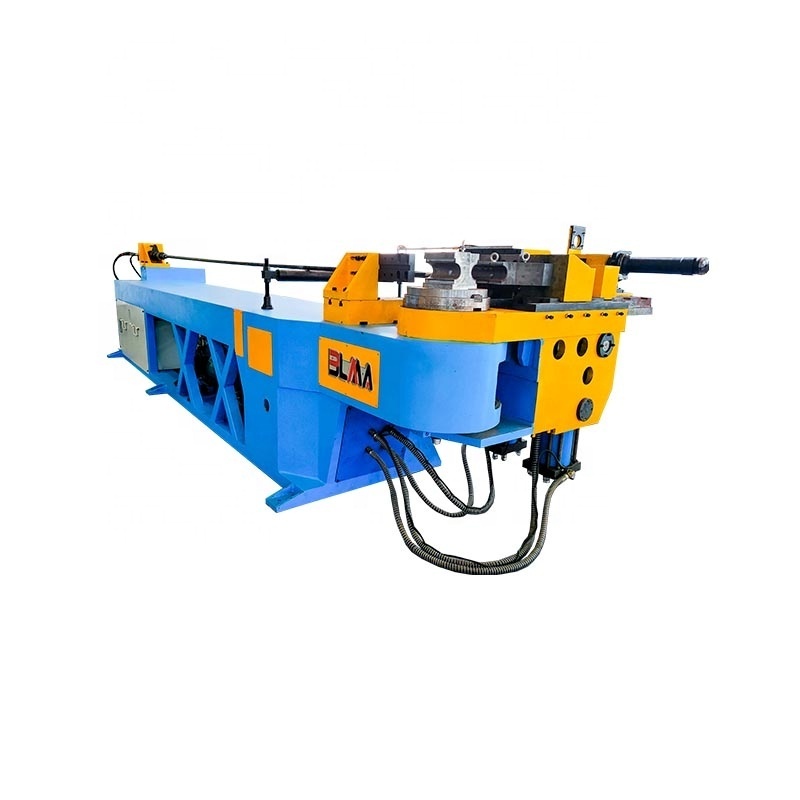

HYDRAULIC NC PIPE BENDING MACHINE
The NC series pipe bending machine equipped with NC controller. It combines easy-to-use operation with high bending accuracy and cost effectiveness. It is the practical semi-automatic solution for small to medium productions. The machine is suitable for various materials such as steel, stainless steel, aluminum and copper.
Products Description
1. Large and medium-sized pipe bending machine with boosting design, can solve the trouble of big radius, big angle and tin bending pipe.
2. Adopting touched operation panel by single chip computer control man-machine conversation operation, very convenient.
3. The angle of bending uses encoder tracking and give a feedback with a high bending precision.
4. With automatic counting and power-off memory function.
5. Equipped with water cooling system to ensure the stability of the machine for a long time.
Bending Moulds
Bending Samples and Application
Our pipe bending machine machine is very suitable for many spatial angles and high requirement of precision, like oil tube of car, air conditional tube, frame of bicycle and motorcycle, indoor and outdoor physical equipment, wheelbarrow, bed frame, chairs and etc.
Product Paramenters
We have different model pipe bending machine. Please give us your pipe outer diameter, pipe thickness, pipe material and bending radius, then we will recommend you the suitable model.
|
Model
|
DW38NC
|
DW50NC
|
DW63NC
|
DW75NC
|
|
Max capacity
|
φ38x2mm
|
φ50x3mm
|
φ63x4mm
|
φ75x4mm
|
|
Max bending radius
|
R260mm
|
R350mm
|
R350mm
|
R400mm
|
|
Min bending radius
|
R≥1.5OD
|
R≥1.5OD
|
R≥1.5OD
|
R≥1.5OD
|
|
Max bending angle
|
190°
|
190°
|
190°
|
190°
|
|
Standard core length
|
1600mm
|
2200mm
|
2600mm
|
2800mm
|
|
Number of pipe bending
|
16
|
16
|
16
|
16
|
|
Can store part number
|
16x16
|
16x16
|
16x16
|
16x16
|
|
Oil-pressure motor power
|
4KW
|
5.5KW
|
5.5KW
|
7.5KW
|
|
Max. system pressure
|
12Mpa
|
12Mpa
|
12Mpa
|
12Mpa
|
|
Fuel tank volume
|
110L
|
150L
|
220L
|
250L
|
|
Dimension (mm)
|
2600x600x1000
|
3000x700x1000
|
3200x750x1100
|
4000x1000x1100
|
|
Machine weight
|
750kgs
|
1220kgs
|
1500kgs
|
2000kgs
|
|
Model
|
DW89NC
|
DW114NC
|
DW130NC
|
DW168NC
|
|
Max capacity
|
φ89x6mm
|
φ114x8mm
|
φ130x8mm
|
φ168x14mm
|
|
Max bending radius
|
R450mm
|
R520mm
|
R520mm
|
R750mm
|
|
Min bending radius
|
R≥1.5OD
|
R≥1.5OD
|
R≥1.5OD
|
R≥1.5OD
|
|
Max bending angle
|
190°
|
190°
|
190°
|
190°
|
|
Standard core length
|
3500mm
|
4500mm
|
4500mm
|
5000mm
|
|
Number of pipe bending
|
16
|
16
|
16
|
16
|
|
Can store part number
|
16x16
|
16x16
|
16x16
|
16x16
|
|
Motor power
|
11KW
|
22KW
|
22KW
|
22KW
|
|
Max system pressure
|
14Mpa
|
14Mpa
|
14Mpa
|
16Mpa
|
|
Fuel tank volume
|
260L
|
350L
|
400L
|
650L
|
|
Dimension (mm)
|
4300x1300x1200
|
5700x1300x1300
|
5700x1600x1300
|
7100x1800x1500
|
|
Machine weight
|
3500kgs
|
7000kgs
|
8000kgs
|
12000kgs
|
