Quick Details
-
Brand Name:
-
MLG
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5350*1300*1300mm
-
Weight (KG):
-
3200
-
Power (kW):
-
4KW/5.5kw/7.5kw
-
Product name:
-
Grinding Machine
-
Application:
-
Grinding Knife
-
Name:
-
Grinder Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Knife Surface Grinding
-
Keywords:
-
Blade Shapening Machine
-
Machine Size:
-
3800*1200*1200mm
-
Adjustable angle of worktable:
-
14m/min
-
Wheel size:
-
200*100*32mm (optional)
Quick Details
-
Wheel Size(mm):
-
200*100*32mm
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MLG
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
5350*1300*1300mm
-
Weight (KG):
-
3200
-
Power (kW):
-
4KW/5.5kw/7.5kw
-
Product name:
-
Grinding Machine
-
Application:
-
Grinding Knife
-
Name:
-
Grinder Machine
-
After-sales Service Provided:
-
Online Support
-
Usage:
-
Knife Surface Grinding
-
Keywords:
-
Blade Shapening Machine
-
Machine Size:
-
3800*1200*1200mm
-
Adjustable angle of worktable:
-
14m/min
-
Wheel size:
-
200*100*32mm (optional)
Product Parameter
|
Model
|
5321
|
5322
|
5323
|
|
Maximum grinding length (mm)
|
1500
|
3000
|
3500
|
|
Electromagnetic sucker width (mm)
|
180
|
180
|
180
|
|
Grinding wheel speed (m/s)
|
15
|
15
|
15
|
|
Slide speed (m/s)
|
4-25m
|
4-25m
|
4-25m
|
|
Wheel size (mm)
|
200x100x32
|
200x100x32
|
200x100x32
|
|
Grinding motor power (kw)
|
4
|
4
|
4
|
|
Angle range of table
|
±90°
|
±90°
|
±90°
|
|
Grinding angle range
|
±30°
|
±30°
|
±30°
|
|
Machine weight (kg)
|
2100
|
2100
|
2100
|
|
Overall dimensions (mm)
|
3200×1200×1300
|
4900×1200×1300
|
5600×1200×1300
|
|
Power
|
22kw
|
18.5kw
|
18.5kw
|
|
Thickness of steel pipe
|
45mm,30mm,20mm
|
50mm,30mm,20mm
|
45mm,30mm,20mm
|

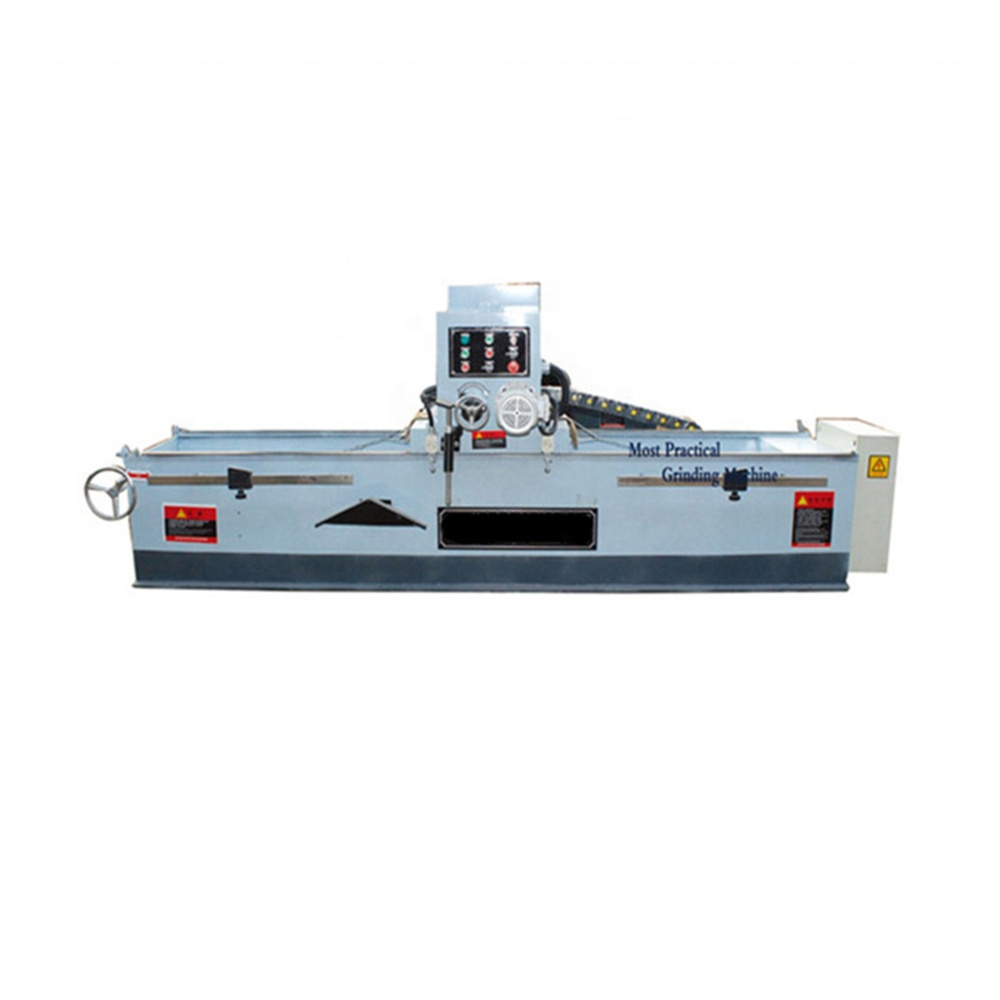

Available with grinding lengths ranging from 1500 mm to 3100 mm, or longer for special grinding purposes. Blade grinding machine features a heavy-duty reinforced machine base which gives the maximum stability.PLC controls the carriage movement during the various stages of the working cycle.
We can design and manufacture any size according to users’ requirements.
Welcome inquiry with details about your product plan.
Welcome inquiry with details about your product plan.
