Quick Details
-
Product Name:
-
Digital Pressure Gauge
-
Accuracy:
-
±0.02%FS, ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
-
Connection:
-
M20X1.5 or NPT or BSP Male
-
Pressure range:
-
(-1~2500)bar
-
Pressure Units:
-
11 different optional pressure units available
-
Communication:
-
RS232 interface
-
Storage:
-
Storage 40 files,40 data per file
-
Dimension:
-
Header 120*45mm
-
Net Weight:
-
0.7KG
-
Operating Temperature:
-
(0~50)℃
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SPMK
-
Model Number:
-
SPMK700
-
Product Name:
-
Digital Pressure Gauge
-
Accuracy:
-
±0.02%FS, ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
-
Connection:
-
M20X1.5 or NPT or BSP Male
-
Pressure range:
-
(-1~2500)bar
-
Pressure Units:
-
11 different optional pressure units available
-
Communication:
-
RS232 interface
-
Storage:
-
Storage 40 files,40 data per file
-
Dimension:
-
Header 120*45mm
-
Net Weight:
-
0.7KG
-
Operating Temperature:
-
(0~50)℃
Product Description

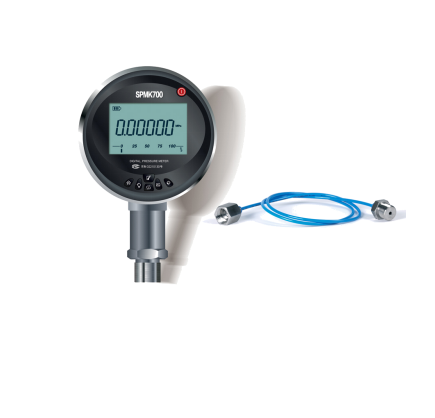

Test Pressure Gauge LED Display Digital Differential Pressure Gauge
The digital pressure test gauge SPMK700 offers a complete pressure gauge with calibration capabilities. With optional accuracy and large 6 digit resolution, this gauge can be used in critical industrial applications where precision is most important. It can
display percent of range, pressure swings or alarm set points. This pressure gauge comes complete with 11 selectable pressure
units, backlight and zeroing capability.
display percent of range, pressure swings or alarm set points. This pressure gauge comes complete with 11 selectable pressure
units, backlight and zeroing capability.
Specification
|
Item
|
Value
|
|
Certification
|
CE
|
|
Place of Origin
|
Beijing,China
|
|
Brand Name
|
SPMK
|
|
Model Number
|
SPMK700
|
|
Product Name
|
Digital Pressure Gauge
|
|
Type
|
Pressure Gauge
|
|
Accuracy
|
±0.02%FS, ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
|
|
Connection
|
M20X1.5 or NPT or BSP Male
|
|
Pressure range
|
(-1~2500)bar
|
|
Media
|
Clean and dry and no-corrosive gas or liquid which is compatible with 316SS
|
|
Pressure Units
|
11 different optional pressure units available
|
|
Communication
|
RS232 interface
|
|
Storage
|
Storage 40 files,40 data per file
|
|
Dimension
|
Header 120*45mm
|
|
Net Weight
|
0.7KG
|
Feature
▲
Large screen segment code wide viewing Angle LCD display
▲
Digital calibration without hardware adjustment
▲
Small size, simple operation, easy to use in field calibration
▲
With storage and peak record function
▲
All components are strictly screened with high reliability
▲
A variety of pressure units available
▲
6 digit display, the digit can be set by oneself
