- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
8s-20
-
Product Name:
-

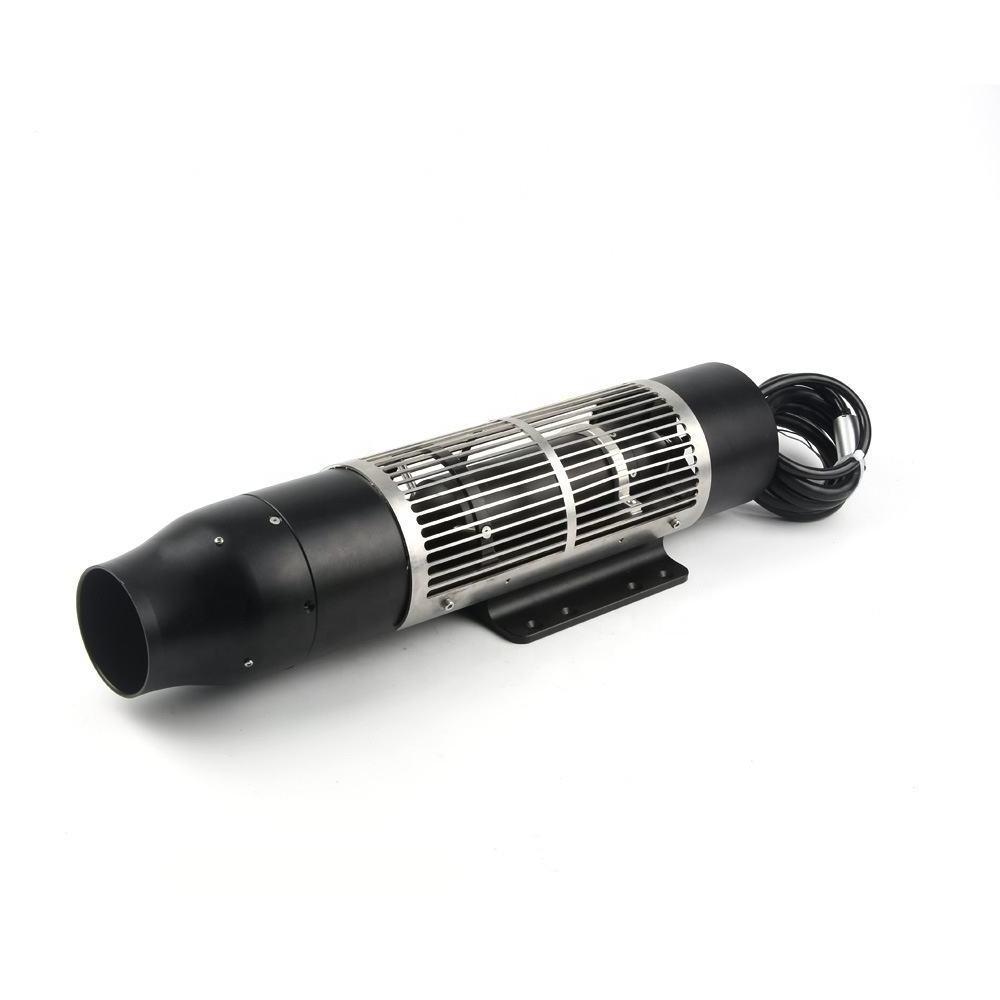

Underwater propulsion machine
-
Application:
-
Kayaks, power paddleboards, surfboards, manned boats
-
Motor type:
-
All water proof construction
-
Keywords:
-
Underwater motor
-
Color:
-
ferrous
-
Product features:
-
safety cover
-
Blade outside diameter/material:
-
metal
-
Rated Voltage:
-
33.6v
-
Size:
-
509*105MM
-
Rated Speed:
-
6000rpm
Quick Details
-
Speed(RPM):
-
6000rpm
-
Continuous Current(A):
-
55A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SANJING MOT
-
Model Number:
-
8s-20
-
Product Name:
-
Underwater propulsion machine
-
Application:
-
Kayaks, power paddleboards, surfboards, manned boats
-
Motor type:
-
All water proof construction
-
Keywords:
-
Underwater motor
-
Color:
-
ferrous
-
Product features:
-
safety cover
-
Blade outside diameter/material:
-
metal
-
Rated Voltage:
-
33.6v
-
Size:
-
509*105MM
-
Rated Speed:
-
6000rpm
Product characteristics:
1, the motor body is made of 6061 aluminium, CNC precision machining; especially the propeller is made of CNC computer gong, dynamic balance and concentricity can reach high precision. It is not die-casting. 2.The spray pump design of the motor body effectively protects personal safety, and at the same time, it can stop the underwater water plants and debris, and improve the durability. 3.The motor can use 24V, 33V, voltage according to the user's voltage requirements, to meet the needs of different thrust.
Application Scenario:
1, Can be used in fresh water, sea water, sewage and other harsh environment, the internal fuselage adopts maintenance free structure, there is no need to worry about the salt crystallization stuck after the use of sea water environment.
2, Can be used in kayaks, power paddle board, surfboard, manned ship, unmanned ship, environmental monitoring ship, electric life buoy and other equipment.
3, Can be used in fish pond oxygenation, sewage circulation and other environments.
1, the motor body is made of 6061 aluminium, CNC precision machining; especially the propeller is made of CNC computer gong, dynamic balance and concentricity can reach high precision. It is not die-casting. 2.The spray pump design of the motor body effectively protects personal safety, and at the same time, it can stop the underwater water plants and debris, and improve the durability. 3.The motor can use 24V, 33V, voltage according to the user's voltage requirements, to meet the needs of different thrust.
Application Scenario:
1, Can be used in fresh water, sea water, sewage and other harsh environment, the internal fuselage adopts maintenance free structure, there is no need to worry about the salt crystallization stuck after the use of sea water environment.
2, Can be used in kayaks, power paddle board, surfboard, manned ship, unmanned ship, environmental monitoring ship, electric life buoy and other equipment.
3, Can be used in fish pond oxygenation, sewage circulation and other environments.
|
Parameters
|
|
|
|
Motor type
|
8s-20
|
|
|
Product Features
|
Pump spray design for increased safety
|
|
|
Propeller
material
|
Metal propeller
|
|
|
Motor outer diameter
|
105mm
|
|
|
Thruster length
|
509mm
|
|
|
Maximum thrust
|
22kg
|
|
|
Working voltage
|
33.6V
|
|
|
Max. current
|
40A
|
|
|
Max. speed (no load)
|
6000rpm
|
|
Note！
1. The above parameters and data are our optimal match after testing, if you have your own parameter requirements you can contact me for consultation and customization.
2. The product includes motor, mounting bracket and propeller. If you do not need a propeller or also need other propellers can contact me to modify the price.
3. We have multiple styles for each motor, including built-in ESC, side exit line, etc. You can consult me for details.
4. each motor we have a suitable propeller, ESC and remote control, if you also need them can contact us for your recommendation.
