Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laser Max
-
Weight (KG):
-
4000 KG
-
Warranty of core components:
-
3Year
-
Core Components:
-
Other
-
Mode of Operation:
-
Fiber
-
Configuration:
-
Fiber
-
Products handled:
-
Metal
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Laser power:
-
500W / 1000W / 2000W / 3000W
-
Laser source:
-
MAX IPG RAYCUS
-
Control system:
-
Cypcut Control System
-
Driving system:
-
Servo Motor
-
Working table:
-
Blade Platform
-
Transmission:
-
HIWIN Guide Rails
-
Working Voltage:
-
220V/380V 50Hz/60Hz
-
Cutting head:
-
RAY TOOLS
-
Keyword:
-
Fiber Laser Cutting Machiens
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-40000mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Area:
-
3000*1500mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
Cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laser Max
-
Weight (KG):
-
4000 KG
-
Warranty of core components:
-
3Year
-
Core Components:
-
Other
-
Mode of Operation:
-
Fiber
-
Configuration:
-
Fiber
-
Products handled:
-
Metal
-
Product name:
-
Fiber Laser Metal Cutting Machine
-
Laser power:
-
500W / 1000W / 2000W / 3000W
-
Laser source:
-
MAX IPG RAYCUS
-
Control system:
-
Cypcut Control System
-
Driving system:
-
Servo Motor
-
Working table:
-
Blade Platform
-
Transmission:
-
HIWIN Guide Rails
-
Working Voltage:
-
220V/380V 50Hz/60Hz
-
Cutting head:
-
RAY TOOLS
-
Keyword:
-
Fiber Laser Cutting Machiens
Bulk purchases to obtain greater support from suppliers, lower purchase costs for the same product, and better after-sales policies.
Description
LMC1530 fiber laser cutting machine from Laser Max used to cut metal materials special design
LMC : 1000W 2000W 3000W 4000W 6000W
LMC : 1000W 2000W 3000W 4000W 6000W
1.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
2.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
3.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
4.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
5.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.

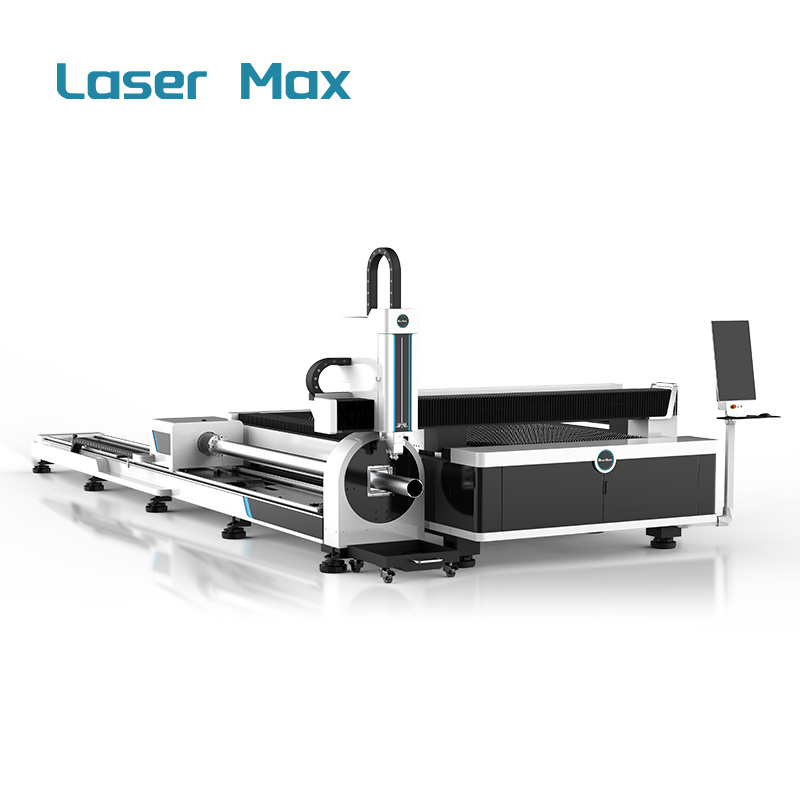

The LM1530C laser cutting machine is equipped with an electric chuck that automatically adjusts the center for stable tension. Tube fittings with different specifications and sizes are perfectly matched to meet complex production requirements. The quick response to formed tubes greatly improves cutting performance.
Machine Features：
1. High-performance laser device associated with stable operation system enables optimal cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could ut mental in various materials and realize excellent and stable cutting effects.
2. Perfect cooling, lubrication and dedusting systems ensure stable, efficient and durable performance of the whole machine.
3. Single countertop make plates loading and unloading available during cutting, which improves the processing eficiency.
4. Large-size closed enclosure improves dedusting effects and avoids optical pollution.
5. Automatic height-adjustment performance keeps constant focal length and stable cutting quality.
6. Gantry structure and inblock aluminum cast cross beam make the device highly rigid, stable and antiknock.
7. It could ut mental in various materials and realize excellent and stable cutting effects.
|
Machine Model
|
LM3015 LM4020 LM6025
|
LM4020
|
LM6025
|
|
laser power
|
1000W 2000W 3000W 4000W 6000W 8000W(Optional)
|
|
|
|
Dimensions
|
7800*3580*2150mm 10050*4160*2160mm 14050*4657*2160mm
|
10750*3350*2310mm
|
15000*4018*2755mm
|
|
working area
|
3000mm x 1500mm 4000mm*2000mm 6000mm*2500mm
|
4000mm*2000mm
|
6000mm*2500mm
|
|
Repeat positioning accuracy
|
±0.02mm
|
|
|
|
Max speed
|
120m/min
|
|
|
|
Max acceleration
|
1.5G
|
|
|
|
Voltage and frequency
|
380V 50Hz/60Hz
|
|
|
PRODUCT DETAILS

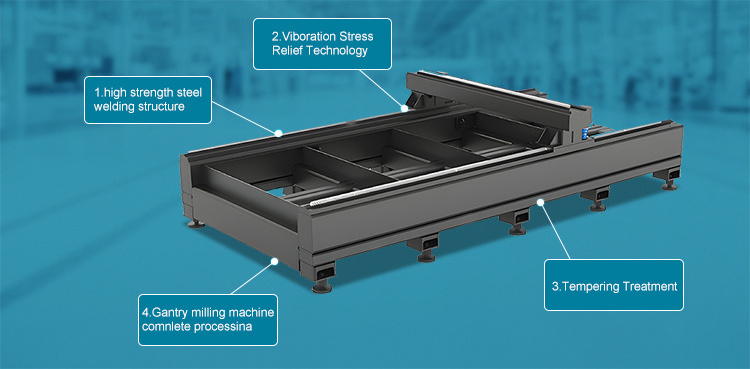

Industrial Machine bed
A solid bed has high stability .It is unmatched by other materials and structures. The use of graphite cast iron as a raw material keeps the precision of the machine tool for a long time and remains unchanged for 50 years.
Laser Source
---Brand:MAX RAYCUS JPT IPG
---100000hours life time
---e stable，cost-efficient
---Free maintenance
control system
brand ：CYPCUT
Details:edge seeking function and flying cutting function ，intelligent typesetting ect
supported Format:AI,BMP,DST，DWG，DXF,DXP,LAS，PLT,NC,GBX etc...
Details:edge seeking function and flying cutting function ，intelligent typesetting ect
supported Format:AI,BMP,DST，DWG，DXF,DXP,LAS，PLT,NC,GBX etc...
servo motor
brand ：japan fuji
details:
--X axis：one set 850w Japan Fuji servo motor and driver.
--Y axis：Two set 850w Japan Fuji servo motor and driver
--Z axis:one set 400w Japan Fuji servo motor and driver
details:
--X axis：one set 850w Japan Fuji servo motor and driver.
--Y axis：Two set 850w Japan Fuji servo motor and driver
--Z axis:one set 400w Japan Fuji servo motor and driver
SQUARE RAIL
brand :Taiwan HIWIN
Advantage:Low noise,wear-resistant,smooth to keep fast Moving speed of laser head
Details:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
Advantage:Low noise,wear-resistant,smooth to keep fast Moving speed of laser head
Details:30mm width and 165 four pieces stock on every table to decrease the pressure of rail
water cooling system:
brand:1000w S&A chiller
Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them around certain temperature and
guarantee their normally work
Details:Dual cooling funtion,Hot water for laser head and cool water for laser source to keep them around certain temperature and
guarantee their normally work
SAMPLES DISPLAY
Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel , Mild Steel Plate(tube), Carbon Steel, Alloy
Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Steel Plate, Spring Steel, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Different cutting thickness depends on different laser power selection in sheet metal laser cutting machine.
Product Applications
Metal cutting, locomotive manufacturing, machinery industry, household appliance manufacturing, hardware tool processing, decorative advertising and other machinery manufacturing and processing industries
Partial certificate display
We have passed the international certifications such as CE certification, ISO9001 quality management system certification, Alibaba SGS enterprise certification and design patents.Strictly control all aspects of incoming materials, processing, assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.
Laser Max, a high-tech enterprise specializing in R&D, production and sales, has more than 10 years of experience in the laser industry. Its products mainly cover fiber laser cutting machine, laser engraving machine,laser marking machine,and laser welding machine. Our factory covers an area of 8000 square meters, and contains nearly 100 employees, which maximally shorten product cycle time and guarantee the delivery of products. Our products are exported to more than 160 countries and regions around Asia, Europe, Africa and Oceania. In addition, we have more than 10 professional after-sales personnel, providing 24-hour online and offline technical services in 12 languages. In a word, we are committed to helping customers improve their economic efficiency and providing comprehensive laser application solutions for users around the world.
Laser Max, a high-tech enterprise specializing in R&D, production and sales, has more than 10 years of experience in the laser industry. Its products mainly cover fiber laser cutting machine, laser engraving machine,laser marking machine,and laser welding machine. Our factory covers an area of 8000 square meters, and contains nearly 100 employees, which maximally shorten product cycle time and guarantee the delivery of products. Our products are exported to more than 160 countries and regions around Asia, Europe, Africa and Oceania. In addition, we have more than 10 professional after-sales personnel, providing 24-hour online and offline technical services in 12 languages. In a word, we are committed to helping customers improve their economic efficiency and providing comprehensive laser application solutions for users around the world.

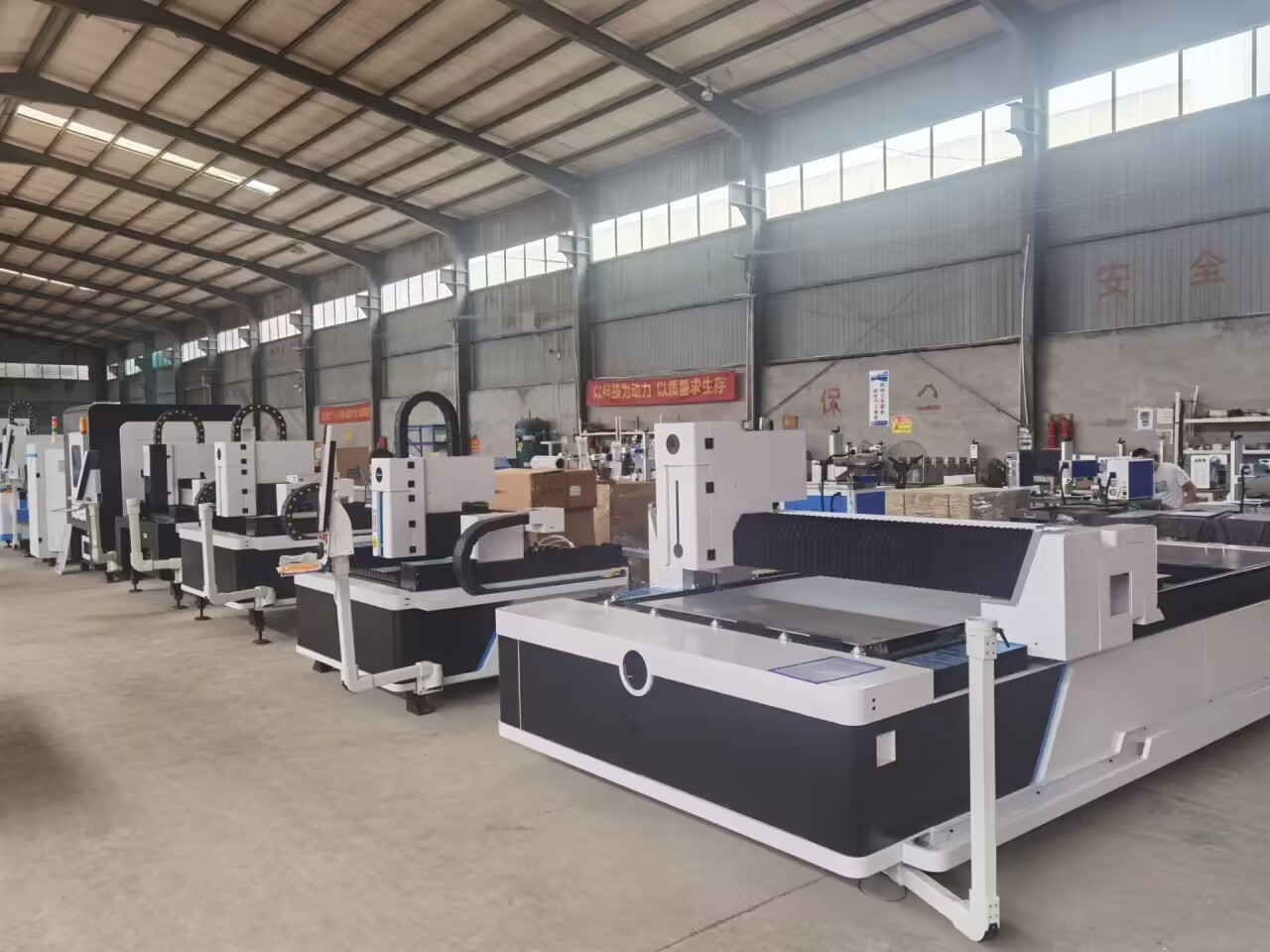

COMPANY PROFILE
Jinan Laser Max Machinery Co.,Ltd
Laser Max found in 2013,is one high-tech enterprise with focus on developing,manufacturing and servicing for laser equipment and system
2013 Jinan was established
2015 developed rapidly , product sales exceeded 800 sets
2016 Laser Cutting Division was established
2018 over 2000 sets of machines been sold, beeing one of the well-known manufacturers of laser equipment in the world
2020 laser cutting factory which size over 8000 square meters was established in Jinan. Sales keeping growth rapidly, sales reach 120 million RMB.
2021, independently developed and produced the first 12,000 watt high-power laser cutting machine
2022, more than 10sets 12000W high-power laser cutting machines and 5sets 20000w laser cutting machines were delivered Laser Max with a decade of cumulative laser equipment design and manufacturing expertise
Laser Max focus on laser cutting machine, laser welding machine, laser cleaning machine, laser marking machines, customized and other series of more than 50 kinds of industry specific laser solutions.Having long-term with United
States,Russia,Mexico,Britain,Germany,Brazil,Korea,Turkey,India,Indonesia,Saudi Arabia and more than 50 countries' company in R&D cooperation
Bulk purchases to obtain greater support from suppliers, lower purchase costs for the same product, and better after-sales policies.
Laser Max is willing to share our advantages and resources with partners, and warmly welcome to cooperate with us
2013 Jinan was established
2015 developed rapidly , product sales exceeded 800 sets
2016 Laser Cutting Division was established
2018 over 2000 sets of machines been sold, beeing one of the well-known manufacturers of laser equipment in the world
2020 laser cutting factory which size over 8000 square meters was established in Jinan. Sales keeping growth rapidly, sales reach 120 million RMB.
2021, independently developed and produced the first 12,000 watt high-power laser cutting machine
2022, more than 10sets 12000W high-power laser cutting machines and 5sets 20000w laser cutting machines were delivered Laser Max with a decade of cumulative laser equipment design and manufacturing expertise
Laser Max focus on laser cutting machine, laser welding machine, laser cleaning machine, laser marking machines, customized and other series of more than 50 kinds of industry specific laser solutions.Having long-term with United
States,Russia,Mexico,Britain,Germany,Brazil,Korea,Turkey,India,Indonesia,Saudi Arabia and more than 50 countries' company in R&D cooperation
Bulk purchases to obtain greater support from suppliers, lower purchase costs for the same product, and better after-sales policies.
Laser Max is willing to share our advantages and resources with partners, and warmly welcome to cooperate with us
After-sell Service
What kind of support you can get from LASER MAX？
一.
3 year warranty
，Provide a full range of technical support for life.
二. From monday to sunday 9am to 22pm. Experienced technician to guarantee lifetime online support（by whatsapp /skyper /wechat /email）. So there is no need to worry about technical support due to time difference.
三. Support local after-sales service. up to 2022, we have offered onsite to these countries and areas：
Canada, Mexico, the United States, Ukraine, Russia, Italy, Poland, Spain, Brazil, Indonesia, India, Turkey, Thailand, Vietnam, Australia,etc.
.
Warranty and service
Three years warranty for machine.
English technical to door service. English manual and Video CD for machine using and maintenance. We offer free training in our factory, Free accessories :Software ,manual, book, cd videos, USBcontrol 1. Pre-sales service A. Free sample making For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy. B. Progressing Solution Design According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer. 2. After-sales service: Training to install(3options): A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting. Training Time: 1-10 working days. What's the max. cutting thickness? Cutting thickness is related to laser power. 300W: 1.5mm stainless steel, 4mm carbon steel 500W: 3mm stainless steel, 6mm carbon steel 1000W: 5mm stainless steel, 12mm carbon steel 2000W: 10mm stainless steel, 18mm carbon steel Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass and other high reflection sheet metal.
PACKAGE AND DELIVERY
1. Cleaning the fiber laser cutting machine.
2. Wrap all the laser cutting machine parts with bubble film and plastic film.
3. Fix the machine with iron frame.
4. Wooden box sealing the fumigated plywood portection is finished.
5. Forklift the packed machine to the container.
6. Choose the optimal routes and transportation mode according to the distance.
(1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
(2)Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
(2)Shipping:We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide train transport, especially to Russia, Ukraine and other inland countries.
FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have . At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
Q: I don’t know which one is suitable for me ?
A :just tell us below information 1) Max work size:choose most suitable model. 2) Materials and Cutting thickness:Power of laser generator. 3) Business industries:We sell a lot and give advice on this business line.
Q:Why the machine price not include fiber source and tube parts ？
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .
Q: How do your factory do regarding quality control?
A: Quality is priority. Each laser machine will be tested by 24 items.After all the 24 items passed, then our QC do 48~72 hours reliability test. Our laser machines has gained CE.
Q: I knew nothing about this machine, what kind of machine i should choose?
A:Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
A:Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.
Q: If some problems happen to this machine during warranty period, what should I do?
A：We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
A：We will supply free parts during machine warranty period if machine have some problems. While we alsosupply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
