Quick Details
-
Model Number:
-
UP-ATYT0013
-
Color:
-
black
-
Certification:
-
CE FCC RoHs
Quick Details
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
upsztec
-
Model Number:
-
UP-ATYT0013
-
Color:
-
black
-
Certification:
-
CE FCC RoHs

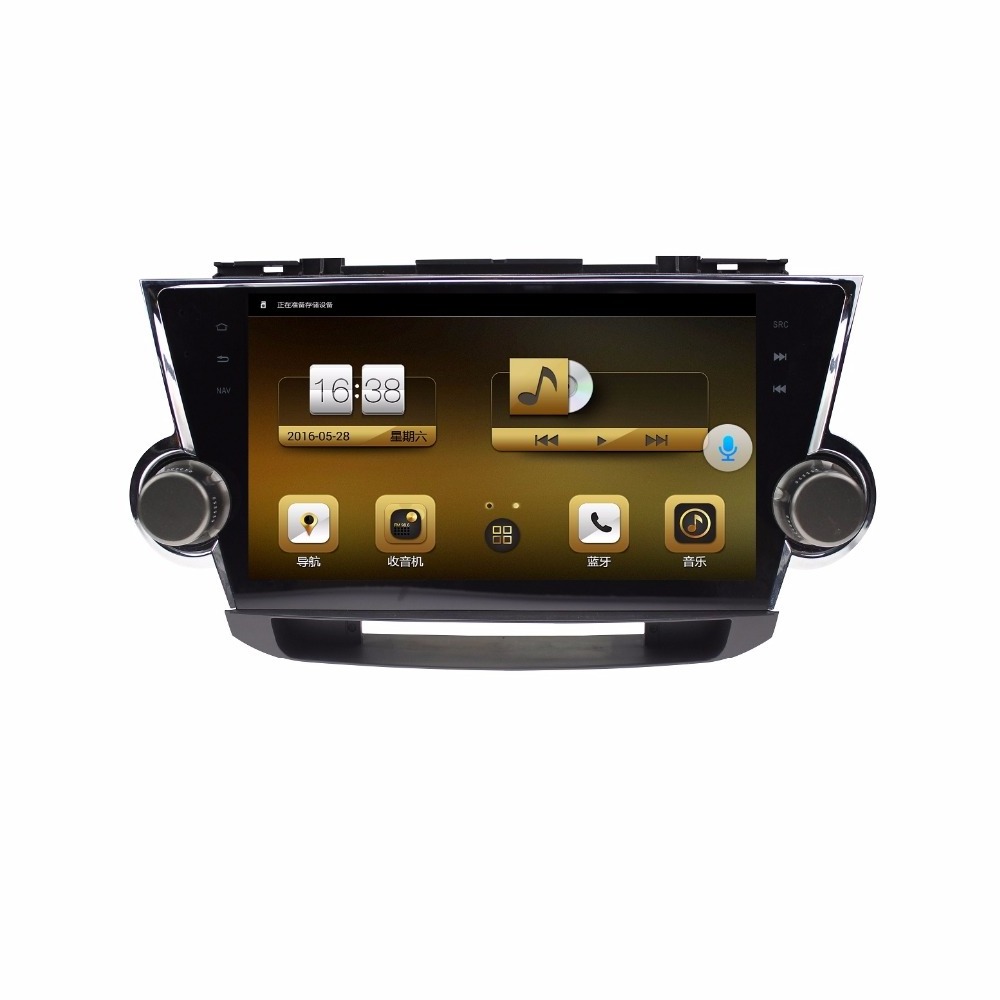

10.1" Quad Core Full Touch Screen Android Car GPS Multimedia System Radio Player For Toyota Highlander
Specification :
| Android Special Car DVD Configuration | |
| System | |
| OS | 10 |
| Solution | Rockchip RK3188 RKPX3 |
| CPU Processor: | RK3188 Cortex-A9 1.6GHz 4 Cores |
| Memory/RAM | 1GB DDR3 |
| Flash | 16GB iNand Flash |
| Power IC Model | ACT8846QM |
| Processor frequency | 1.6GHz |
| OSD Language | Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language, Spanish, Italian,Indonesia, Korean,Turkish,Dutch,etc |
|
Display
|
|
| Screen Type | Capacitive screen |
| Touch Screen | YES |
| Screen brand | CPT |
| Screen Resolution | 800*480/1024*600 |
| Display Type | LCD |
| Display Brightness | 350 cd/m2 |
| TFT drive | RK3188 |
| Background | Customized |
|
Radio
|
|
| Radio tuner Model | TDQ-230V-186/TDQ-130V-66C |
| AM/FM tuner | 6686/TEF6621 |
| Station preset qty | AM:6 FM: 18 |
| Support RDS | YES/NO |
| Noise Sensitivity | 2dB-7dB, SNR:65dB |
| Radio response bandwidth |
AM:522-1620KHz(China), 522-1620(Europe), 530-1710(America),522-1620(Russian)
FM:87.5-108MKz(China),87.5-108MKz(Europe),87.5-107.9MKz(America),65-108MHz(Russian) |
| DVD | Remark: only for small screen NO DVD |
| Video Output System | CVBS format |
| Media type | DVD/MP4/VCD/SVCD/CD/MP3/CD-R-RW/DIVX/ASF/WMV/AVI |
| Signal-To-Noise Ratio | 85 dB |
| DVD loader mechanism | ASA (Sanyo) |
| DVD Pick up/lens | Sanyo SF-HD860C |
| DVD Decoder/Solution | MTK |
| Virtual six disc | Yes (but still in adjustment) |
| DVD language | Chinese, English, French, German, Russian, Portuguese, Arabic, Thai language |
| DVD Servo Drive | AMM5888S |
| DVD Motor | ASA (MABUCHI RF-300EA-1D390) |
|
GPS
|
|
| GPS Solution | Hard parse |
| GPS operation system | Android 4.4.4 |
| GPS resolution | 800*480/1024*600 |
| baud | 9600bps |
| port | com3 |
| Map Version | Sygic,igo,Papago,AutoNavi,Careland |
| GPS card memory | Support SD/SDHC(Max for SDHC 4GB~32GB) |
|
Amplifier
|
|
| Amplifier max output power / channel qty | 45 Watts x 4 |
| EQ mode | Classic, Rock, Pop, Jazz, Normal |
| Power Amplifier IC | TDA7388 |
| audio processor | AL5640 |
|
|
|
| Version Standard | 2.1+EDR standard,Compatible Version 3.0 |
| brand | -GOC-MD-806 |
| Stereo audio play/mute | YES |
| Built-in microphone/hands free | YES |
| Received Call | YES |
| Dialled/Rediall Call | YES |
| Missed Call | YES |
| Phone Book | Yes |
| Phone Connect | Support iPhone4s or hogher ,OS versions: IOS7-IOS8 |
|
WIFI
|
|
| Model: | NT-UM12BT |
| WIFI | Built-in |
| 3G | Support 3G WCDMA/CDMA2000 |
| Standard: | 802.11b/g/n,802.3,802.3u |
| Operation Range: | Up to 180 meters in open space |
| Security | WEP,TKIP,AES,WPA,WPA2 |
| Remote Control | |
| Remote control | Yes |
| Interface | |
| A/V Input | 2*channel audio in, 1*channel video in, 1 channel Camera input |
| A/V Output | 4*channel audio out , 1*channel video out, 1 channal Subwoofer out |
| USB/SD Card Port | USB/SD MAX:64G, 1 SD port , 1 USB port |
| USB 1.0 ; USB 2.0 | |
| Video type supporting by SD card | MP4 /ASF /WMV / AVI / DIVX / XVID |
|
Additional Features
|
|
| File Cut/Copy/Paste/Delete | YES |
| Application installtion | YES |
| Built-in Speaker | YES |
| Subwoofer Output | YES |
| Anti-Shock | YES |
| Rear View Camera | Support |
|
General
|
|
| Operation temperature | -20℃~70℃ |
| Storage temperature | -25℃~75℃ |
UI Interface
Functions display
