Quick Details
-
Coil Weight (T):
-
1 T
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Xintai
-
Voltage:
-
380V
-
Rated Power:
-
4KW
-
Dimension(L*W*H):
-
1500MM*1000MM*600MM
-
Weight:
-
1000KG, 1000kg
-
Year:
-
2020
-
Certification:
-
ISO9001, ISO9001
-
Name:
-
Slitting Machine
-
Usage:
-
Automatic Control Operation
-
Application:
-
stainless steel/copper strip/galvanized strip/aluminium strip
-
Function:
-
Stable
-
Type:
-
Automation
-
Color:
-
Customizable
-
Keyword:
-
strip slitting
Quick Details
-
Cutting Width (mm):
-
1 - 1000 mm
-
Material Thickness(mm):
-
0.05 - 0.6 mm
-
Cutting Speed(m/min):
-
0 - 80000 mm
-
Coil Weight (T):
-
1 T
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Xintai
-
Voltage:
-
380V
-
Rated Power:
-
4KW
-
Dimension(L*W*H):
-
1500MM*1000MM*600MM
-
Weight:
-
1000KG, 1000kg
-
Year:
-
2020
-
Certification:
-
ISO9001, ISO9001
-
Name:
-
Slitting Machine
-
Usage:
-
Automatic Control Operation
-
Application:
-
stainless steel/copper strip/galvanized strip/aluminium strip
-
Function:
-
Stable
-
Type:
-
Automation
-
Color:
-
Customizable
-
Keyword:
-
strip slitting
Baoji Xin Tai Precision Equipment Manufacturing CO., LTD
, built in 1995, mainly working on researching, development and production of electron, metallurgy and special grinding equipment. It Produces all kinds of equipment for slitting material used for electrolysis and capacitor, such as: aluminum foil, copper foil, metal foil, paper slitting, foil slitting, membrane cutting and metal bar material slitting. We hope to honestly cooperate with all friends all over the world and develop together.
Product Application
Precision Slitting machine XTF-220 is using to cut many different kinds of metal materials, such as stainless steel, copper strip, galvanized strip, aluminium strip, cold rolled and various metal strips etc.The equipment characteristics are operation convenient, high-quality slitting, high-using rate of material, and step-less adjustment of slitting speed.
|
Technical Parameters Of XTF220
|
|
|
|
Type
|
XTF220
|
|
|
Slitting zone thickness
|
0.05~0.6mm
|
|
|
Maximum feed width
|
<220 mm
|
|
|
Maximum Outer Diameter of Raw Materials
|
<600 mm
|
|
|
Raw material inner diameter
|
2800mm ~ 320mm (customizable)
|
|
|
Raw material weight
|
<400 kg
|
|
|
Operation direction of equipment
|
From right to left
|
|
|
Equipment speed
|
0-80 m/min
|
|
|
Equipment capacity
|
4KW
|
|
|
Equipment coverage
|
1500mm(L)*1000m(W)*600mm(H)
|
|
|
Equipment weight
|
1T
|
|
Main Features
1. This machine is suitable for longitudinal shearing of rolling metal strip. It has the characteristics of convenient operation, high cutting quality, high material utilization rate and stepless adjustment of cutting speed.
3. Equipment color: black and white (customizable)
4. Date of production: 20 days
5. Support overseas after-sales service

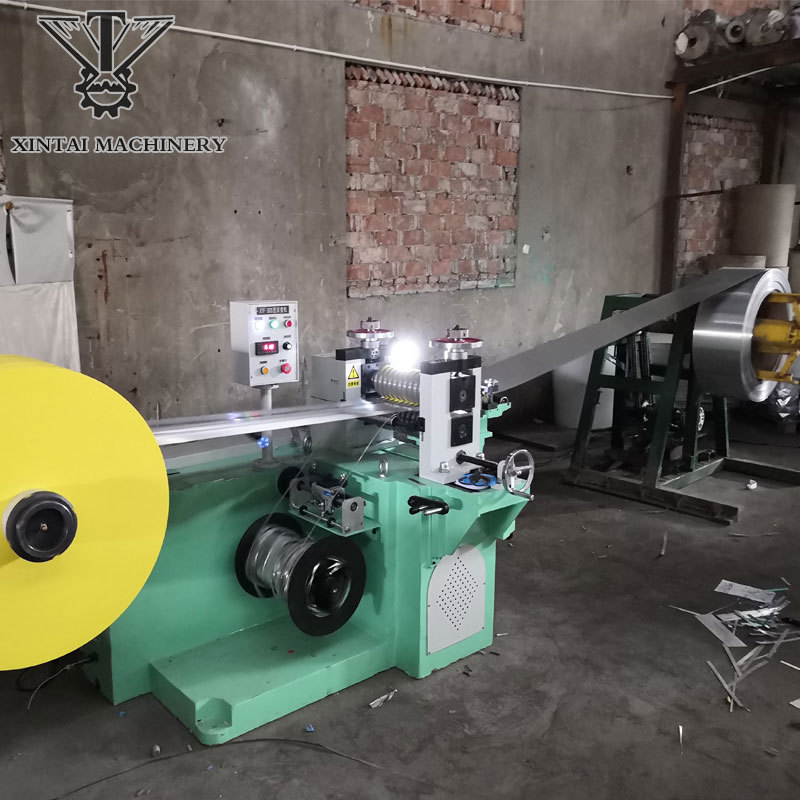

XTF-220 machine
These pictures are our XTF-220 machine, we provide machine with customers' request, the knife which we use is by our own.
Xintai Machinery has our stricked QC regulation will guarantee all of our machine passing the test before client's confirmation and shippment to oversea.
Pre-Sales Service
* 24 hours Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*24 hours online support and Video training.
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Q:Are you manufacturer?
A: Yes, we are manufacturers for high precision slitting machine producing, and we have our own technical team, and about 30000 sqm workshop, feel free to contact us for inhouse training and visiting. You are always welcome!
Q:What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details!
Q:What information will you need to make the proposal?
A: Coil weight, coil width, coil thickness, minimum strip width, maximum slitting quantity and your special requirements.
Q:What should I do to start a new business?
A: Please contact us immediately, we provide free pre-sales consultant service. Also Xintai Machinery are willing to help you with the detail training.
Q: Do you provide training and maintenance?
A: Yes. In order to your more efficiency for production, when the machine has arrived at the importer' s port. Our company will send engineers to installing the machine and responsible for training the worker of customer until they can operating the machine skillful. And also we will provide 24 hours support team for all of clients with video training and problem solving system. We also provide machine with English instructions including maintenance manual and operation manual.
Q:Why choose you? What is the difference between you and other Chinese supplier?
A: We have specialized in this area for over 30 years. Our slitting machines are exported to many countries in the world. You can get higher quality product & better professional service from Xintai Machinery with competitive price.
