Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
130*90*180cm
-
Weight:
-
400 KG
-
Power:
-
2.5
-
After-sales Service Provided:
-
Overseas third-party support available
-
Spindle number:
-
6 or customized
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or wool (alternative)
-
HS code:
-
9024.800000
-
Twisting range:
-
200-2000 twist/m
-
Drafting range:
-
Approx. 2~50
-
Fiber length:
-
22 ~ 42 mm or customized
-
Roller diameter:
-
28/25 mm
Quick Details
-
Marketing Type:
-
Hot Product 2023
-
Application:
-
ring spinning machine
-
Production Capacity:
-
1 5Sets/month
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
130*90*180cm
-
Weight:
-
400 KG
-
Power:
-
2.5
-
After-sales Service Provided:
-
Overseas third-party support available
-
Spindle number:
-
6 or customized
-
Certificate:
-
CO, CNAS
-
Fiber type:
-
Cotton or wool (alternative)
-
HS code:
-
9024.800000
-
Twisting range:
-
200-2000 twist/m
-
Drafting range:
-
Approx. 2~50
-
Fiber length:
-
22 ~ 42 mm or customized
-
Roller diameter:
-
28/25 mm

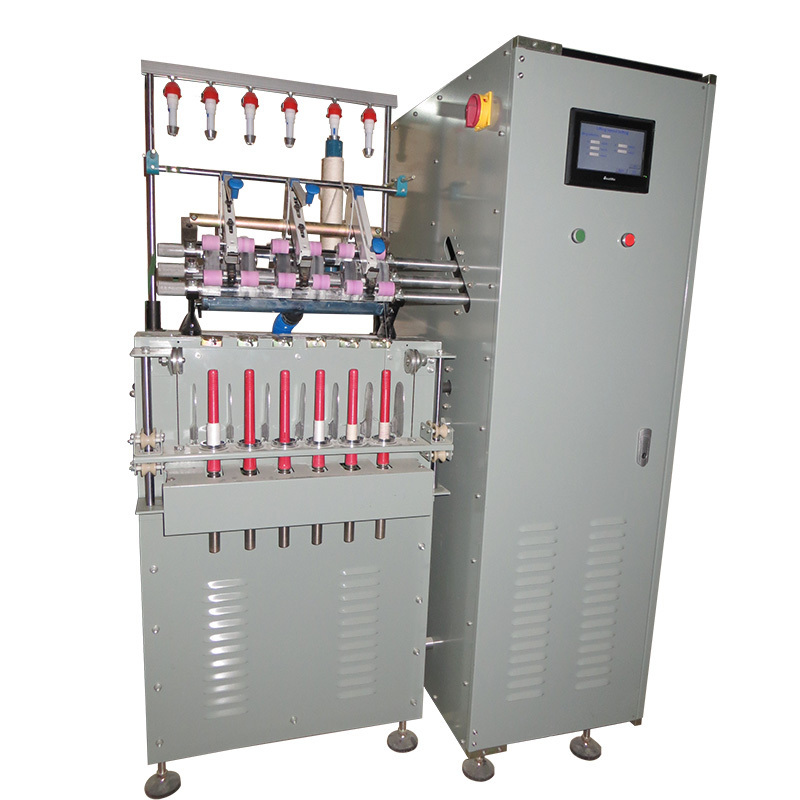

AT206 PLC Control Cotton Spinnning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert roving into yarn. And in the same time, impart strength to the yarn by inserting the necessary amount of twist and then winding the twisting yarn on bobbin or tube.
1. Imported frequency converter control, high efficiency.
2. Mini type machine, save researching cost and easy to operate and maintain
3.AT206 PLC Control Cotton Spinnning Machine Can perform four functions in one machine, open cotton bale, remove impurities, blend cotton and lapping.
4. AT206 PLC Control Cotton Spinnning Machine Can be used for cotton fiber or wool fiber (alternative)with different machine parts
|
Model |
AT206 PLC Control Cotton Spinnning Machine |
|
Spindle number |
6 |
|
Fiber type |
Cotton or wool (alternative) |
|
Twisting range |
50-250 twist/m |
|
Drafting range |
Approx. 2~50 |
|
Fiber length |
22 ~ 42 mm |
|
Output capacity |
0.25 ~ 1 kg per hour or customized |
|
Roller diameter |
Φ 28/25/25mm |
|
Ring diameter |
Φ38 ~ 45mm |
|
Ring spindle speed |
600rpm |
|
Spindle drive |
Z or S twist optional |
|
Power |
220V/380V, 50/60Hz, 550W |
|
Dimension |
1000*800*1600mm |
